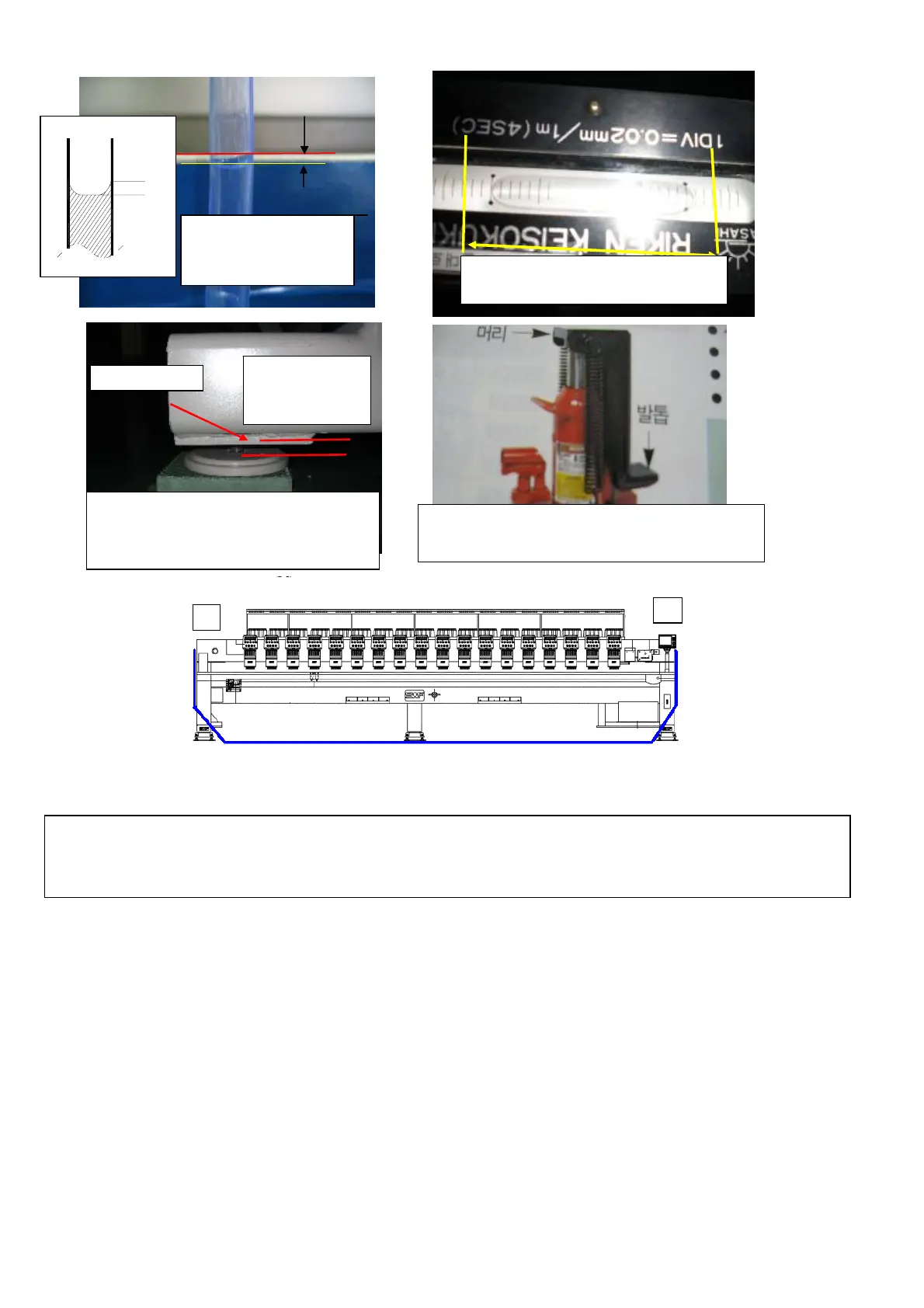

When leveling the water, Hex.Bolt will get a lot of loads, so,
put up the Beam Body with lifting tools for adjusting the
height
and then put down the Hex Bolt
When leveling the water, equaling the water(inside of hose) and Body side based on "A".
If the height of water is above the Body side, put up machines with lifting tools for leveling.
If the height of water is below the Body side, place the base "A" to "B" for leveling.
Level it less than 0.5mm
error scope for equaling the
height of "0" mark and Body
When leveling(F/R), within
tolerances
Install it bottom of the Leveling Base and Body
within 10MM,if the difference is big,
Add the iron plate for adjusting.
(Attach the picture of this in the report)
Height difference
within 10mm
Keep the space
1.5mm (minimum)
Leveling Base
"A"
"B"
X
O
Page 4 Of 17 (주)SUNSTAR SWF CS Center
