4 Assembly
(1) Install Y fixed frame
# Not for less than Y-Storke 1200mm model (Because it is not delivered as Fixed Frame.)

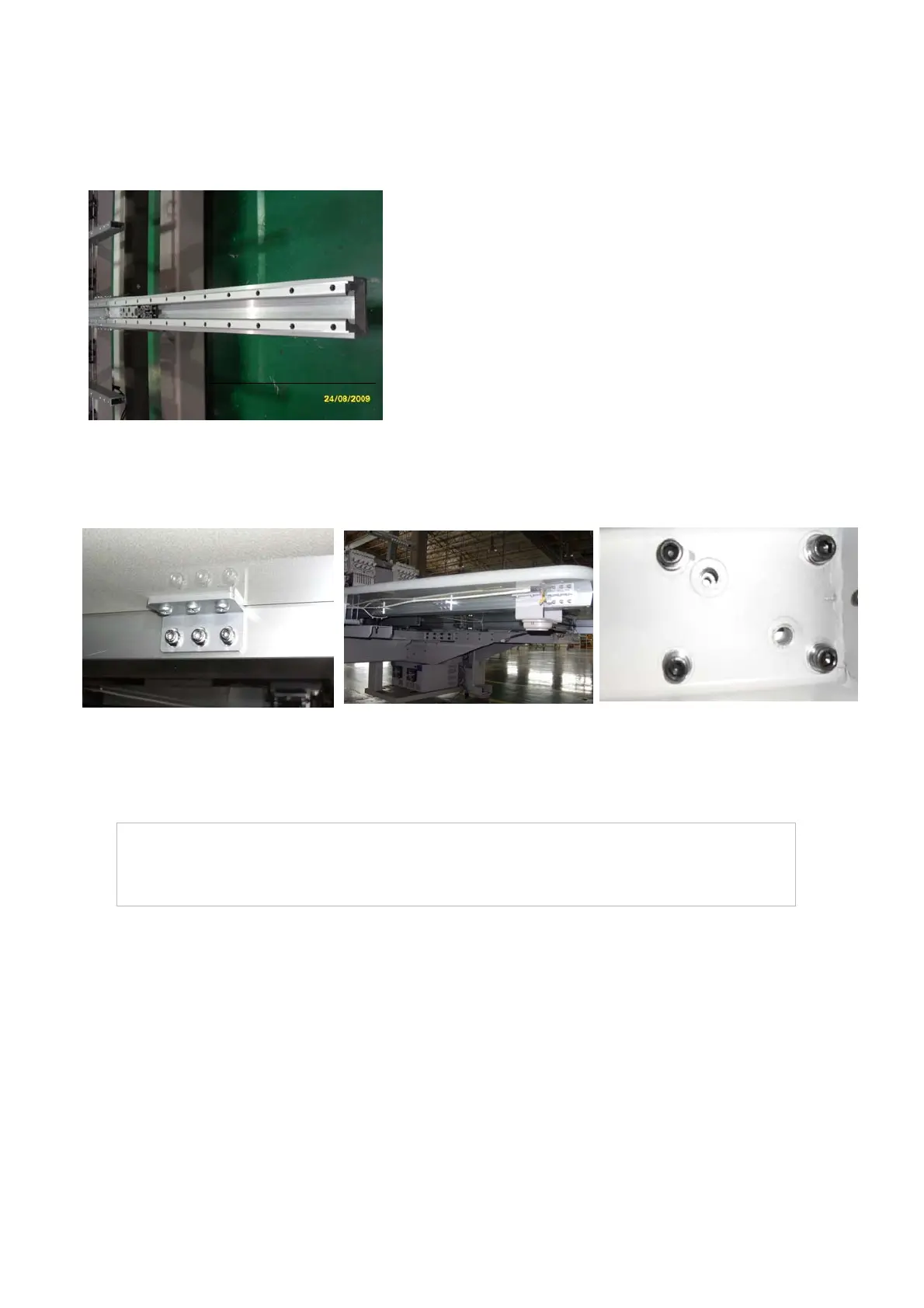

1) Don't mix the position of attaching.
2) Pre-connect Fixed Frame Plate Bolt with Y Fixed Frame Bolt and then fix the position of Y Frame Fixed Connecting Plate
Be cautious that turn aside to the left,right of Y Frame when connecting Fixing Bolt .
Check the declension(up/Down) and turning aside to the L/R of being fixed Y Frames with naked eyes.
In case of the table which is on the edge of front and right, assemble the Table Support,
because it is seperated with the Table Plate and Table Support respectively.
Insert Table Supporting Connecting Bar to the Table Support which is fixed to Beam Body,
and fix the Table Fixing Support Screw close by.
