(2) Assemble the Table Plate
# Above the Y-Storke 850mm model, assemble the plate

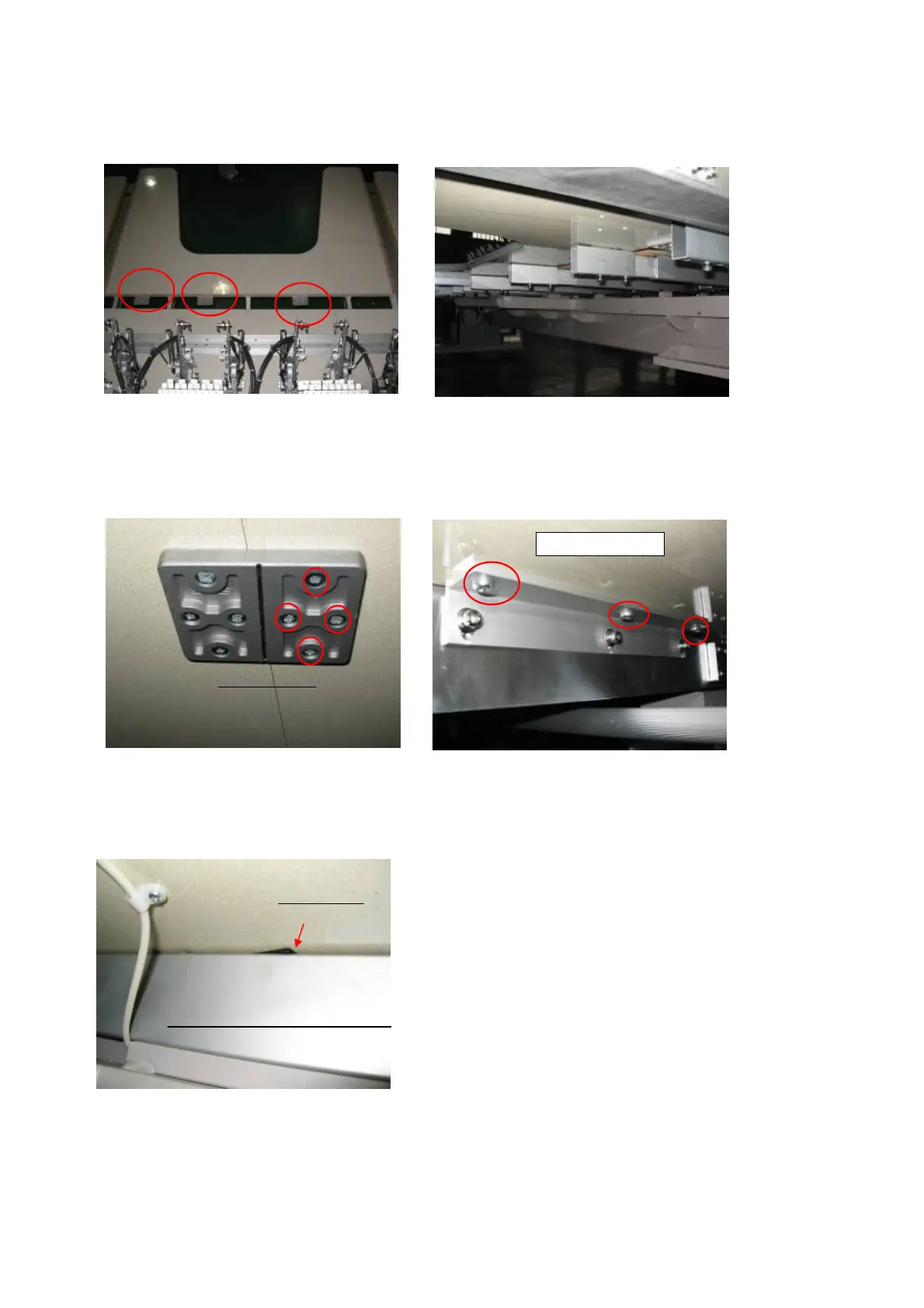

1) Refer to the sticker, assemble it in the right position.
2) Equal to the position of Table and plate and push the plate to the Table for connecting the Table piece.
Connect the Table Support with Table Support Connecting Bolt(M10,L30) for fixing.
3) Connect Table Connecting Plate and Table Support with Bolt.
4) Check the height of Table connection and correct it.
Set correctly for showing a plane figure of table connection.(table d-party washer 0.3,0.5,0.8,1.0 )
Table Support
