TECHNICAL INFORMATION
138

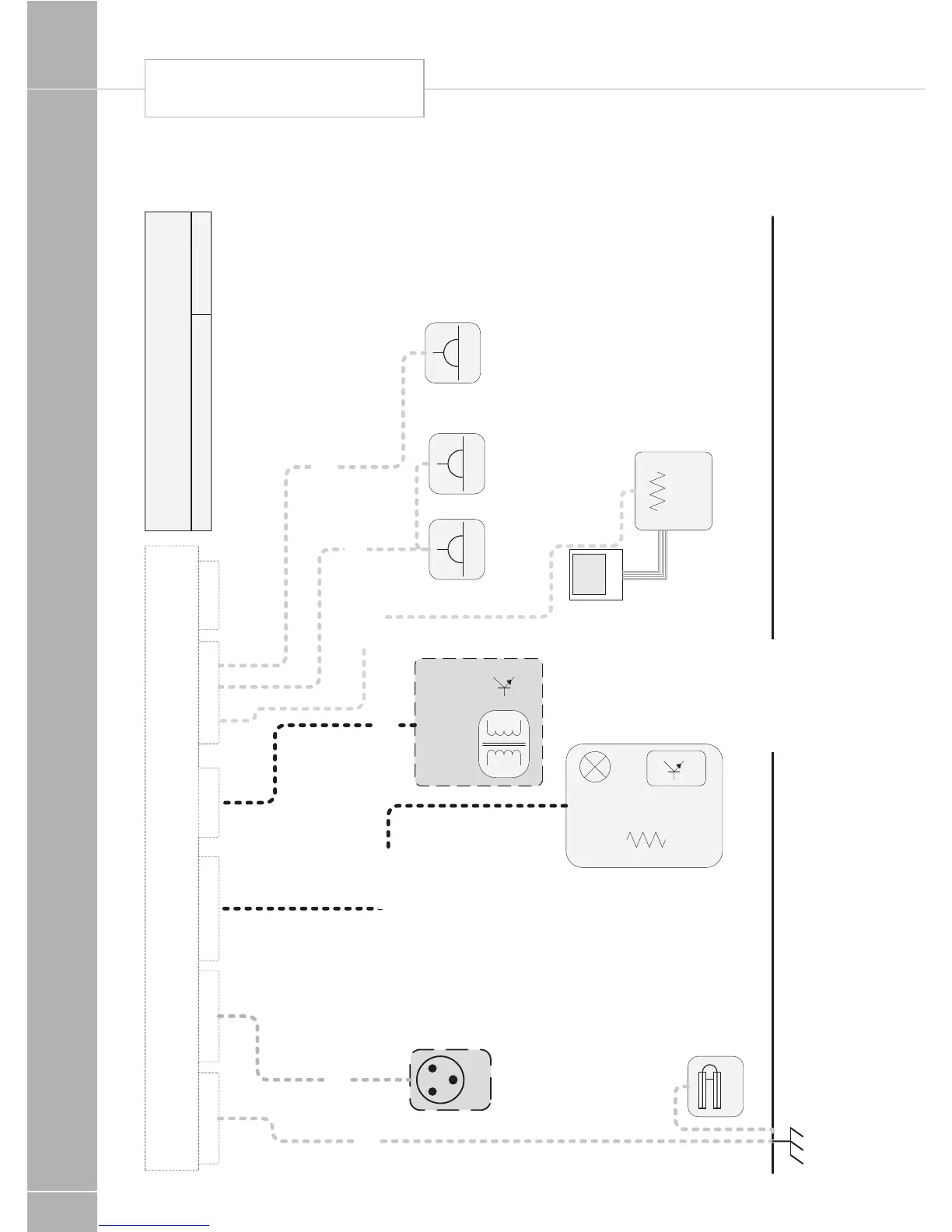

230v circuits with combi heater
230v socket
230v socket
3 core 1.5mm
White outer
3 core 1.5mm
White outer
230v socket
See separate sheet for cable
colour chart
White cables shown in Grey
Quantities of sockets may vary
from model to model
Combi
Heater
Element
PSU part number C652/563
Vehicle chassis Earth
Connector 1 (pins)
3 core 1.5mm
Yellow outer
3 Way
Refrigerator
10w
Lamp
E1 Earth bond
Si
ngle core 4.0mm
Gre
en/Yellow
Connector 2 (skts) Connector 3
3 core 1.5mm
Black outer
Input connector
IEC309 Input
connector
3 core 2.5mm
Orange outer
Gas pipe
230V Circuits
Panel Vans – With Combi Heating
SARGENT ELECTRICAL SERVICES LTD Issue 01 21/05/18
Connector 4
BP300 Electronic
Battery Charger
3 core 1.5mm
Black outer
Combi heater
control
WIRING DIAGRAMS
