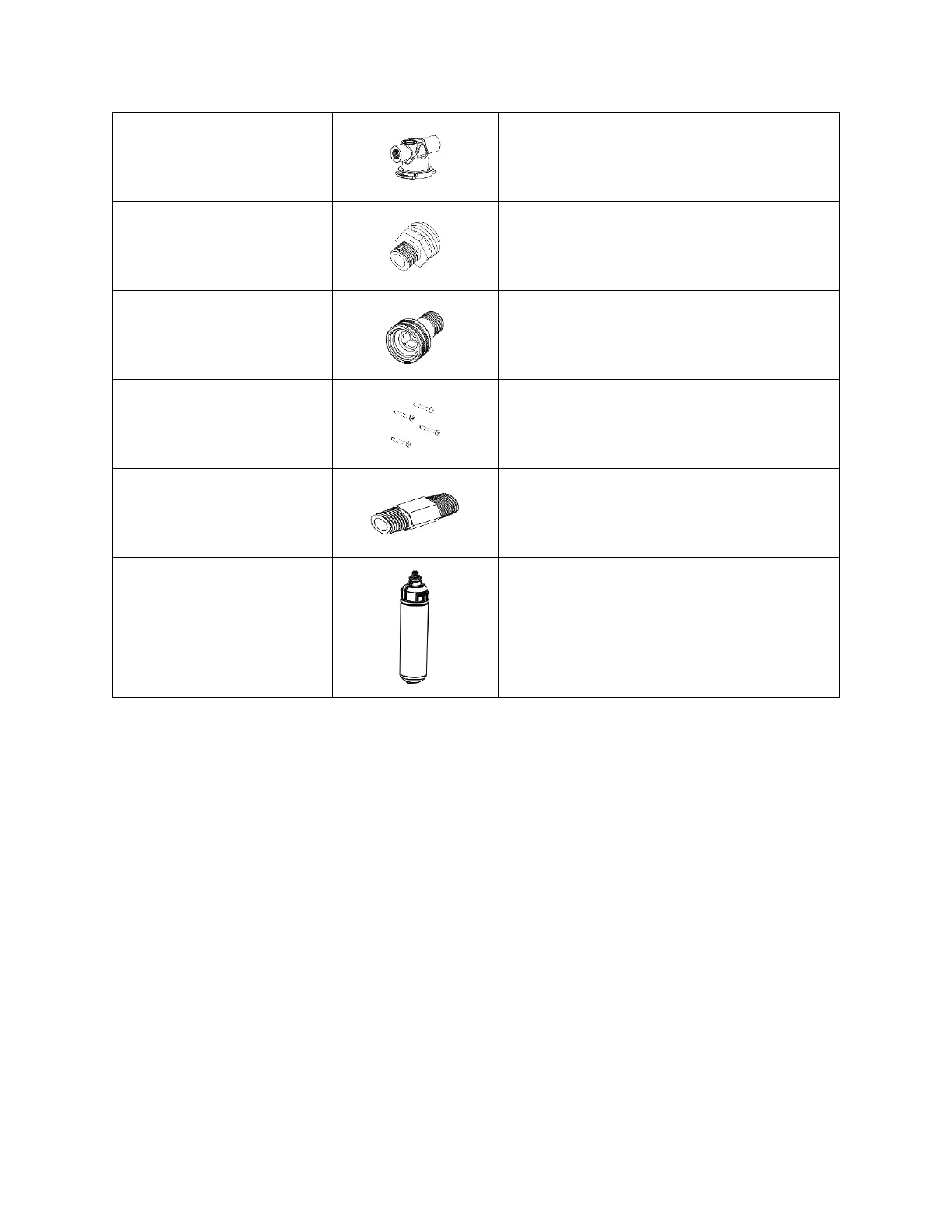

3-4 to 3-8 Garden Hose
Fitting
3-4 to 3-8 Swivel FGH x Male
pipe connector
3-8 NPT X 3-8 NPT Connector
Filter Cartridge Assembly
Before installation
Open the package and remove all components. Inspect the components to make sure nothing was
damaged during shipping. If any part is damaged or broken, please immediately contact the supplier for
a replacement. Get familiar with the components before you start the installation of the system.
Remove the items store under the sink. Have a towel in case water dripping occurs.
Tools required: For the assembly of the components a power drill, marker, screwdriver and an adjustable
wrench is required.
Mounting the Receiver Assembly bracket
Choose a location for mounting your bracket for under sink filter system. Note: pick a location such
that drill tool does not come in contact with other water pipes. The location should have easy access
to the receiver assembly. Also leave ample (minimum 2.
1
/
2
-3”) clearance for easy removal or
replacement of filter cartridge. See Picture (a), (b).
