swimmax 07 - 3.5 Typical arrangement; 3.6 Adjusting the bypass

- 6 -

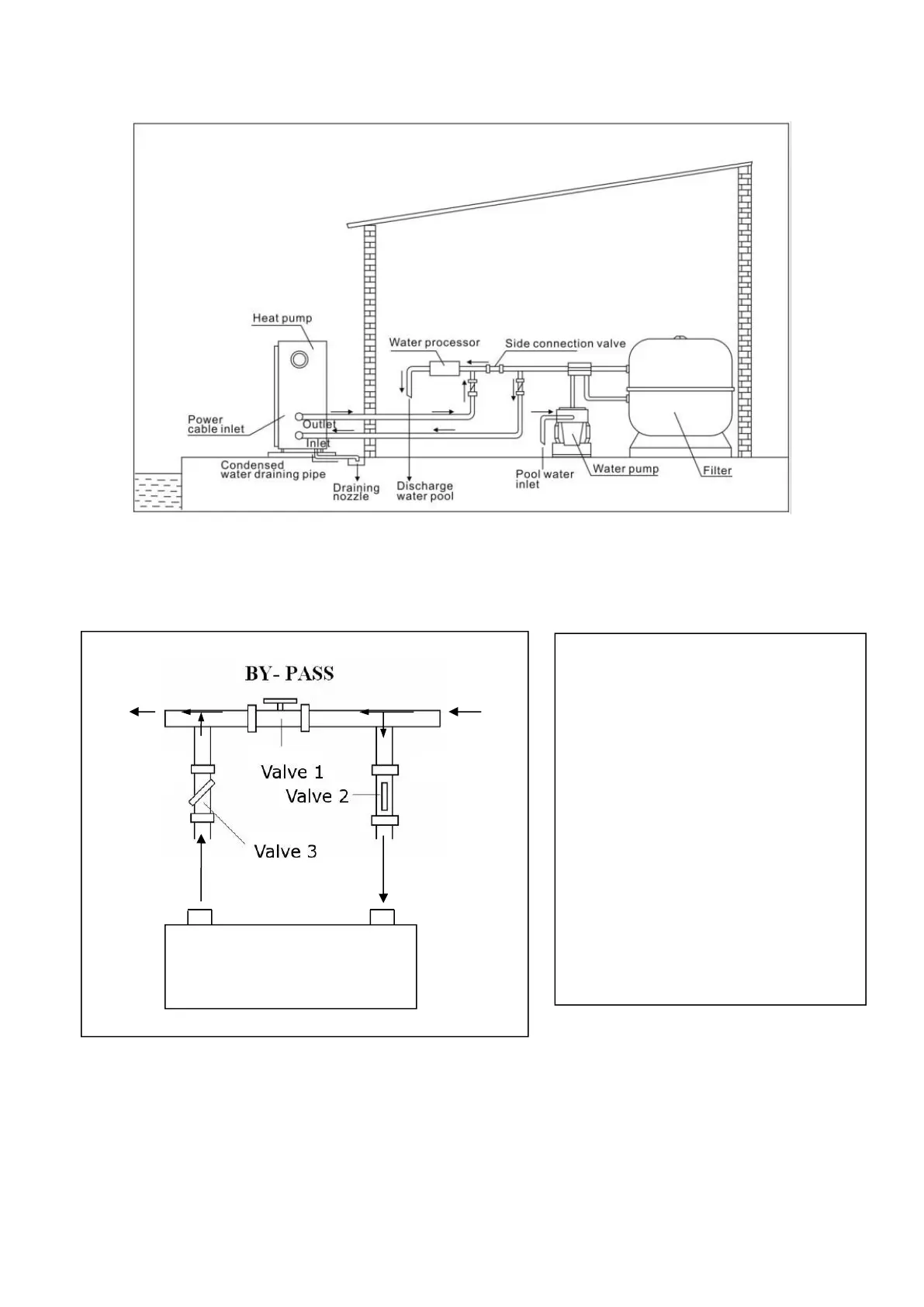

3.5 Typical arrangement
Note: This arrangement is only an illustrative example.
3.6 Adjusting the bypass
Note: Operation without a bypass or with improper bypass adjustment may result in sub-optimal
heat pump operation and possibly damage to the heat pump, which renders the warranty null and
void.
Out In
Heat Pump
Use the following procedure to adjust the
bypass:
1. Valve 1 wide open. Valve 2 & valve 3
closed.
2. Slowly open valve 2 & valve 3 by
half, then close the valve 1 slowly to
increase the water flow to valve 2 &
valve 3.
3. If it shows ‘ON’ or ‘EE3’ on display, it
means the water flow into heat pump is
not enough, then you need adjust the
valves to increase the water flow
through the heat pump.
To pool
From pool
