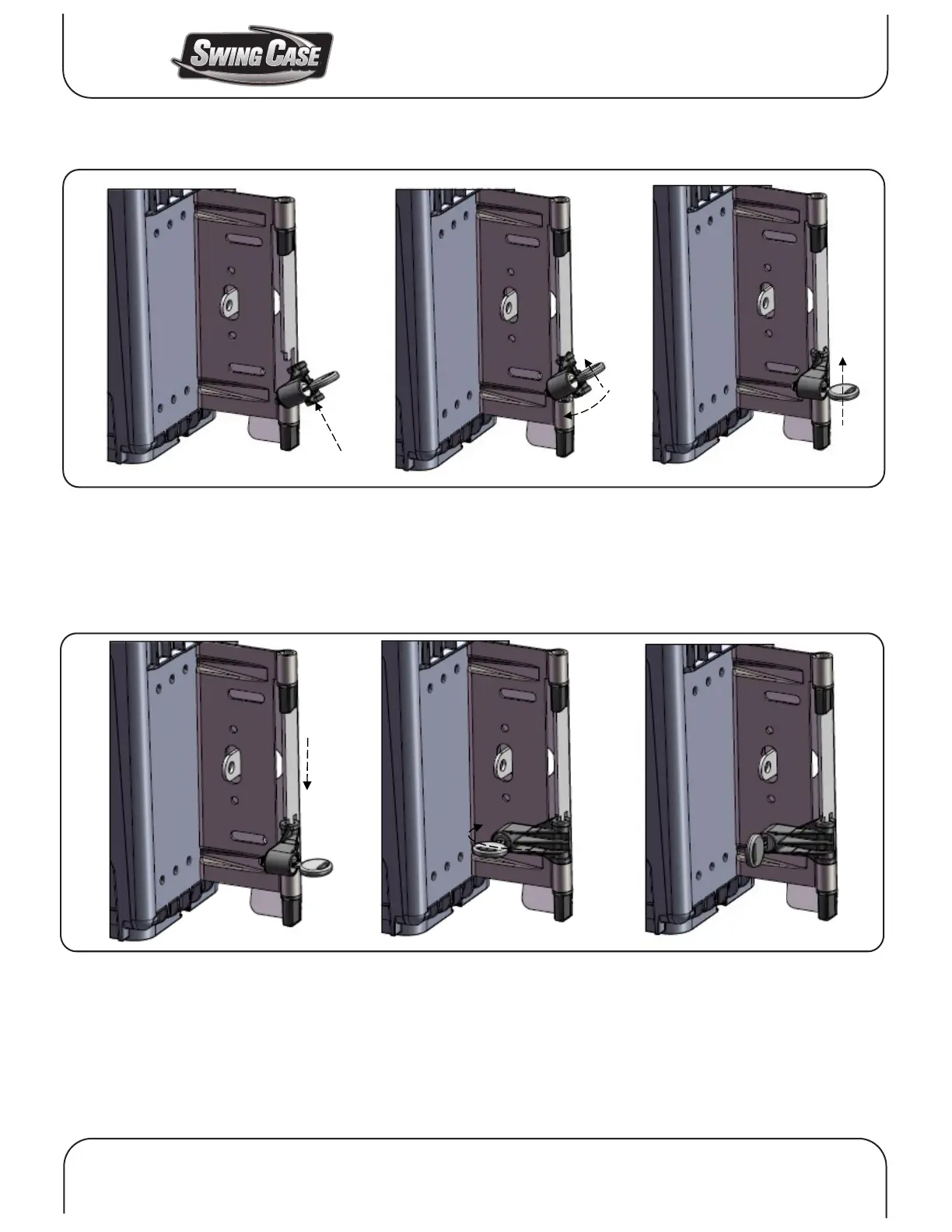

Insert the s
upplied
pivot
lock
at an angle in between the lower tab and the top of the lower pivot bushing.
While pushing upward on the pivot lock, rotate the pivot lock into position over the top over the lower
pivot bushing.
Once the pivot lock is over the top of the pivot bushing, slide the pivot lock down against the top of the
pivot bushing, then rotate the pivot lock towards the box bracket, so that the pivot lock is against the
bracket and lines up with the slotted hole in the bracket. Rotate the key 90 degrees into the locked
position. Once the pivot lock is in the locked position, this will allow the user to still pull the release handle
and swing the case out over the tailgate. The pivot lock will prevent the case from being fully removed.
Pivot Lock Installation
