Swing DIAMOND - Installation Instructions; Preparation and Packaging; Hanging Bracket Installation

The parts of the fan Installation instructions
1. Opening the packaging and preparations before the installation
- Carefully remove the ceiling fan from the packaging and place the fan motor and blades on a cloth or soft surface.
Placing the motor or blades on a hard surface may damage the finish.
- This ceiling fan is provided with a set of matching blades. Do not mix or switch blades from different product. Use of
blades different from those supplied can cause a malfunction and will void your warranty.
- Before starting the installation verify that all the parts are present and available for use, including any accessories which
may be required for the installation. Use only original Swing fan accessories.
2. Hanging bracket installation
- Fix the hanging bracket to a flat surface using suitable fasteners, which should be fastened to a timber joist or
concrete (the attached screws are intended for standard concrete. For other structure types, suitable installation
fasteners should be used).
- All screws provided should be used, and under no circumstances should the Hanging bracket be installed
on Plasterboard only.

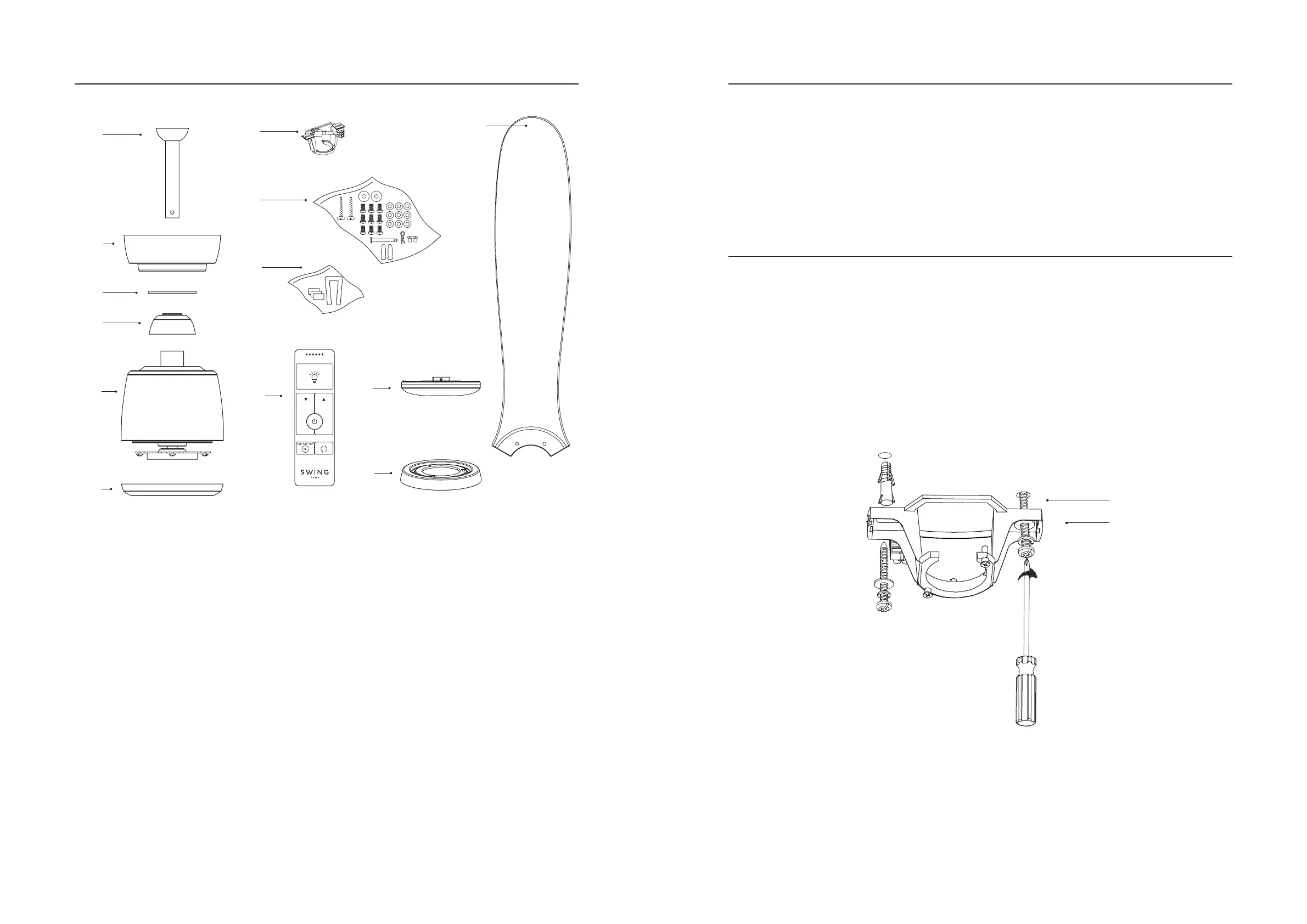

1 | Down rod and ball-joint
2 | Ceiling cover
3 | Decorative cover
4 | Motor adapter cover
5 | Fan motor
6 | Bottom cover
7 | Hanging bracket
8 | Kit of screws
9 | Balancing kit
10 | Remote control
11 | Fan blades
12 | Light fitting
13 | Light fitting cover
Screws
Hanging bracket
5
SWING DIAMOND Fan Installation Instructions | Version 1.23
