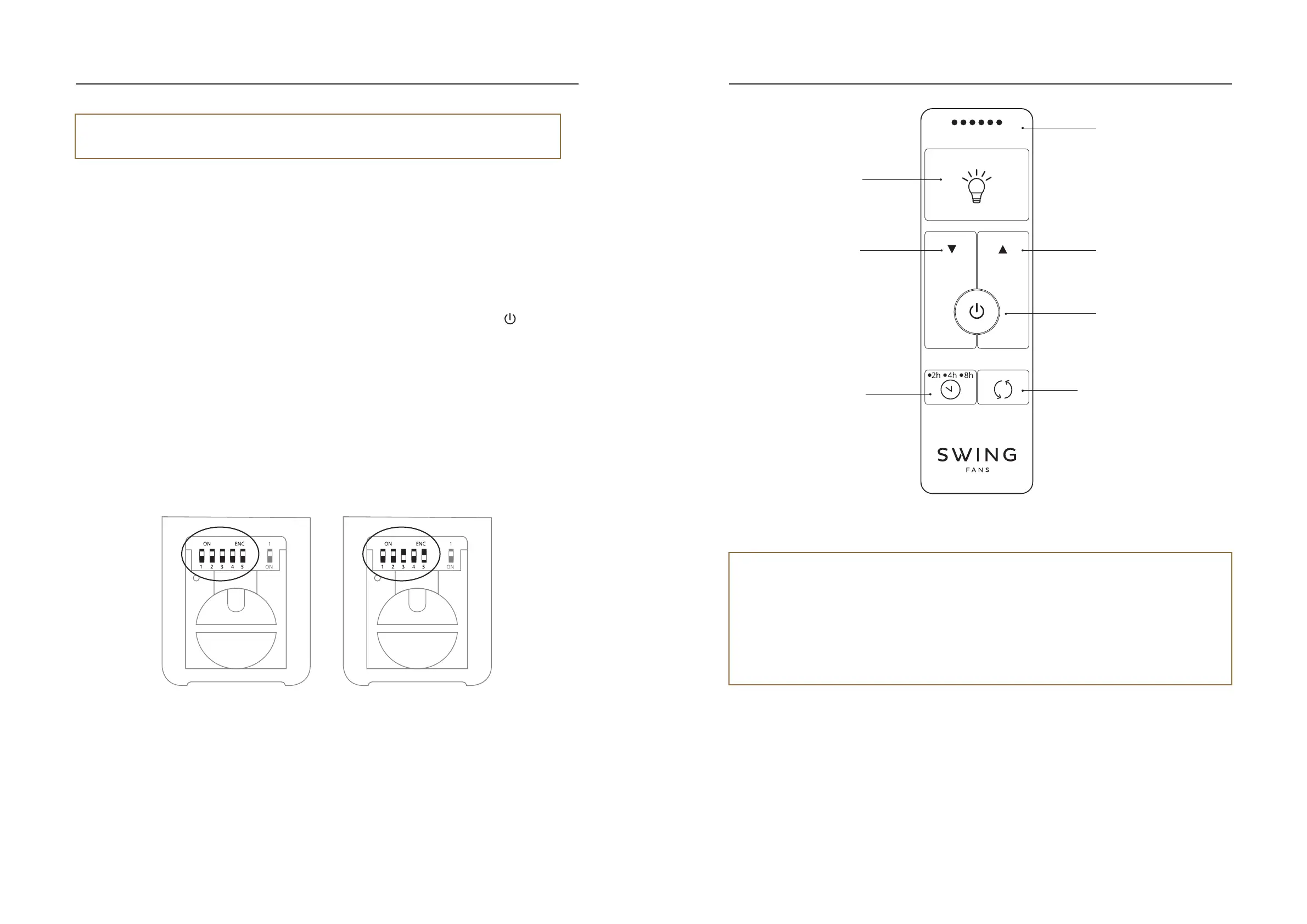

Functions and operation of the remote control
Attention! It is required to select a unique frequency value on the remote control for each of the fans.
This is to prevent frequency disruption and interference between the fans.
- Switch off the electricity supply to the fan by turning off the wall switch.
- Open the battery cover located on the back of the remote control (Figure 1).
- Select a unique frequency on the remote control by moving the frequency pins on the back of the remote
control (Figure 2).
- Close the battery cover.
- Switch back on the electricity supply to the fan. Make sure that all other fans are disconnected from the
electricity supply.
- Within 60 seconds of turning the fan power on press and hold the power button on the remote control
for 8
second until the light blinks twice (There is no indication if there is no light fitting)
- The remote control is now paired with the fan and all the actions of the remote control will be received.
Attention!
- The remote control operates wirelessly and must be within a range of up to 8 metres from the fan.
- When changing functions, wait patiently for a few seconds for the fan to receive the transmission and perform
the operation, especially after changing the rotation direction of the blades.
- The remote control comes with a dedicated wall holder which can be installed using two screws.
- The indicator lights are not lit permanently, but are lit for one second, and then go off.
Switching on the fan and
increasing the speed (from 1 to 6)
LED indicators which indicate
the operating speed (from 1 to 6)
Changing the direction of rotation of the
blades (Summer mode or Winter mode
selection).
*By default, the direction of the blades
is set so that the airflow is 'pushed'
downwards (“Summer Mode”). Rotation
in the reverse direction 'pushes' the air
upwards (“Winter Mode”).
Timer to control the operation
duration (two hours, four
hours, or eight hours).
Switching the fan on/off
Reducing the speed
(from 6 to 1)
Switching the light fitting
on or off (if installed)
Setting up the remote control
(if more than one ceiling fan is installed)
Defualt Frequency Set unique Frequency
