19

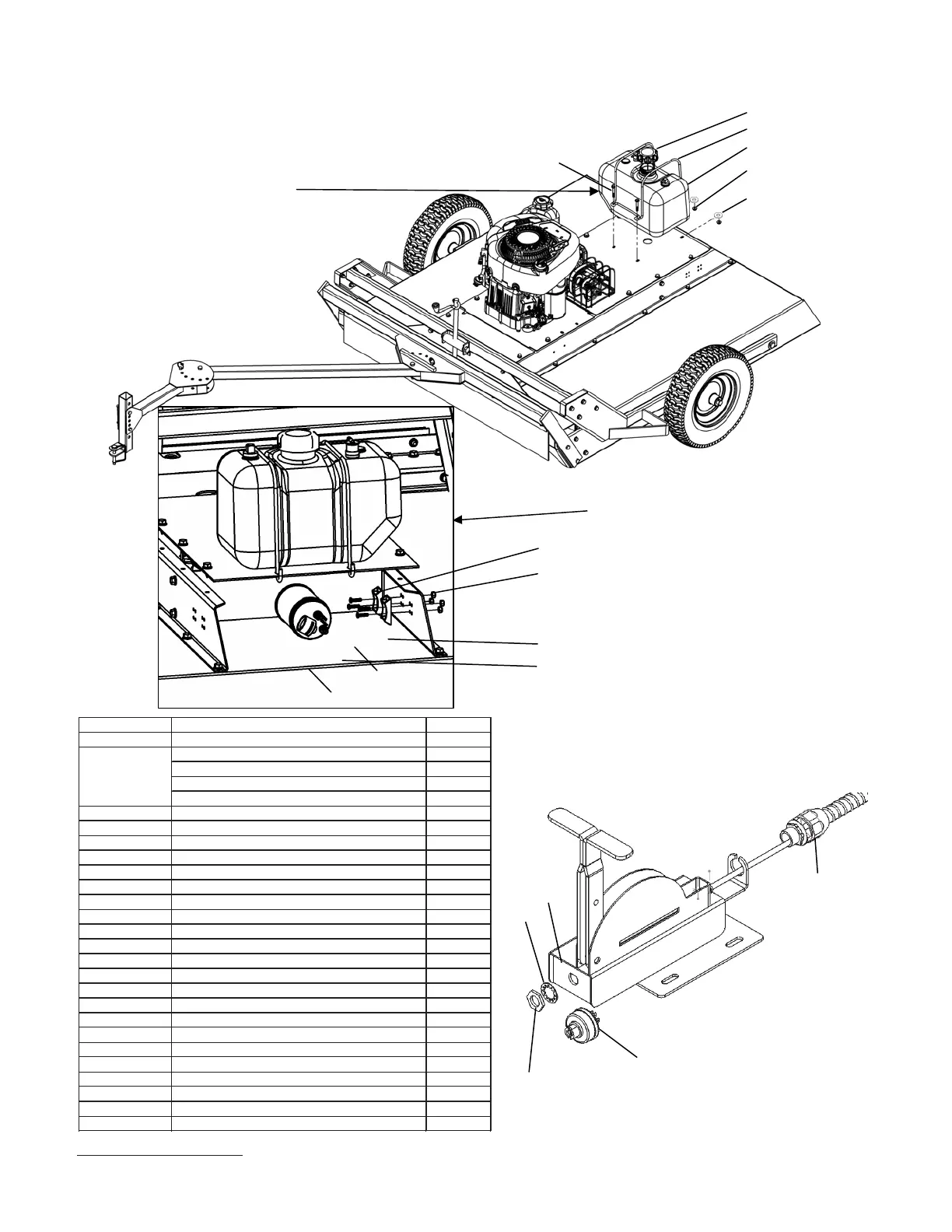

Item # Description Part #
1 Battery Box 10298TK
Wiring Harness RTB134412V 11764
Wiring Harness POL12544 10385
Wiring Harness RTB12544 10385
Wiring Harness RTB14544 10299
3 Key Switch 3623
4 Key Switch Nut 9087
5 Key Switch Lock Washer 9088
6 Decal On / Off OD28
7 Fuel Tank - 2.5 Gallon, Carb 18214
8 Cap, Fuel - 2.50 Gallon, Carb Sealed 18221
9 Bracket - Fuel Tank 18225
10 Bolt - Serr Flange 1/4-20 X 1 3/4 GR5 ZY 18236
11 Nut - Nyloc 1/4-20 NB180
12 Bracket - Carbon Canister, ZT 17127
13 Nut - 10-24 Nylon Lock 024900
14 Screw - 10-24 X 3/4 Phil Truss Head ZP 024203
15 Carbon Canister - 2.50 Gallon, 3/16 Line 18224
16 Washer - SAE Flat 1/4 ZY NB274
Not Shown 12 volt Wiring Harness ( Engine) 10299
Not Shown Nut - 1/4"-20 Nyloc NB180
Not Shown Solenoid Assembly 12 Volt 1002004
Not Shown Battery Hold Down, 15" Tarp Strap BHOLD
Not Shown Battery Cable (Black 10") BCS
Not Shown Battery Cable (10" Red) BCSR
Not Shown Battery Cable Small Rubber Boot BCBT
Not Shown Battery Pad BATPAD
2
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,S=SILVER,TK=TEX.BLACK
6
5
4
3
2
11
7
8
9
10
12
13
14
15
CARBON CANISTER ASSEMBLY
Only used on “CA” models (California Compliant)
REPAIR PARTS
Yo
ur 44’’ Trailcutter has been produced with components designed specific to this
machine. Although standard V-belts, springs, bearings, blades, pulleys, hardware, etc.
look similar to parts used on other machinery, they may in some cases be made of a
different construction and/or materials.
2.5 gallon tanks only on mowers
with a 14.5 HP engine.
16
