Swisher STD67522BS - Page 12

12
When ordering replacement parts
*Use paint code: TK=Black
**Items 26-31 can be purchased
collectively by ordering part # 2076.

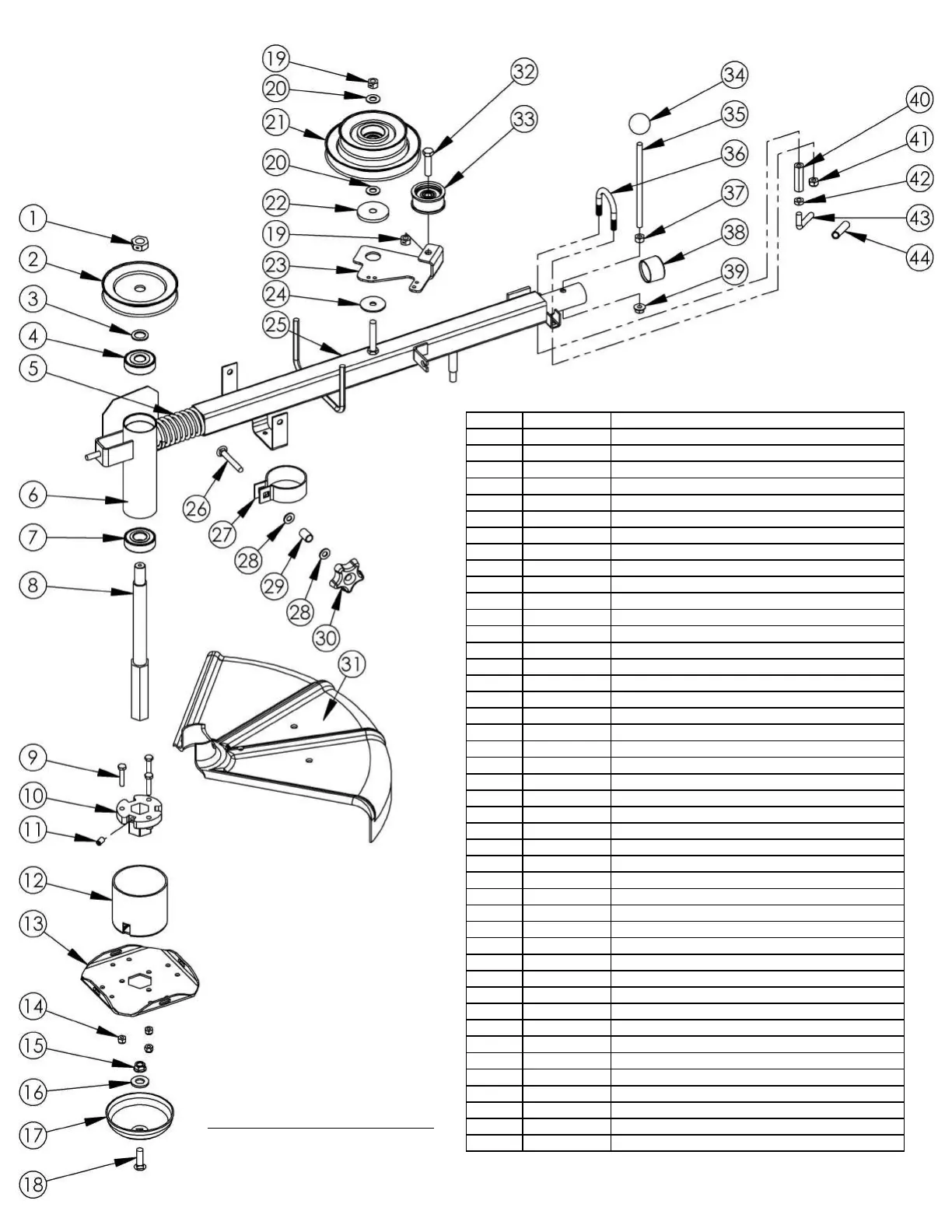

Trimmer Head Assembly
ITEM #
PART #
DESCRIPTION
1
NB595
Nut - Lock Jam, 5/8-11 2 Way
2
2049
Pulley - Blade, 4.5"
3
NB149
Washer - 5/8 ID X 1 OD 14 GA ZY
4
B985/8
Bearing - Trimmer
5
2033
Spring - Compression
6
19030*
Weldment - Head, Punched; Dlx Trimmer
7
19123
Bearing - 20mm ID, Steel Seal
8
19009
Shaft - Cutting Head, Standard
9
NB560
Bolt - 1/4-20 X 1 1/4 HCC GR5 ZY
10
19011
Hub - Cutting Head, PM
11
NB312
Screw - Set 5/16-18 X 1/2 With Loctite
12
19010
Guard - Shaft, Trimmer
13
19837*
Disc - Cutting Head
14
NB180
Nut - Nyloc 1/4-20
15
NB779
Nut - Serr Flange, Hex ZY 3/8-16
16
18823
Washer - Flat, 1/2"ID-12GA ASTM A325; ZY
17
19012*
Cutting Guide - Trimmer
18
10501
Bolt - Carriage 3/8-16 X 1 1/4 GR5 ZY
19
NB280
Nut - 2 Way Lock 3/8-16 ZY
20
NB272
Washer - SAE Flat 3/8 ZY Carbon Steel
21
19033
Pulley - Double Idler, Dlx Trimmer
22
2827
Pivot - Bushing
23
19032*
Idler Arm - Deluxe Trimmer
24
10177
Washer - Fender 3/8 X 1.5
25
19842*
Weldment - Slide, Deluxe Trimmer
26
NB110**
Bolt - Carriage, 5/16-18 X 2 1/4 Gr 2 ZY
27
2043**
Clamp - String Shield
28
NB275**
Washer - SAE Flat 5/16 ZY
29
2084**
Spacer - String Shield Clamp
30
2030**
Knob - Black Plastic
31
2042**
Guard - String
32
NB107
Bolt - 3/8-16 X 1 1/2 HCC GR5 ZY
33
19107
Pulley - Backside Idler, 1.87"OD .375"ID
34
B19BLACK
Knob - Shift, Black
35
2103A
Pivot - Handle
36
2075
U-Bolt; Tilt - Clamp (Knurled)
37
NB210Z
Nut - 5/16-18 HNC GR2 ZY
38
2068
Cap - Plastic, 1 1/4"
39
NB170
Nut - Serr Flange 5/16-18 ZY Case Hrd
40
NB594
Nut - Coupling 5/16 - 18 x 1 3/4
41
NB181
Nut - Nyloc 5/16-18 ZY
42
NB173
Nut - Jam 5/16-18 ZY
43
2083
Handle - Bent ZY
44
2078
Grip - Tilt Handle; Yellow
