Swisher STD67522BS - Page 11

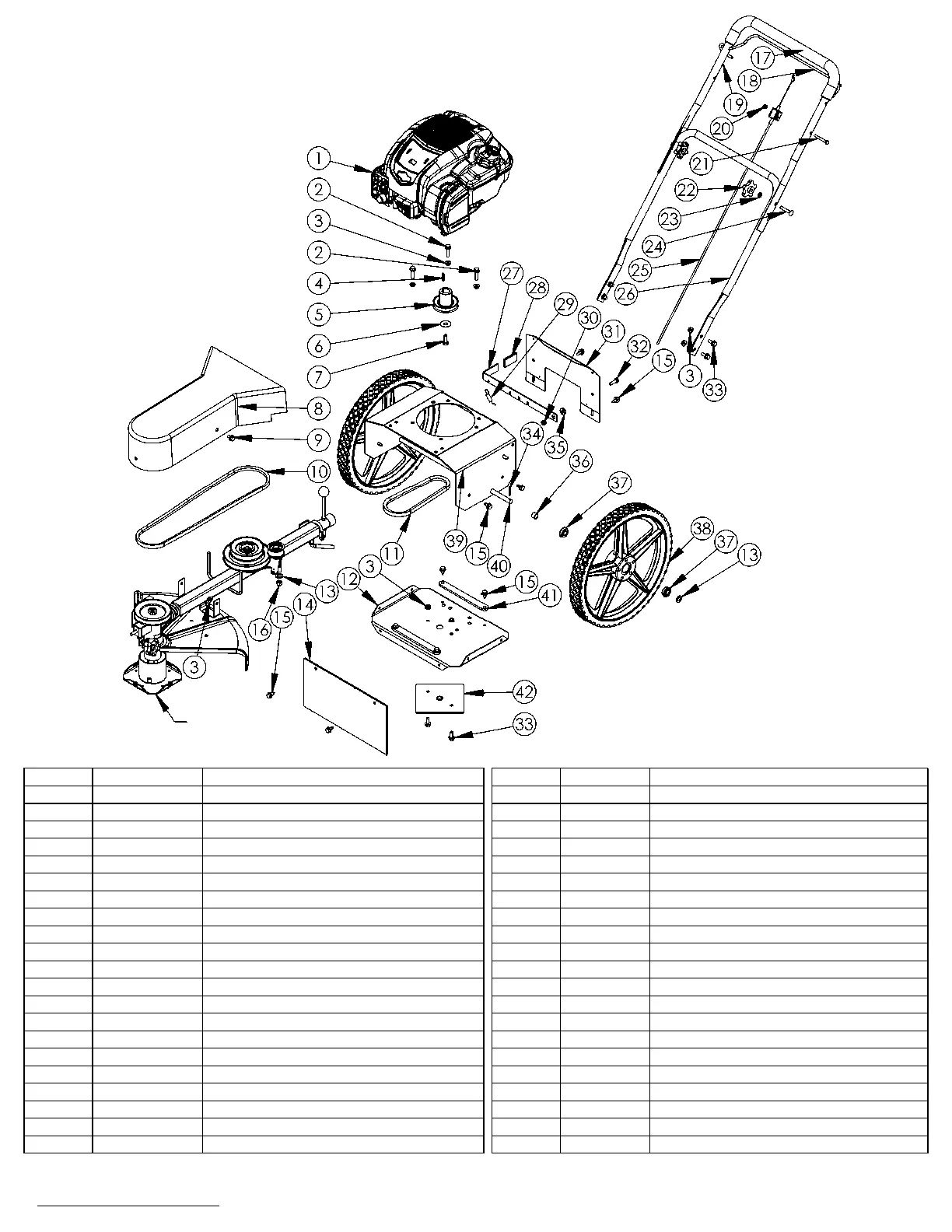

ASSEMBLY
11
Item #
Part #
Description
Item #
Part #
Description
1
N/A
Briggs & Stratton Engine
22
2030
Knob - Black Plastic
2
NB253
Bolt - Serr Flange, 5/16-18 X1 1/4ZY
23
NB275
Washer - SAE Flat 5/16
3
NB170
Nut - Serrated Flange 5/16-18
24
NB587
Bolt - Carriage 5/16-18 X 1 3/4
4
9030
Key Stock - 3/16 X 1
25
19006
Cable - Control, Trimmer
5
19117
Pulley - Engine
26
10399*
Handle - Lower
6
699
Washer - Belleville 7/16 X 1 1/4
27
2040*
Stop - Pivot
7
NB238N
Bolt - HHC 3/8-24 X 1
28
2077
Pivot - Handle Grip
8
2119
Guard - Belt
29
2069
Spring - Deluxe Trimmer
9
NB252
Bolt - Serr Flange, 5/16-18 X 1/2 ZY
30
NB181
Nut - Nyloc 5/16-18 ZY
10
19074
Belt - 45", DeluxeTrimmer
31
19059*
Cover - Rear, Deluxe Trimmer
11
19053
Belt - 24", Trimmer
32
NB501
Bolt - 5/16-18 X 1
12
2006*
Base - Lower Motor
33
NB596
Bolt - Serrated Flange 5/16-18 X 3/4
13
NB177
Washer - Mach 1/2
34
NB126
Pin - Cotter, 1/8 X 1
14
19004
Shield - Rubber
35
B99S
Spacer
15
26X249
Screw - .312-18 X .75
36
690369
Spacer - 1/2" TO 17 MM
16
NB182
Nut - Nyloc 3/8-16 ZY
37
MWB
Bearing - Wheel, 1 1/8"OD X 1/2"ID
17
19561
Grip - Handle
38
2003K**
Wheel - 16", 1/2" ID Bearing, Blk
18
19005
Bail - Trimmer
39
19058*
Motor Base - Upper, Dlx Trimmer
19
10578*
Handle - Upper
40
14416
Axle - Trimmer; YZ
20
NB180
Nut - Nyloc 1/4-20
41
2116
Strip - Wear
21
NB218
Bolt - 1/4-20 X 2 HCC GR5 ZY
42
2073*
Plate - Pivot Weldment
When ordering replacement parts
* USE PAINT CODE: TK=BLACK
SEE DETAIL
PAGE 12
** Wheels include two bearings. Use part #
MWB when replacing bearings only.
