SWorkz S12-2 - Page 10

10
7
8
BAG
C
101026
104004
330410
106001
BrushLess 540 Motor BrushLess 540 Motor
is not includedis not included
104004
M3x3mm Set Screw
x1
330410
SWORKz 1/10 Motor Pinion Gear 21T
x1
101026
Washer M3x6xT1.5mm
x2
106001
M3x8mm Hex Socket OH/TP Screw
x2
Paper for gear mesh.Paper for gear mesh.
106002
106008
220045(#0)
220045(#0)
106002
106002
M3x10mm Hex Socket OH/TP Screw
x4
106008
M3x12mm Hex Socket OH/TP Screw
x1

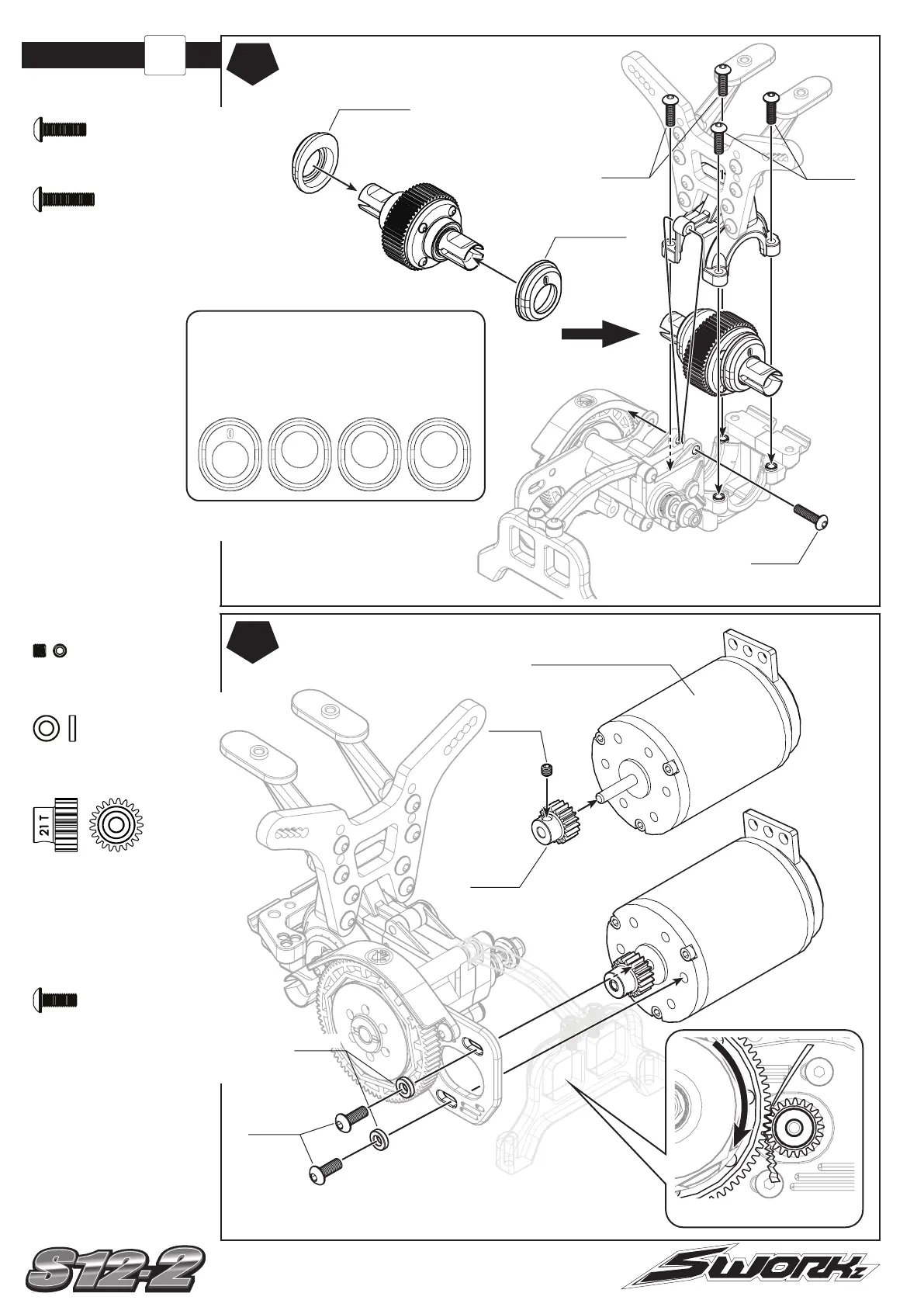

L+1 L+2 L+3
PRO TIP:
The part 220045 (S12-2 Gear Box Inserts) can
be put in 4 different degrees. The basic position
to start is zero degree which is the lowest
position to the chassis. You can change to +1,
+2 or +3 degree for lower grip conditions.
