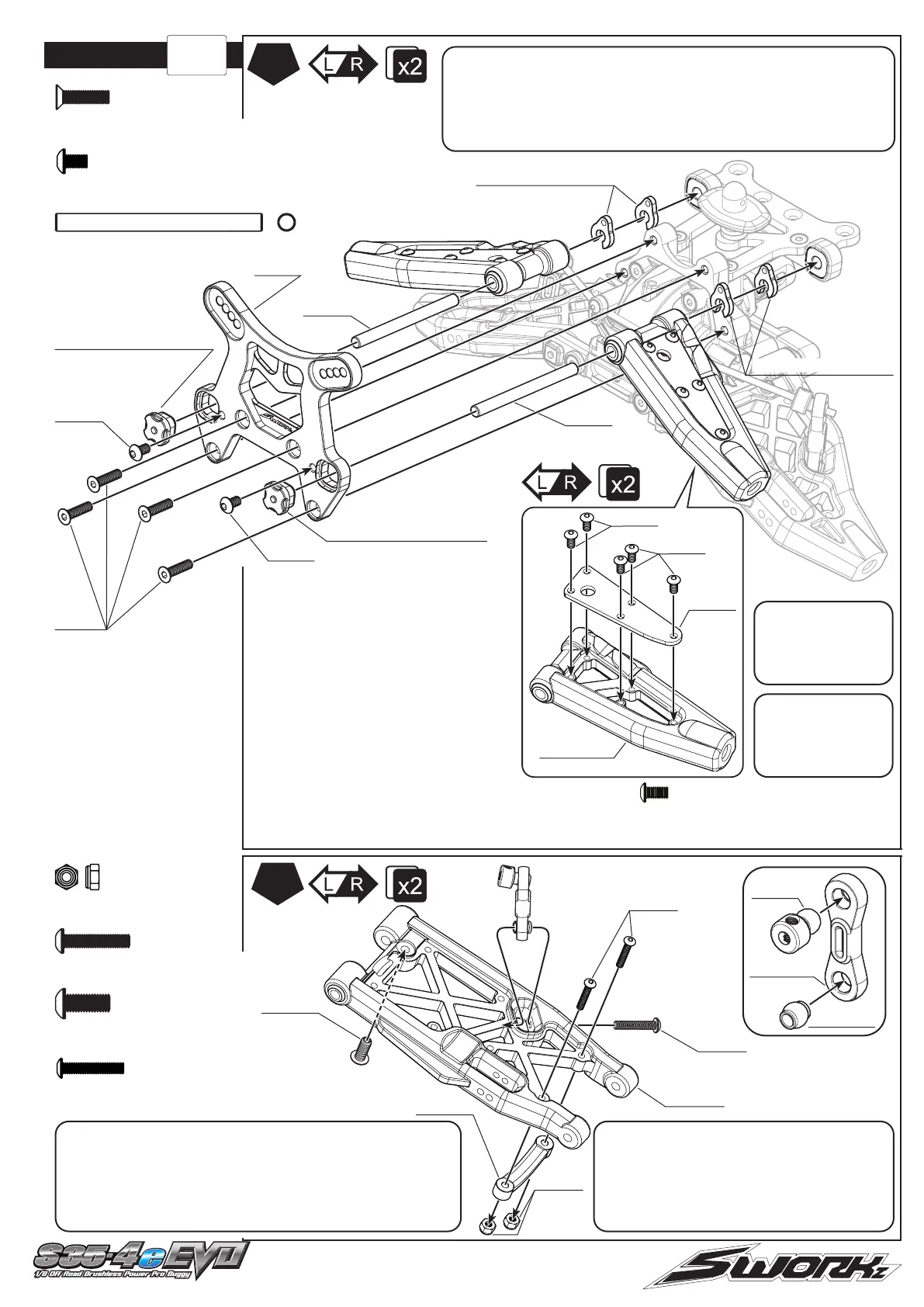

SWorkz S35-4e EVO - Page 13

13
13
12
BAG
E1
108001
228001DG (#14 #15 #16)
106015
330119
108001
M3x12mm FH/ST HEX Screw
x4
338112
106015
330119
228001DG (#14 #15 #16)
2503260 (#1 #2 #3 #4)
Note:
2503260-1
S35-3 Front Upper Arm Adjust Insert (0.9mm)
2503260-2
S35-3 Front Upper Arm Adjust Insert (1.0mm)
2503260-3
S35-3 Front Upper Arm Adjust Insert (1.1mm)
2503260-4
S35-3 Front Upper Arm Adjust Insert (2.0mm)
2503260 (#1 #2 #3 #4)
106015
M3x5mm Hex Socket OH/TP Screw
x2
106020
M2.5x5mm Hex Socket OH/TP Screw
x10
106020
106020
340003
2503270-01
PRO TIP:
The S35-4 EVO Front Upper Arm Adjust Inserts
can give di󰀨erent steering adjustments (Ackerman).
Put all inserts behind the front upper arms, you will get faster steering response.
Otherwise put all inserts in front of the upper arms,
you will get more stable steering response.
Try to use 2503260-1 or 2503260-3 to adjust the front upper arm position.
330119
Front Upper Arm Hinge Pin
x2
OPTION:
SW-2503270-01H
S35-3 Series Front Upper
Arms With Hard Material
(2PC)
OPTION:
SW-340003A S35-3
Series Pro-composite
Carbon Front Upper Arm
Cover (1.5mm)(2PC)
106021A
M4x10mm Hex Socket OH/TP Screw
X2
330134
330136
2501121C
106005
M3x15mm Hex Socket OH/TP Screw
x2
106021A
228015H
228015H
106005
106022
103004
M2.5mm Nut Lock
x4
103004
OPTION:
228015S SWORKz
S35-4 Series Arched-Bridge-System Rear Lower Arm Set (Soft)(1PC)
228015M SWORKz
S35-4 Series Arched-Bridge-System Rear Lower Arm Set (Medium)(1PC)
228015U SWORKz
S35-4 Series Arched-Bridge-System Rear Lower Arm Set (Ultra-Hard)(1PC)
OPTION:
348003-10
SWORKz S35-4 Series Pro-composite Carbon Arched-Bridge-System Rear Lower Arm Cover(1.0mm)(2PC)
348003-15
SWORKz S35-4 Series Pro-composite Carbon Arched-Bridge-System Rear Lower Arm Cover(1.5mm)(2PC)
348003-20
SWORKz S35-4 Series Pro-composite Carbon Arched-Bridge-System Rear Lower Arm Cover(2.0mm)(2PC)
106022
M2.5x14mm Soket OH/ST Screw (1.5mmHex)
X2
