SWorkz S35-4e EVO - Page 19

19
25
330125
330123A

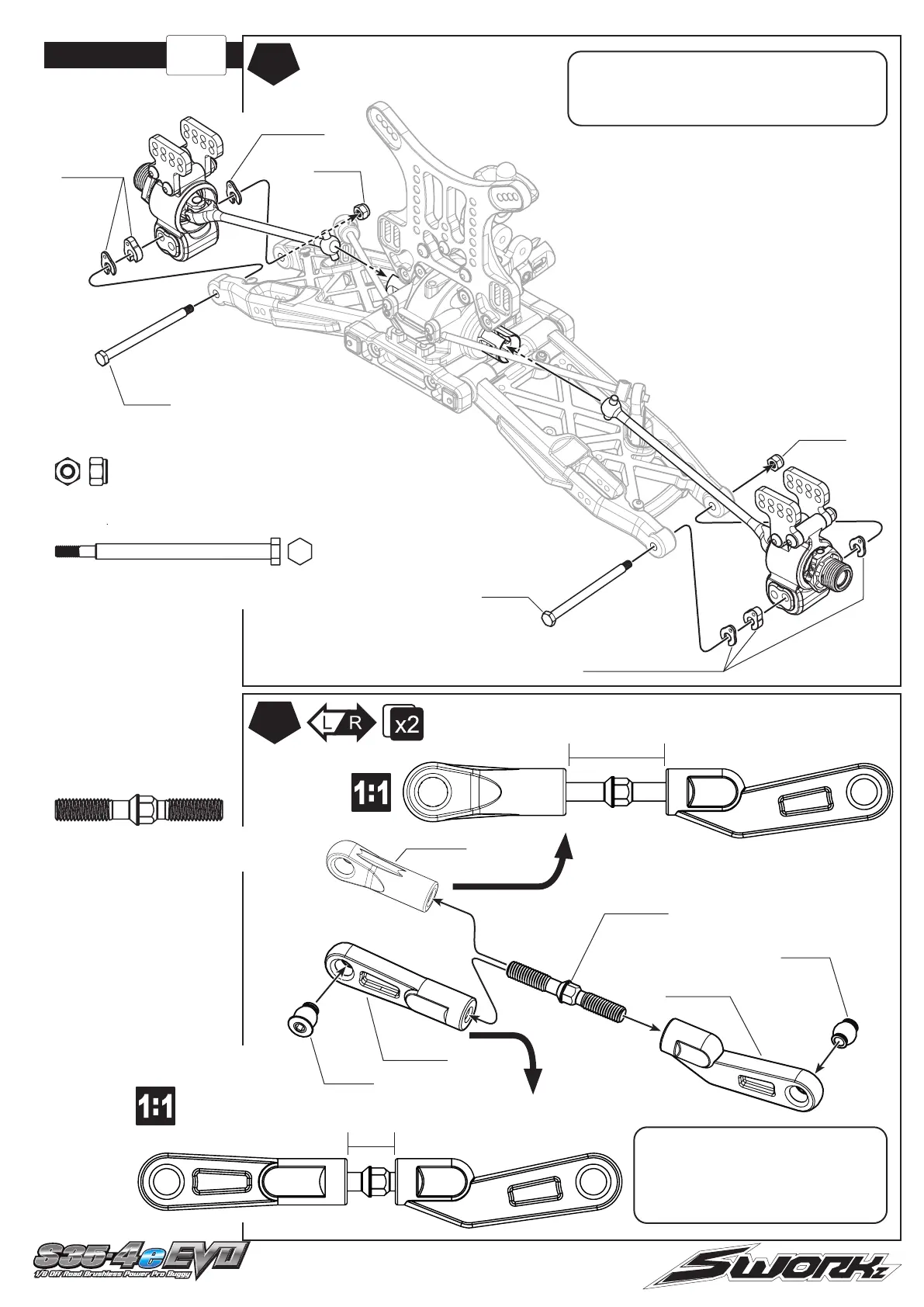

Rear Upper Sus. Arm Turnbuckles
x2
338070
330123A
2501121C
2501121C
21 mm21 mm
16 mm16 mm
Longer Upper Arm Linkage Set-up
Shorty Upper Arm Linkage Set-up
228006-5
PRO TIP:
The Shorty Upper Arm Linkage Set-up is
good using for low grip condition.
The Longer Upper Arm Linkage Set-up is
good using for high grip condition.
24
BAG
E3
103001
103001
330782
330782
330782
Rear Hub Carriers Hinge Pin with Nut
x2
103001
M3 Nut Lock
x2
2503260
(#5 #6 #7)
2503260
(#5 #6 #7)
2503260 (#5 #6 #7)
PRO TIP:
The base set up is always by using 2-3mm inserts on
the rear of Hub Carriers Hinge Pins.
The wheel base length should be around 325-330mm.
