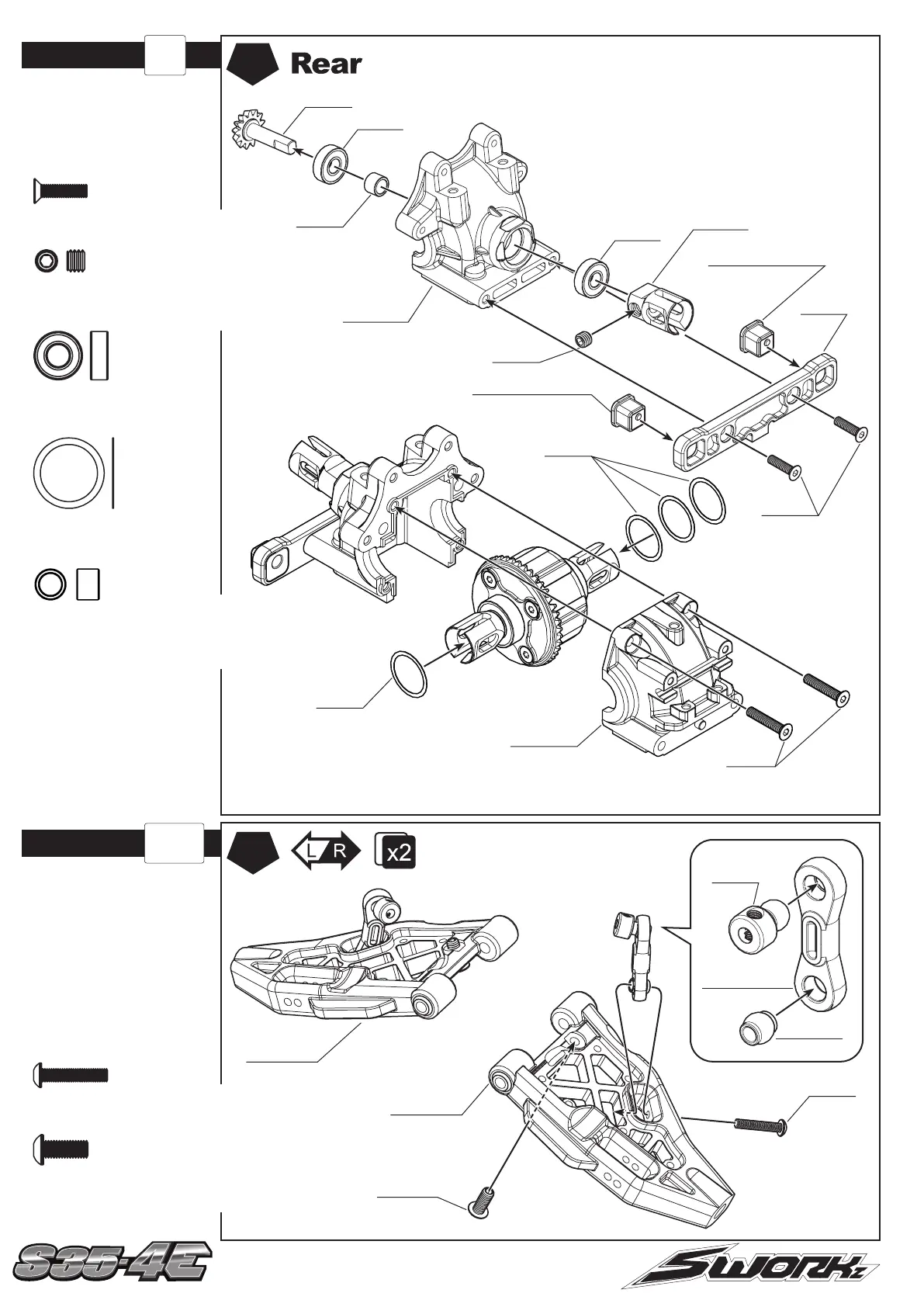

SWorkz S35-4E - Page 10

10
BAG
D
BAG
E1
7
6
106005
M3x15mm Hex Socket OH/TP Screw
x2
104010
108001
M3x12mm FH/ST HEX Screw
x4
106021A
M4x10mm Hex Socket OH/TP Screw
X2
104010
M5x4mm Set Screw (Flat Bottom)
x1
116019
Ball Bearing 5x13x4mm
x2
Pro Tip:
Before installing the M5x4 set screw
(104010), remember to clean the set screw
and center driver joint (330661A) rst.
Then apply TLC on the set screw.
338011
S35 series Pinion Gear Stopper (5x7x5.1mm)
x1
101018
SHIM 13x16x0.2mm
x4
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the play between the crown gear and pinion gear.
Standard suggestion is 1pc shim on the di󰀨 crown gear side and 3 pcs on the other side.
101018
2503261A
108001
106019
106019
330661A
338011
330781
2503261A
228001(#8 #9 #10)
228001(#8 #9 #10)
338049
108001
330134
330136
2501121C
106005
Left
Right
228005S-F
106021A
228005S-F
101018
