SWorkz S35-4E - Page 28

28
43
35
mm
45.25
mm
35
mm
45.25
mm
2501121C
2501121C
BAG
J
Front 400010(S)
Rear 400009(L)
101011
330557
103004
400020
210058
Shock Seal O-Ring
x8
330562(F)
330563(R)
210058
Shock Seal Washer
3.6X7X2.5mm
x8
210058
Shock Seal Washer 3.5X7X1.0mm
x4
103004
M2.5mm Nut Lock
x4
101011
M2.6x6xT0.6mm
x4
400019
Shock Spring Adjust
x4
Nut O-Ring
400020
Shock Seal O-Ring
x4
42
338063
S35-4 Series BBS System Tiefron Coated Shock Shaft (S)
x2
338062
S35-4 Series BBS System Tiefron Coated Shock Shaft (L)
x2
210058
108029
M2.0x4.6mm FH/ST HEX Screw (1.5mm HexHead)
x4
108029
338067
400023
UP
DOWN
Note the direction!
Front 338063(S)
Rear 338062(L)
Front 338061(S)
Rear 338060(L)
228006

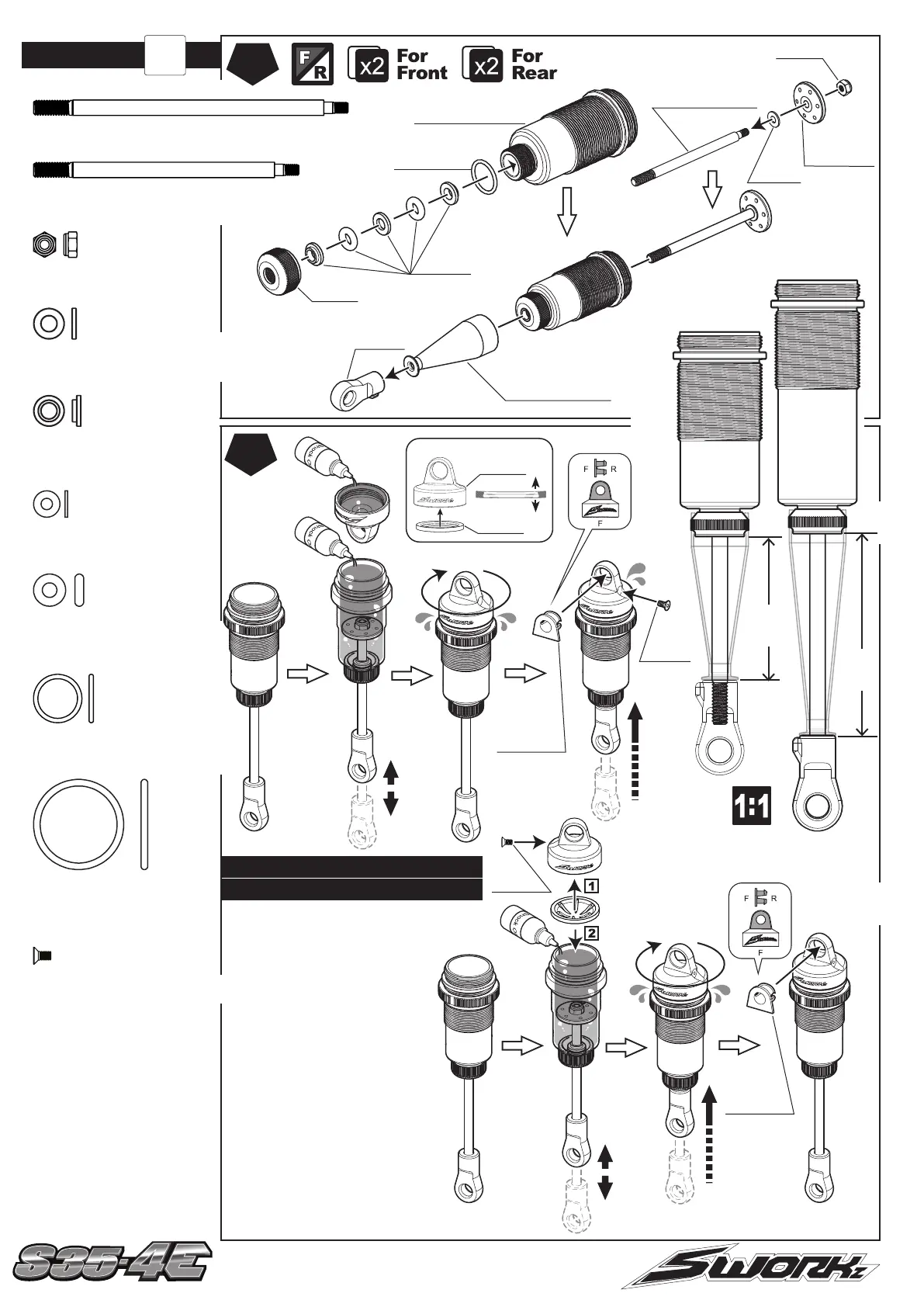

Emulsion shock cap system assembly note ↑
Standard bladder shock cap assembly note ↓
Slowly push the
shock shaft to the end
of shock cap.
Then tight screw
M2x4mm
Slowly push the shock shaft
to the end of shock cap.
Then tight screw M2x4mm
108029
