SWorkz S35-4E - Page 30

30
47
46
BAG
E
39mm39mm
105025
228008BK
228008BK
228008BK
106025
106025
106025

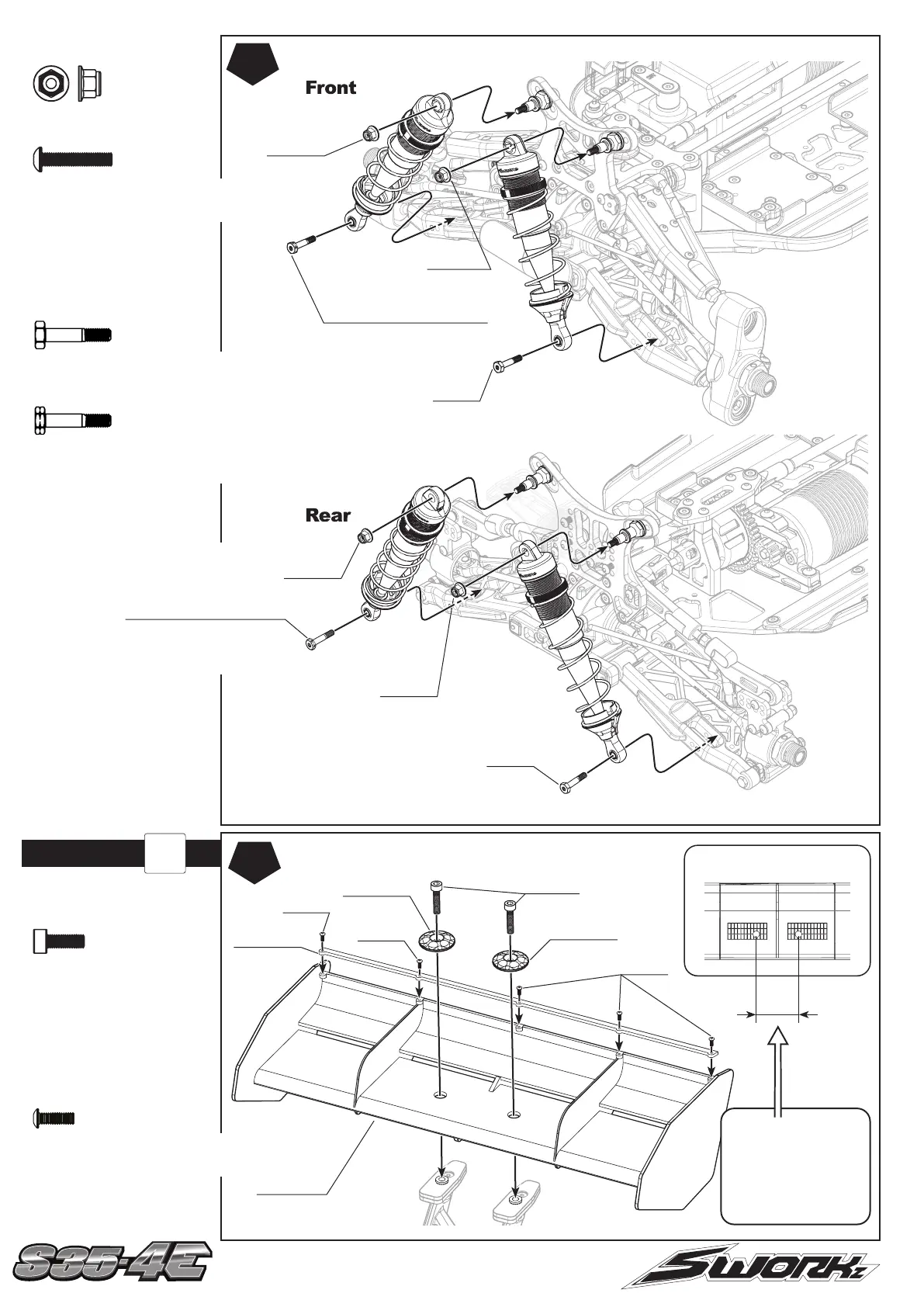

M2.5x8mm Hex Soket OH/TP Screw
x5
228008BK
106025
103003A
106003
M3x16mm Hex Soket OH/TP Screw
x4
103003A
Flange M3 Nut Lock
x1
330243 (Anti-Clockwise)
330243
330243
330243 (Anti-Clockwise)
103003A
103003A
103003A
330243
SWORKz 3x16mm Shock Hex Screw Clockwise
x2
330243
SWORKz 3x16mm Shock Hex Screw Anti-Clockwise
x2
105005
M3x12mm Cap Screw
x2
PRO TIP:
Attention!
Please do not follow the
wing hole markings to
drill. Please drill both
holes 0.5mm inwards
.
