SWorkz S35-4E - Assembly Steps

7
1
2
BAG
B
101004
101004
101004
101004
610023
101004
Washer 3.5X10X0.2mm
x8

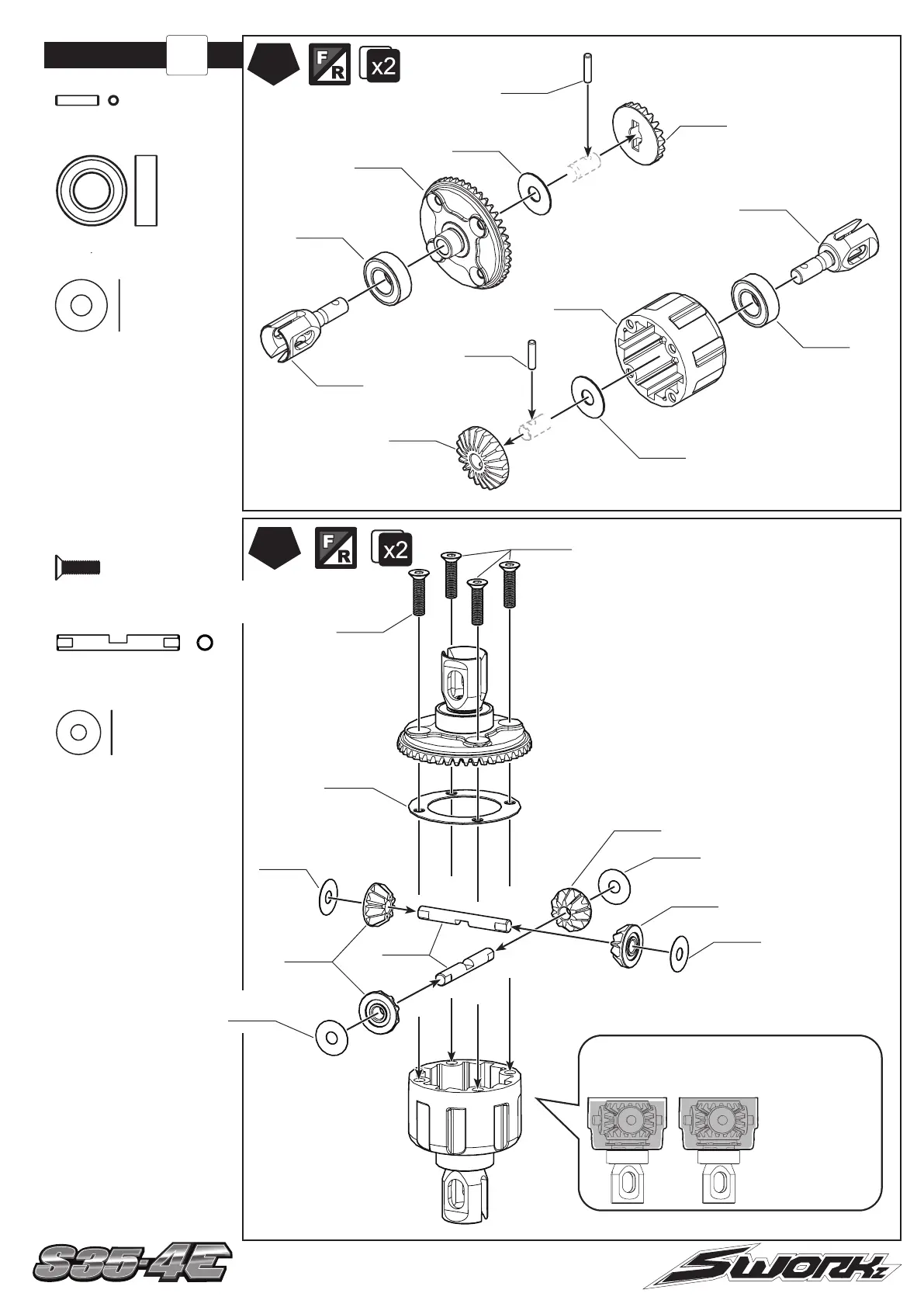

Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Di󰀨. Oil 7000cps
for the front Di󰀨.
and 3000cps for the
rear Di󰀨.
328001
328001
338025
328001
OK! NG!
108003
108003
338027
116006
330015
328001
101039
210091
116006
338024
101039
330015
328001
330015
Pin M2.2x9.9mm
x4
116006
Ball Bearing 8x16x5mm
x4
Remember to apply a light coat of
grease to the o-ring, then slide it over
the shaft of the out drive and seat it in
the di󰀨 case.
Insert the pin through the hole in the
di󰀨 case and through the hole in the
shaft of the out drive.
338027
101039
Washer 5x12x0.3
x2
338025
S35-3W Bevel Gear Shaft
x4
108003
M3x10mm FH/ST HEX Screw
x8
