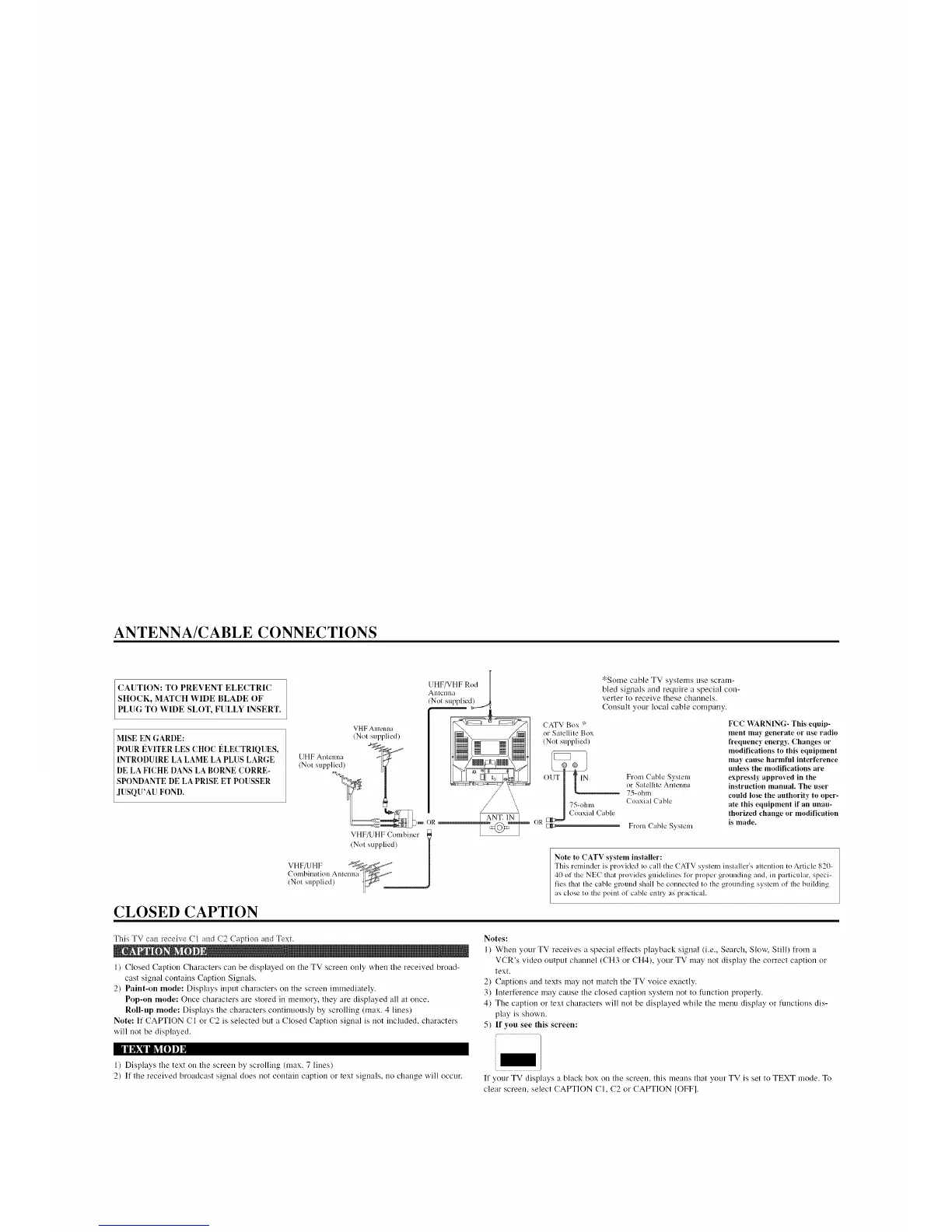

ANTENNA/CABLE CONNECTIONS
CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
MISE EN GARDE:
P(IUR EVITER LES CH(IC ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRE-
SPONDANTE DE LA PRISE ET POUSSER
JUSQU'AU FOND.
CLOSED CAPTION
VHF Antenna
(Not supplied)
UHF Antenna
(Not supplied)
VHF/UHF Combiner
(Not supplied)
VHF/UHF
Combinatic, n Antenna I_
(Not supplied) ]_"
UHF/VHF Rod l
antellna
(Nol supplied) _
_Some cable TV systems use scram-
bled signals and require a special con-
verter to receive these channels.
Consult your local cable company.
CATV Box _
or Satellite Box
(Not supplied)
From Cable System
or Satellite Antenna
75-ohm
Coaxial Cable
From (?able Systeln
FCC WARNING- This equip-
ment may generate or nse radio
h'equency energy. Changes or
modifications to this equipment
may cause harmful interl_rence
unless the modifications are
expressly approved in the
instruction mamml. The user
could lose the authority to oper-
ate this equipment if an unau-
thorized change or modification
is made.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-
40 of the NEC that provides guidelines lor proper grounding and, in particular, speci-
fies that the cable ground shall be connected to the grounding syslcm of the building
as close to the point of cable entry as practical.
This TV call receive C1 a_]d C2 Caption mid Text.
1) Closed Caption Characters can be displayed on the TV screen only when the received broad-
cast signal contains Caption Signals.
2) Paint-on mode: Displays input characters on the screen immediately.
Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)
Note: If CAPTION C1 or C2 is selected but a Closed Caption signal is not inckMed, characters
will not be displayed.
Notes:
1) When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a
VCR's video output channel (CH3 or CH4), your TV may not display the correct caption or
text.
2) Captions and texts may not match the TV voice exactly.
3) Interference may cause the closed caption system not to function properly.
4) The caption or text characters will not be displayed while the menu display or functions dis-
play is shown.
5) If you see this screen:
liH_3ilL_ [I]I] Pl
1) Displays the text on the screen by scrolling (max. 7 lines)
2) If the received broadcast signal does not contain caption or text signals, no change will occur.
If your TV displays a black box on tl]e screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C l, C2 or CAPTION [OFF].
To Next Page
