Jupiter
6408 216th Street SW | Mountlake Terrace, WA 98043 USA
T +1.425.778.7728 F +1.425.778.7727 | www.symetrix.co

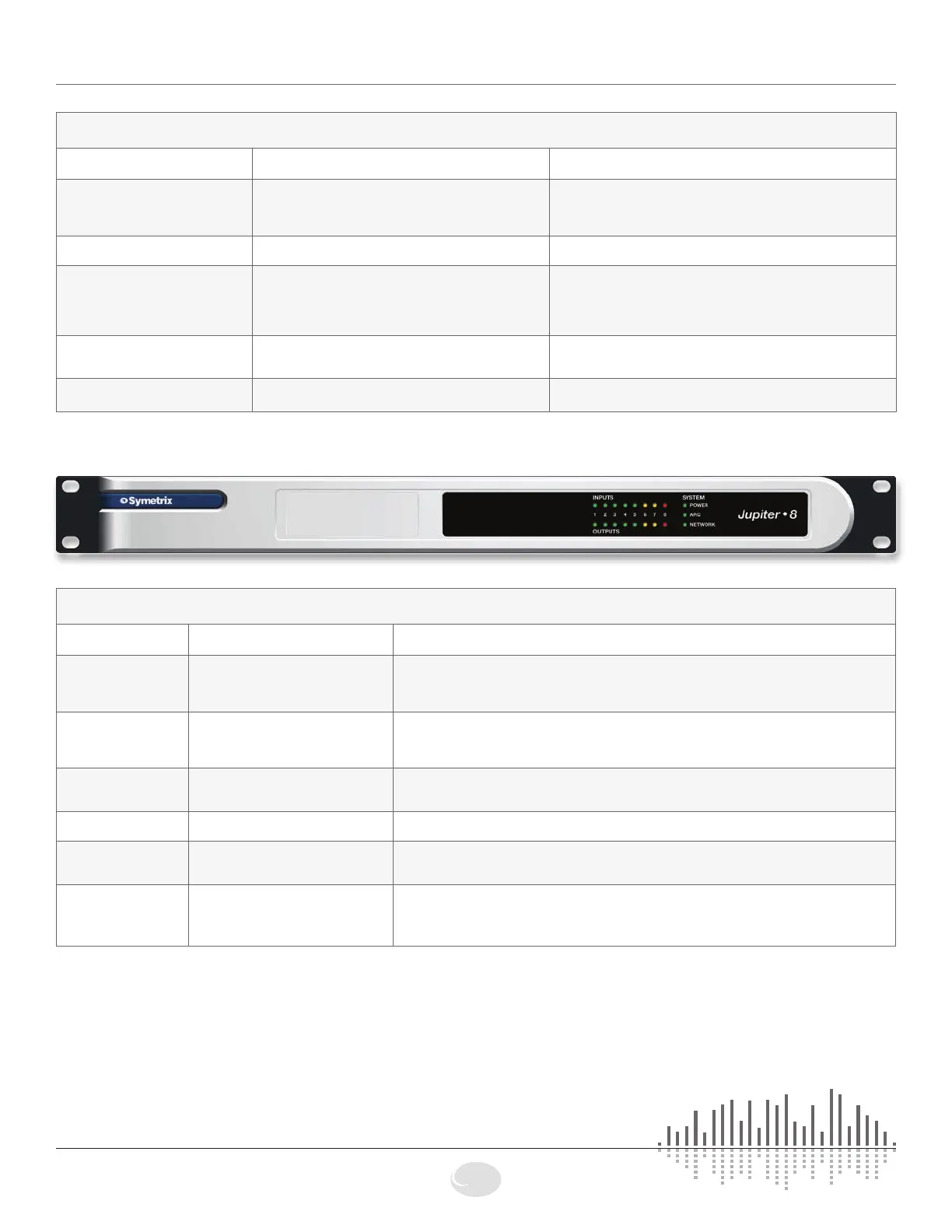

Front Panel
Item Description Comments
Inputs Four (4), eight (8) or twelve (12)
bi-colorLEDsonJupiter4,12or8
respectively.
Illuminategreentoindicatesignalpresent(>-48dBu),amberbetween0and+23dBuandredto
indicateclipping(>+24dBu).
Outputs Four (4), eight (8) or four (4) bi-color
LEDsonJupiter4,12or8respec-
tively.
Illuminategreentoindicatesignalpresent(>-48dBu),amberbetween0and+23dBuandredto
indicateclipping(>+24dBu).
Power GreenLED Illuminates to indicate the device is powered on and fully operational. Flashes while device is
booting.
ARC (LED)
GreenLED Illuminates to indicate ARC port (RS485) connection on the front or rear port.
Network
Bi-colorLED Illuminates green to indicate network (Ethernet) activity, amber to indicate acquisition of a network
address in DHCP mode.
ARC (Connector) RJ45 connector Distributes power and control data to Symetrix ARC wall panel remotes. Uses standard straight-
through UTP CAT5 cabling.
1
!
Warning! Refer to the RJ45 Warning for compatibility information.
MechanicalDataandFrontPanel
Mechanical Data
ITEM DESCRIPTION DETAILS
Space Required 1U(WDH:48.02cmx19.05cmx4.37cm/18.91inx
7.5inx1.72in),depthisspecifiedfromfrontpanelto
back of connectors.
Allowatleast3inchesadditionalclearanceforrearpanelcon-
nections. Additional depth may be required depending upon your
specific wiring and connections.
Electrical 100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
Ventilation
Maximumrecommendedambientoperatingtemperature
is30C/86F.
Ensure that the left and right equipment sides are unobstructed
(5.08 cm, 2 in minimum clearance). The ventilation should not be
impeded by covering the ventilation openings with items such as
newspapers, tablecloths, curtains, etc.
Certifications or Compliance
UL60065,cUL60065,IEC60065,EN55103-1,EN
55103-2,FCCPart15,RoHS
Shipping Weight 8lbs.(3.63kg)
All specifications and features subject to change without notice.
