AURORA WEBLINK (AWL) INSTALLATION GUIDE
5
IG2001EW

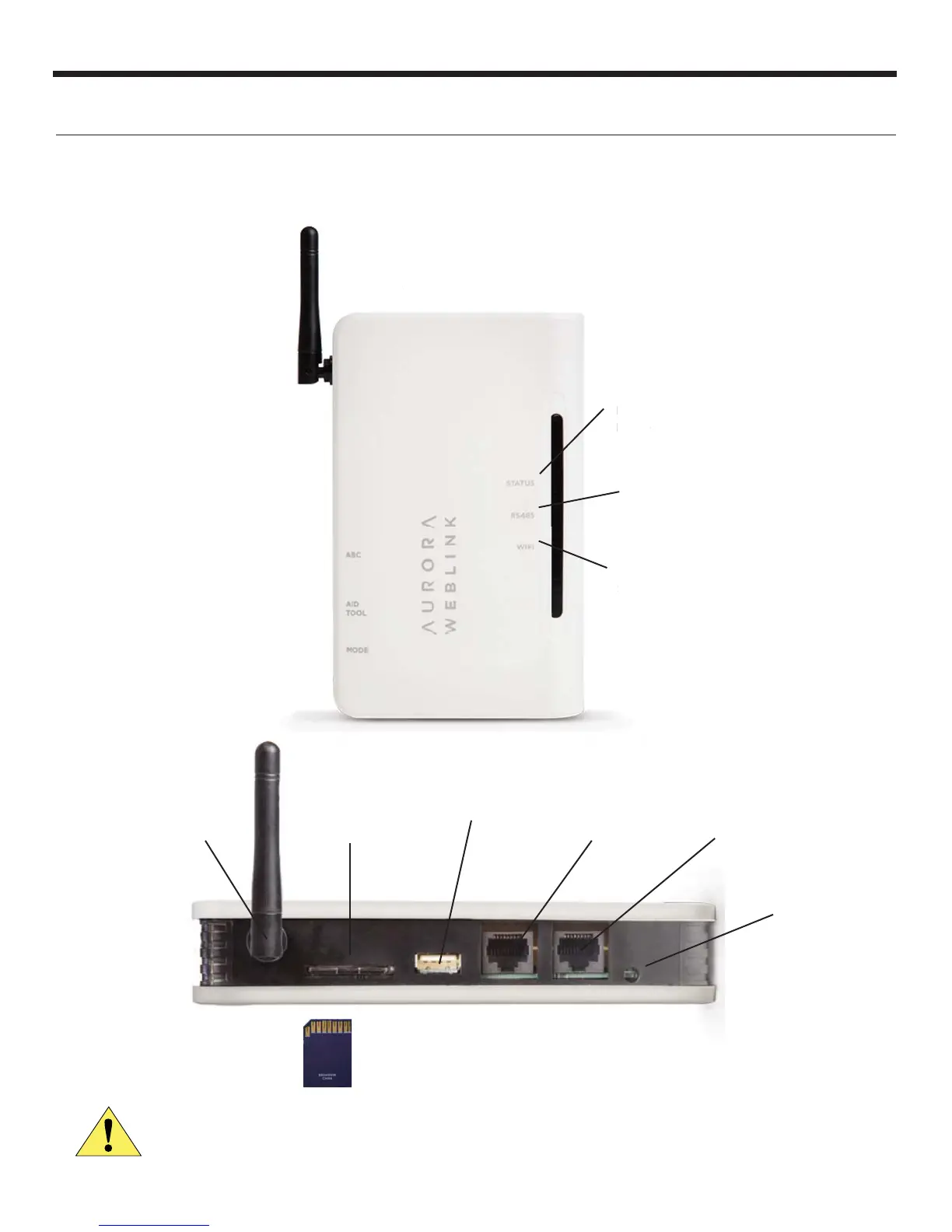

Aurora WebLink (AWL) Installation and Confi guration
Wi-Fi Blue
Wi-Fi Communication
Status
RS485 Yellow
ABC Communication
Status
Status Green
Local or WebLink
Mode
AWL LED’s
Orientation
The AWL can be installed either fl at, or standing up. The antenna needs to be in an upward position once the fi nal AWL
orientation is decided.
Mode Button
Switches
between
WebLink Mode
and Local Mode
AID Tool
Local AID Tool
Connection
(RJ-45)
Heat Pump ABC
Heat Pump ABC
Connection
(RJ-45)
USB Port
Factory Use
SD Card
Storage for “black
box data”
Wi-Fi Antenna
Wi-Fi Antenna to
local home router
W
i
-F
i
Wi-
Fi
S
tatu
R
S
4
A
B
C
S
ta
S
tatu
L
oca
l
M
od
e
A
WL LED’
s
Note: SD card must
be present for proper
operation of the AWL
These two RJ-45 connectors are not Ethernet ports. Never connect a laptop or router to the heat pump ABC, or
AID Tool ports. Damage to those devices will occur.
