SYNC 1.0 - Near Boiler Piping Connections

Installation & Operation Manual
Circulator sizing
The SYNC heat exchanger does have a pressure drop, which must be considered in your system design. Refer to the graph in
FIG. 5-4 for pressure drop through the SYNC heat exchanger.
Near boiler piping connections

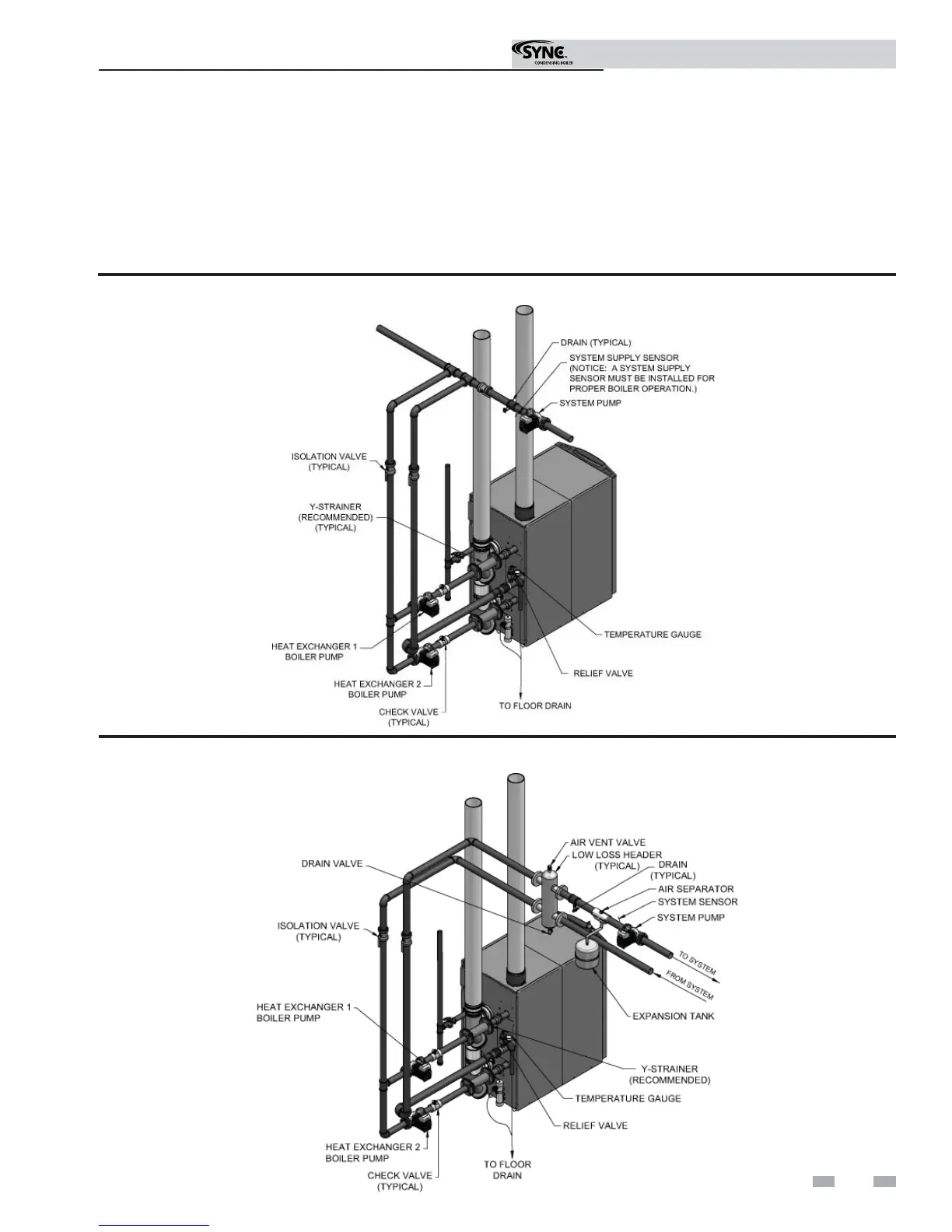

Figure 5-1A Near Boiler Piping w/Y-Strainer
5 Hydronic piping (continued)
Figure 5-1B Near Boiler Piping w/Low Loss Header
29
