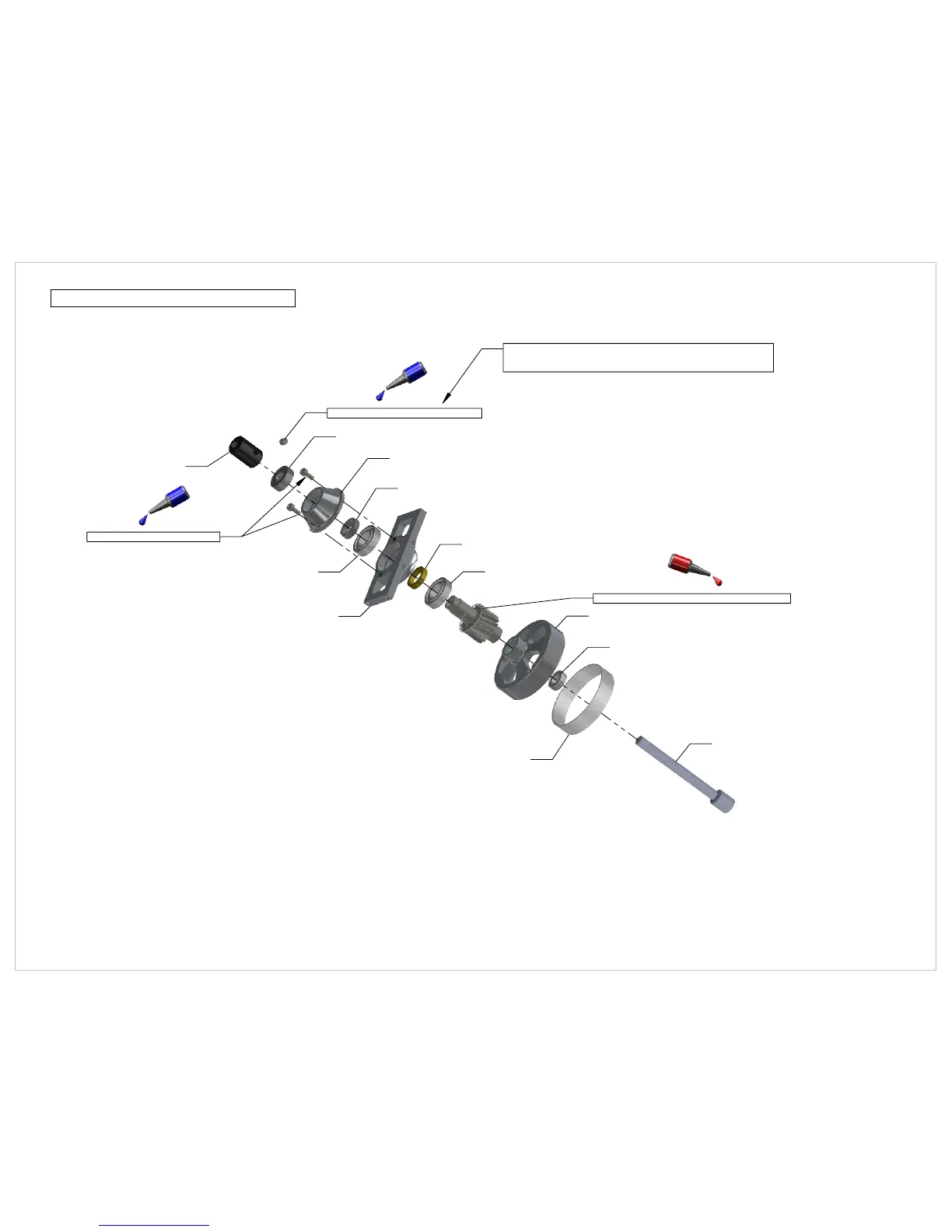

Synergy N7 - Upper Clutch Stack Assembly

317-206 Hex Adapter
108-615 6x15x5 Bearing
317-207 Start Shaft Support Bearing Block
100-464 M4x4 Flat Point Set Screw
317-203 Pinion Nut (DO NOT OVER TIGHTEN)
108-105 10x19x5 Bearing
317-202 Clutch Stack Bearing Block
109-103 10x14x3 Brass Spacer
108-105 10x19x5 Bearing
317-017 N7 Helical Pinion(Factory Installed)
610-125 Clutch Bell
108-614 6x12x4 Bearing
317-205 N7 Clutch Liner (Factory Installed)
317-204 N7 Start Shaft
100-266 M2.5x6 Socket Head
NOTE - Ensure set screw meets flat spot
on start shaft.
Upper Clutch Stack Assembly
Page 3
