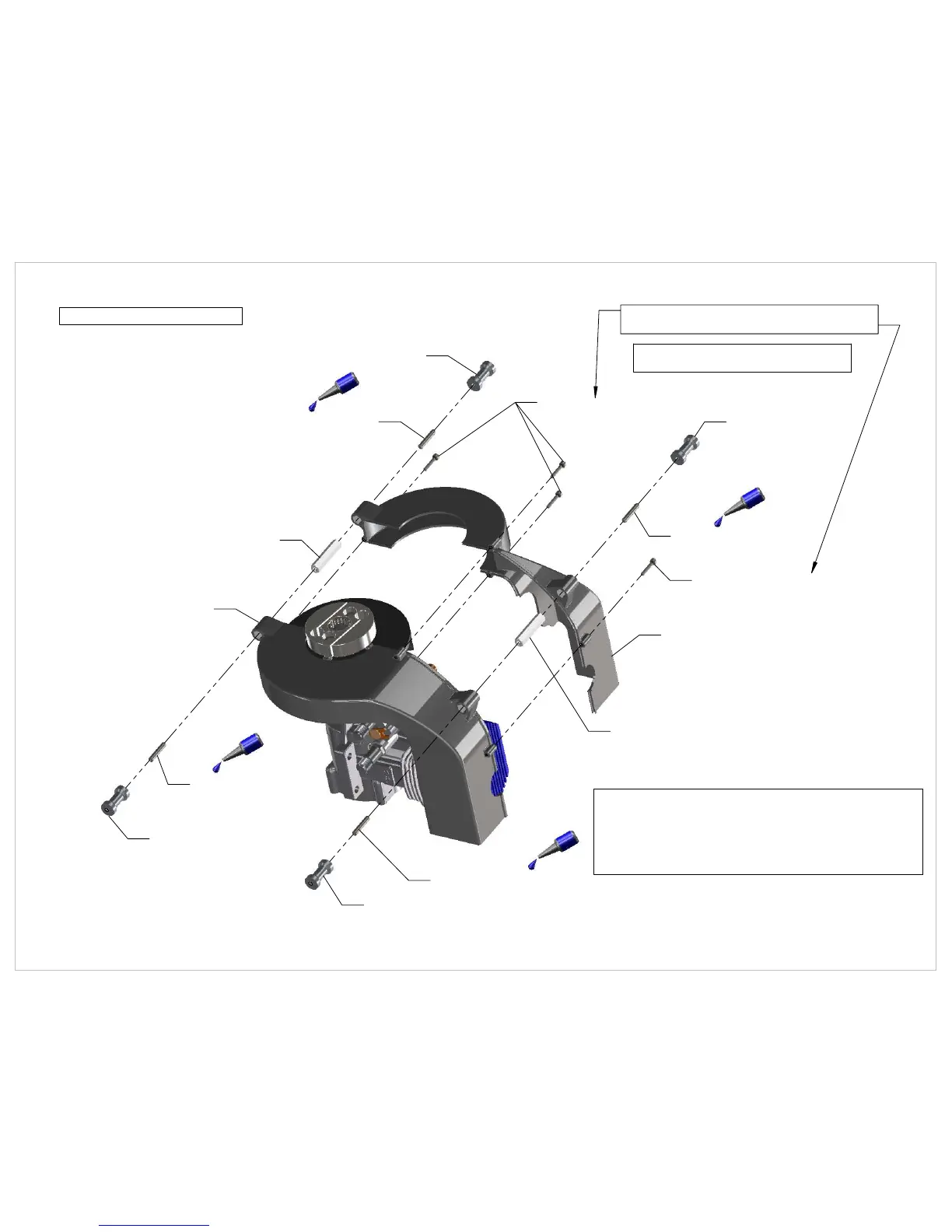

Synergy N7 - Fan Shroud Installation

317-403 Fan Shroud Spacer
317-403 Fan Shroud Spacer
100-376 M3x16 Set Screw
100-212 M2x12 Socket Head
106-326 26mm Hex Standoff
100-376 M3x16 Set Screw
100-212 M2x12 Socket Head
100-326 26mm Hex Standoff
317-403 Fan Shroud Spacer
317-403 Fan Shroud Spacer
NEVER APPLY LOCTITE TO BOLTS
SECURING INTO PLASTIC!!!
100-376 M3x16 Set Screw
100-376 M3x16 Set Screw
110-342 Fan Shroud Right
110-343 Fan Shroud Left
Important!
The included fan shroud will work with every
motor on the market as of 2013. However in
order to accommodate all of these motors,
the fan shroud will require modifications based
on your motor selection and muffler selection.
Fan Shroud Installation
DO NOT OVER TIGHTEN M2x12 BOLTS.
THESE ARE IN PLASTIC!
Page 5
