Preparation For Installation

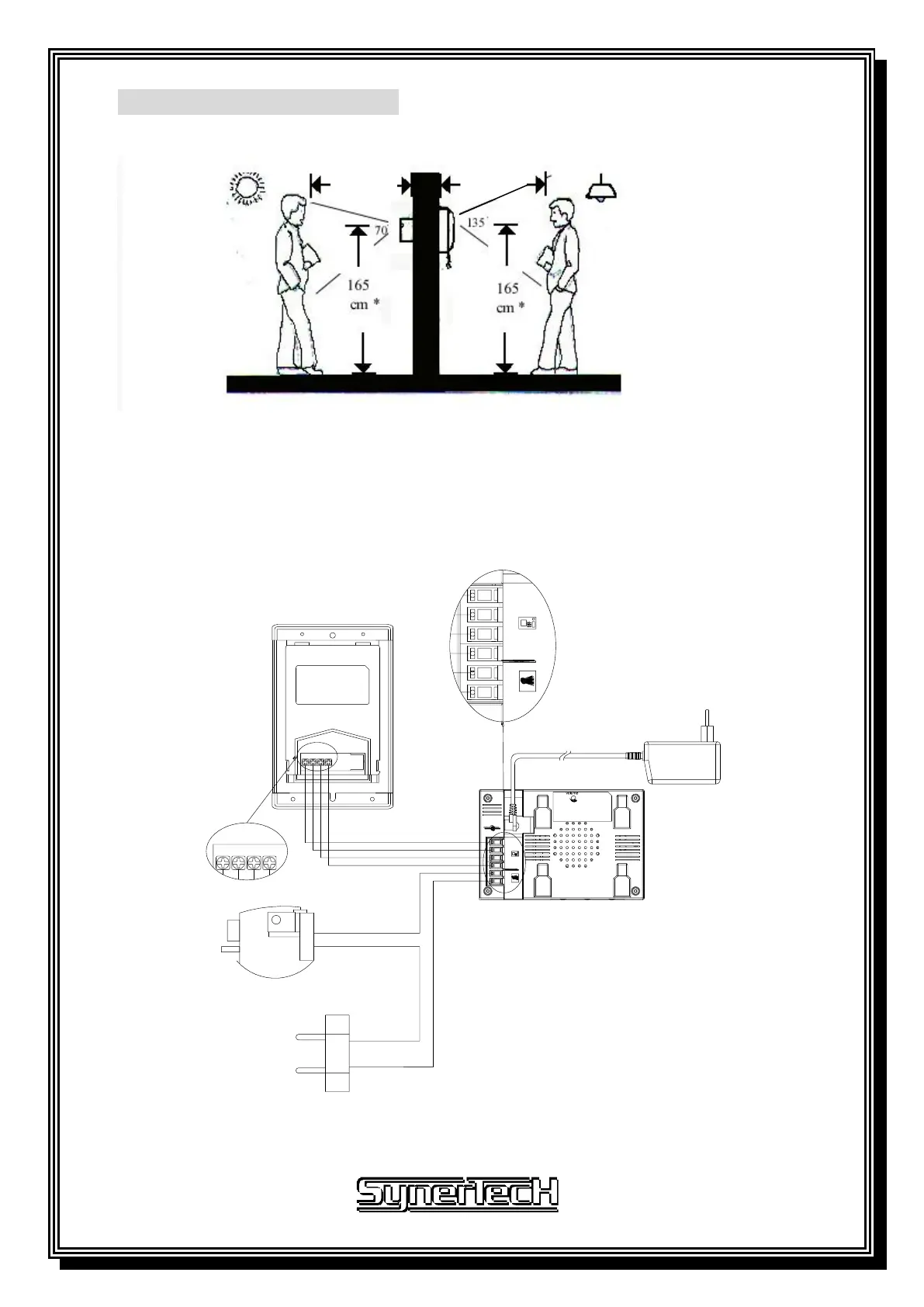

Recommended installation height (Fig.4)
Fig. 4
The above diagram shows the position of the camera set and the phone unit. Recommended
installation height is approximately 165cm* from the ground level for both unit.( In Asian
countries, the recommended height should be 150cm. )
Cable connection (Fig.5)
Fig.5.
30cm
30cm
a
1R 2W 3B 4Y
IV
Back side of camera
Door lock
Back side of monitor
DC Adapter
1R 2W 3B 4Y
Plug
1R
2W
3B
4Y
5K1
6K2
15Volts DC
-
+
1R
2W
3B
4Y
5K1
6K2
III
