Chapter 2: Hardware Setup
3

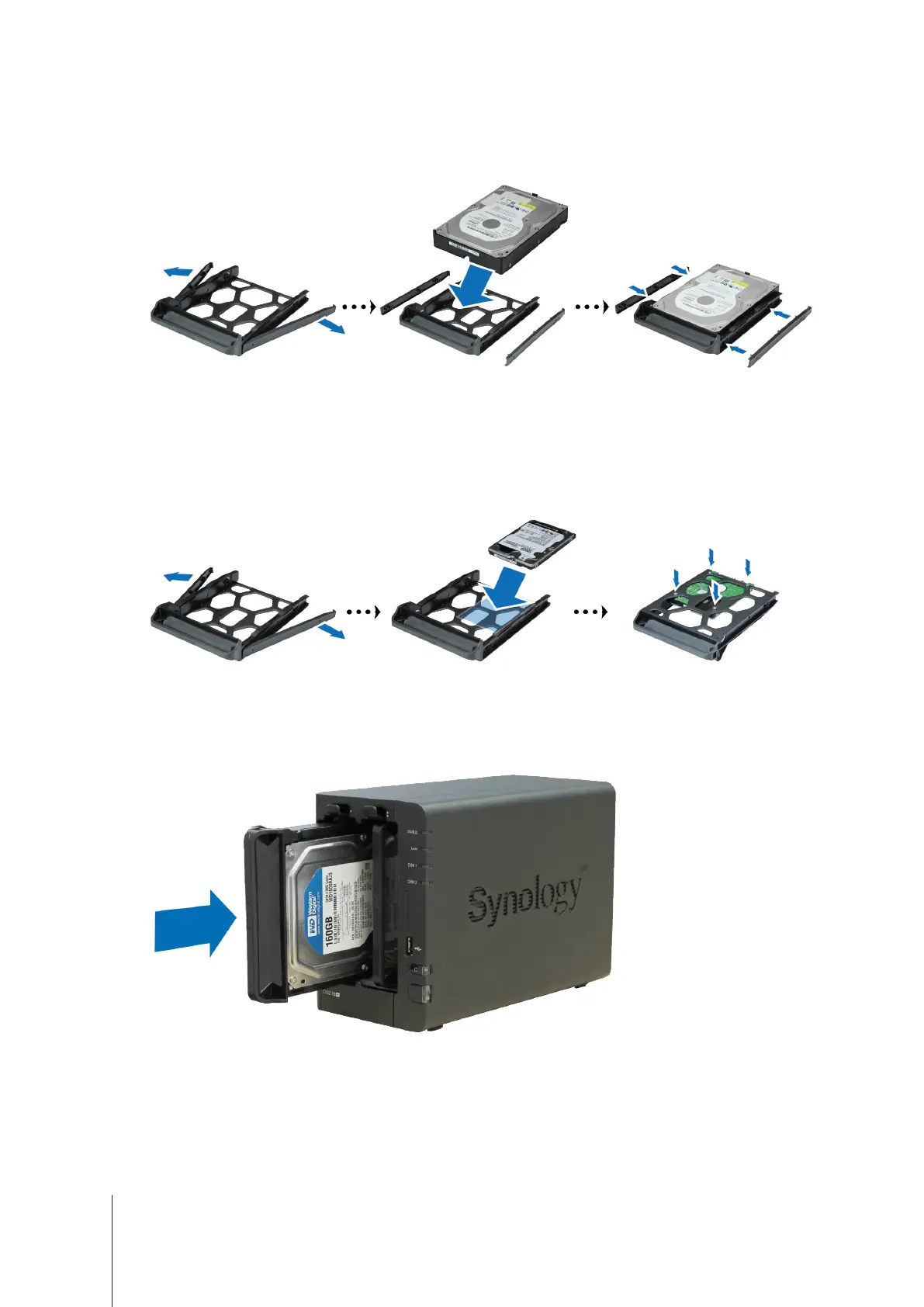

Load drives in the drive trays.
•
For 3.5” drives:
Remove the fastening panels from the sides of the drive tray. Place the drive in the drive
tray. Then insert the fastening panels to secure the drive in place.
•
For 2.5” drives:
Remove the fastening panels from the sides of the drive tray and put them in a safe place.
Place the drive in the blue area (shown below) of the drive tray, turn the tray upside down, and then tighten
the screws provided to secure the drive.
4
Insert the loaded drive tray into the empty drive bay. Make sure the side marked with
"UP
" is facing up, and
insert the drive tray into the empty drive bay. You should hear a click when the tray is locked in place.
5
Repeat the steps above to install the other drive if you have prepared one.
