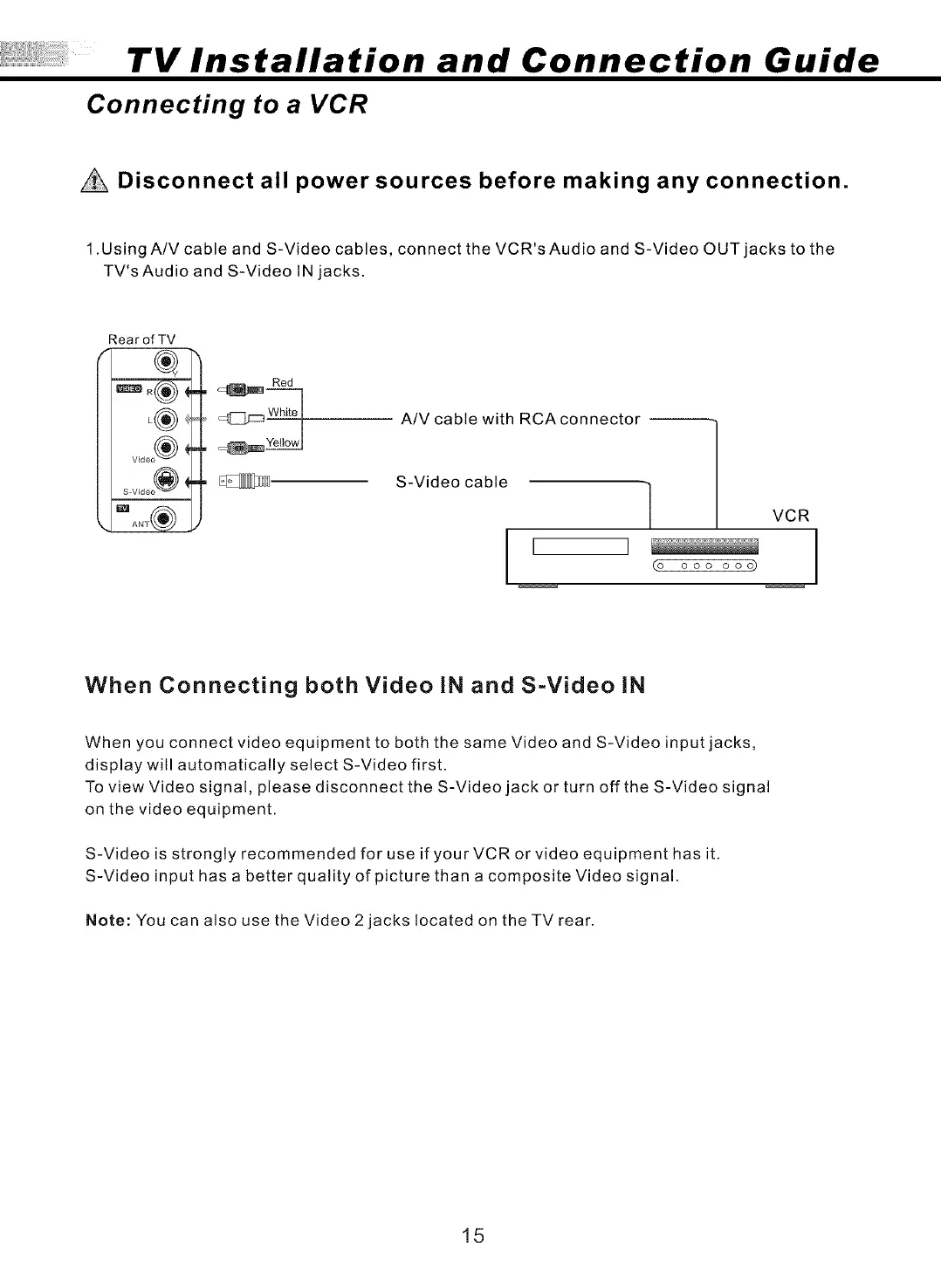

TV Installation and Connection Guide
Connecting to a VCR
Disconnect all power sources before making any connection.
1.Using A/V cable and S-Video cables, connect the VCR's Audio and S-Video OUT jacks to the
TV's Audio and S-Video tN jacks.
Rear of TV
Red
A/V cable with RCAconnector --
S-Video cable
VCR
(o ooo ooo)
When Connecting both Video IN and S-Video iN
When you connect video equipment to both the same Video and S-Video input jacks,
display will automatically select S-Video first.
To view Video signal, please disconnect the S-Video jack or turn off the S-Video signal
on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has it,
S-Video input has a better quality of picture than a composite Video signal.
Note: You can also use the Video 2jacks located on theTV rear.
