Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

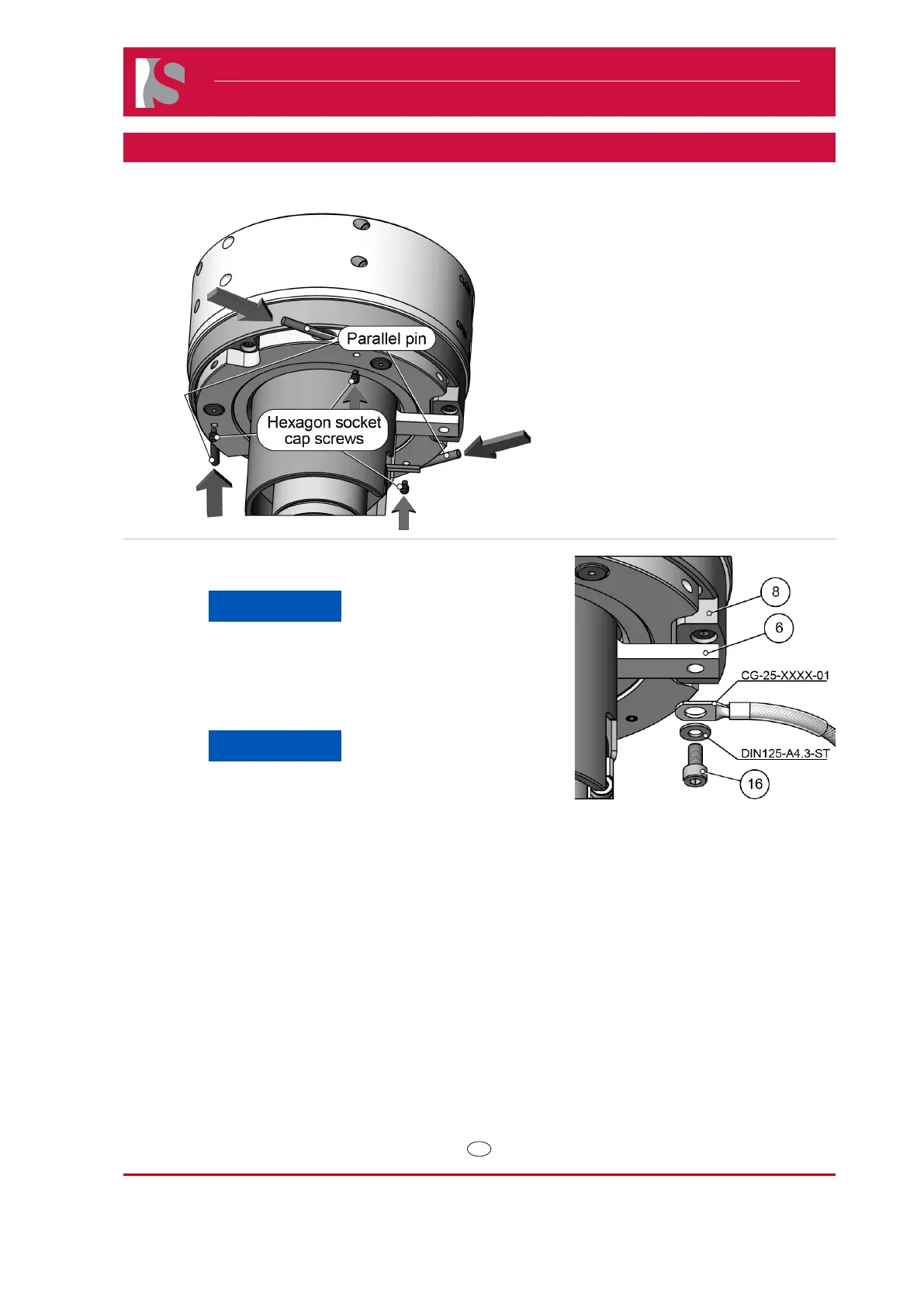

13) Mount the parallel pin and lock it with
the socket head cap screw.
14) Check the position of the cooling bar (6) on the actuator (8).
NOTICE
The cooling bar (6) must be easily movable to be positioned
on the actuator (8). If this is not possible, contact Synventive
customer service.
15) Tighten the ground wire with a socket cap screw (16) on the cooling
bar (6).
NOTICE
Note the arrangement of the components shown in the figure
(Doc007414.png) on the right side.
