Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

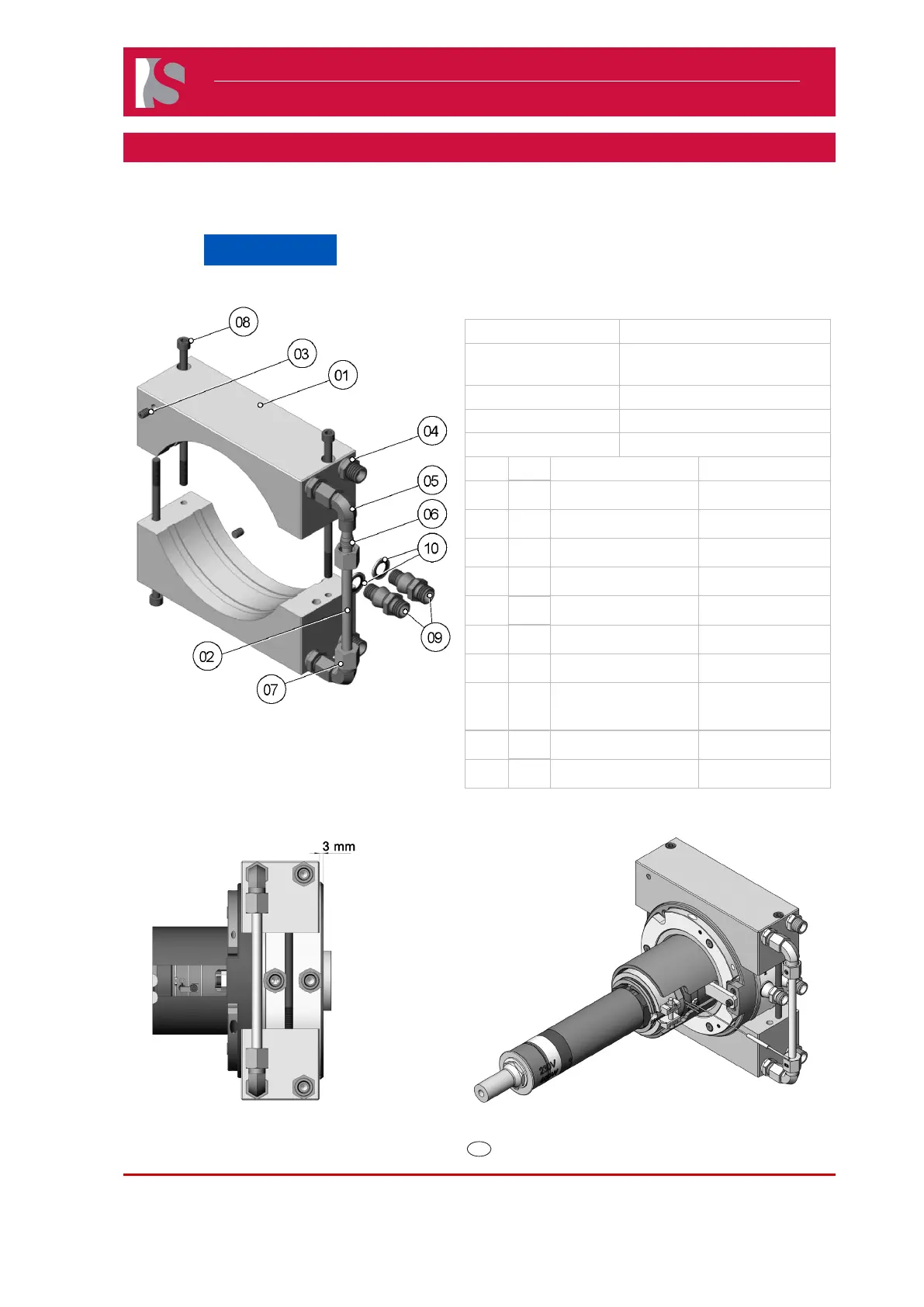

Technical Data / Exploded View - Cooling Unit CU16SVH01
NOTICE
If the mold temperature is 80 °C (176 °F) or more, the Cooling Unit CU16SVH01 is required.
Technical Data CU16SVH01
Method: Cooling water
Temperature: min. 30 °C / max. 60 °C
Temp. difference IN/OUT max. 5 °C
Flow rate per unit: 4 l/min
Pressure: max. 8 bar (116 psi)
Connections: M14x1.5 (10-L)
Pos. Qty. Part Number Description
01
2
CU16SVHCS01 Cooling Sleeve
02
1
CU16SVHCT01 Connecting Tube
03
2
Z942/6 Sealing Plug
04
4
GE08LMEDVITOMDCF Straight Coupling
05
2
EW08LVITOMDCF Elbow Coupling
06
2
PSR08LX Cutting Ring
07
2
M08LCFX Nut
08
3
DIN912-M6x120-12.9 Hexagon Socket Cap
Screw
09
2
XAA01201401 Straight Coupling
10
2
12.7X18X1.5USSFPM Bonded Seal
Position of the cooling unit on the nozzle head.
CU16SVH01 mounted on Single Axis Valve Gate Nozzle 16SVH
