Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH
10.3.2.1 Single Axis Valve Gate Nozzle 16SVH Parts List

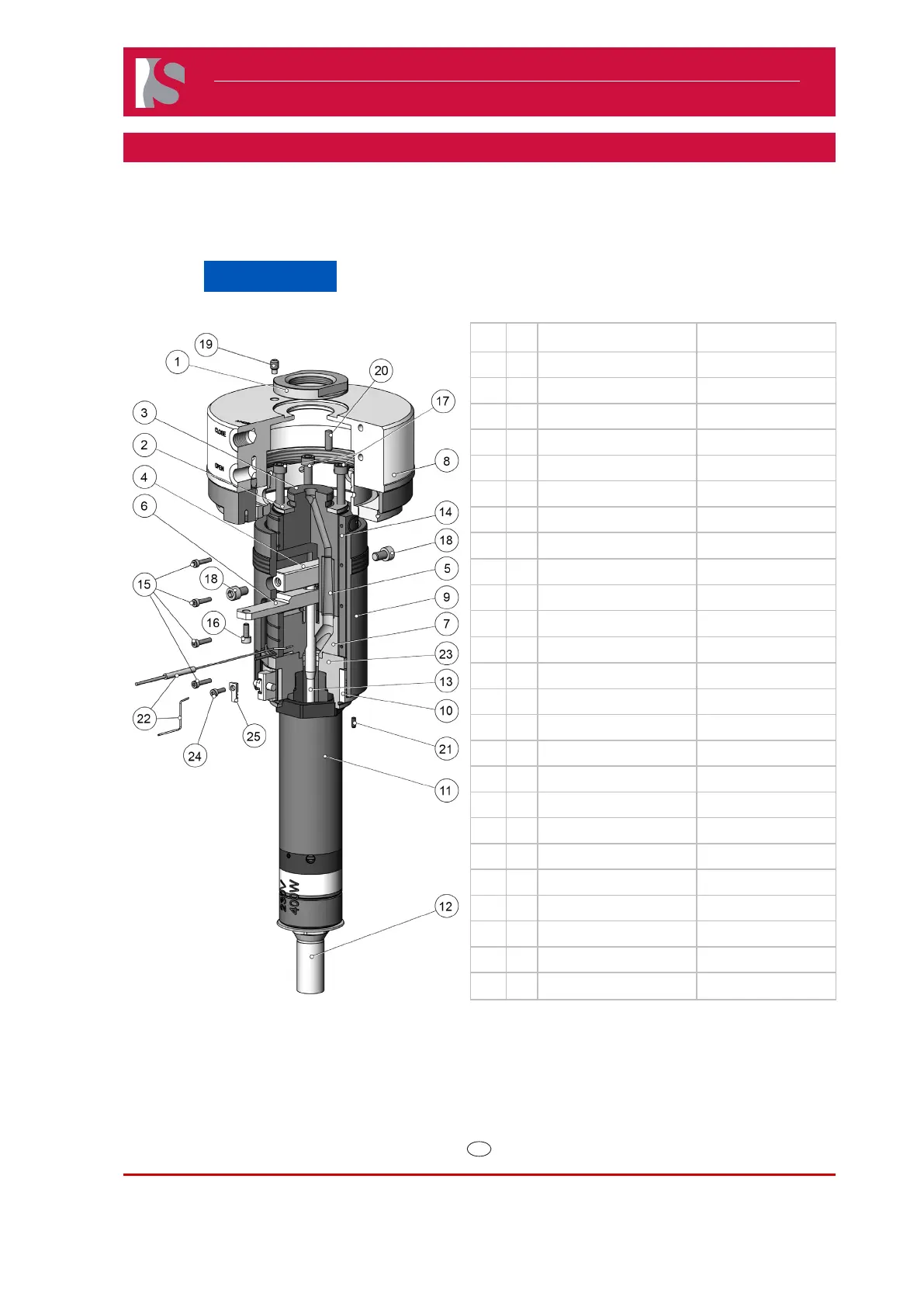

In this section the nozzle parts are identied with the numbers indicated in the following gure.
NOTICE
Always tighten the screws to the torque specified in the respective table in section 13.
Pos. Qty. Description Part Number
1 1 Isolation nut GBN0010S
2 1 Isolation ring GBN0020S
3 1 Nozzle head top GBN0031S###
4 1 Bridge GBN0041S
5 2 Sealing sleeve GBN0050S
6 1 Cooling bar GBN0060S
7 1 Nozzle head bottom GBN0071S
8 1 Actuator HYC2314S01
9 1 Guide sleeve 16SVP-S-01
10 1 Heater band HT-060-025-01
11 Nozzle body complete 16E04 (varied)
12 1 Shutoff nozzle tip (varied)
13 1 Shutoff valve pin (varied)
14 1 Heater band HB571071
15 4 Hexagon socket cap screw DIN912-M3X14-12.9
16 1 Hexagon socket cap screw DIN912-M4X12-12.9
17 4 Hexagon socket cap screw DIN912-M6X110-12.9
18 2 Hexagon socket cap screw DIN912-M6X10-12.9
19 1 Hexagon socket set screw DIN915-M6X10-45H
20 1 Parallel pin DIN6325-5M6X16
21 1 Parallel pin DIN6325-3M6X8
22 2 Thermo couple XTA00115001
23 1 Head body 16SVPHB-01
24 1 Hexagon socket cap screw DIN912-M3X10-12.9
25 1 Clamping device GAN0170S
