Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

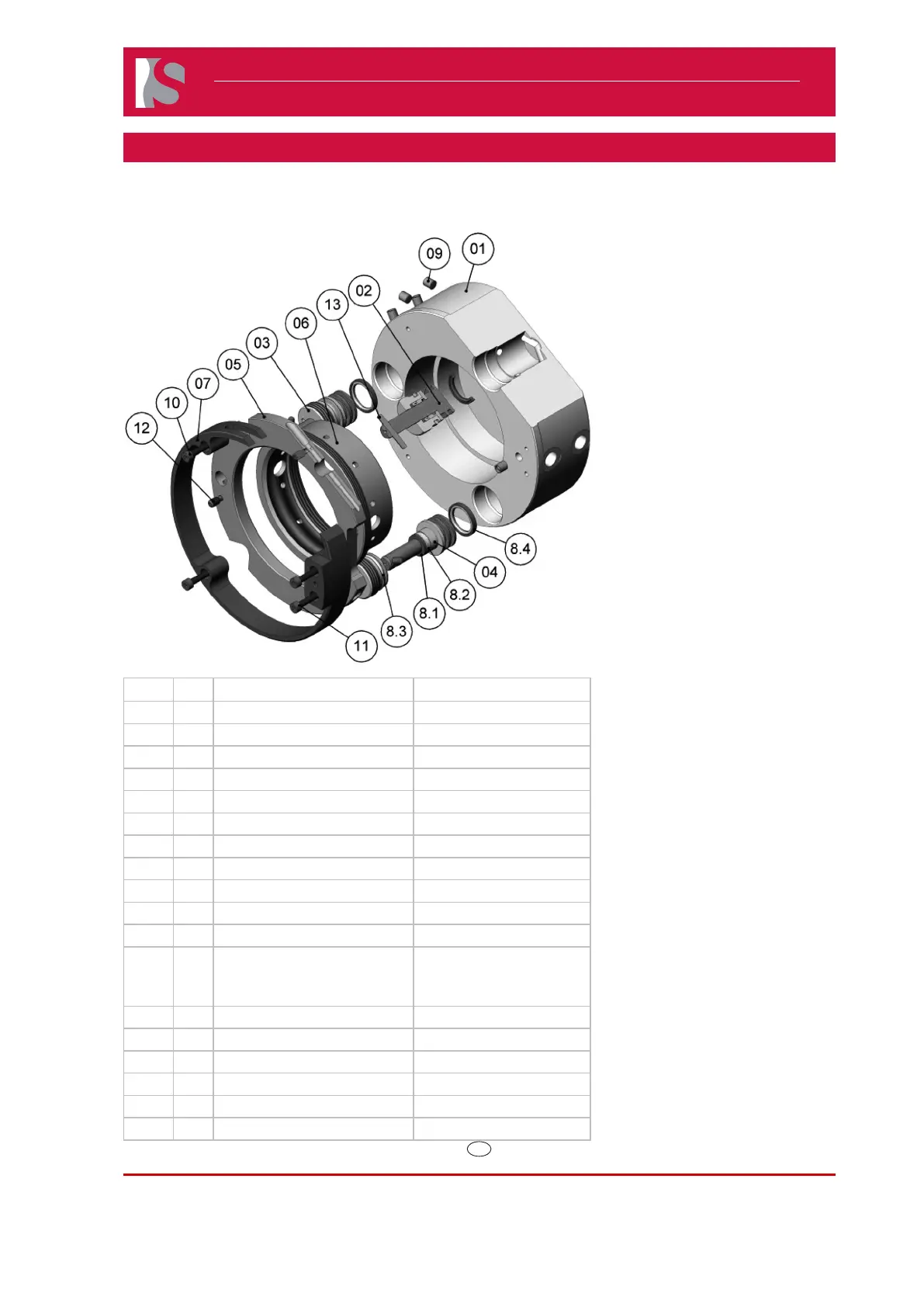

Actuator HYC2314S01 Parts List
Pos. Qty. Description Part Number
01 1 Actuator housing HYC2314CH01
02 3 Piston D23 HYC2314PI01
03 3 Gasket locator HYC2314GL01
04 3 Gasket locator cover HYC2314GC01
05 1 Suspension ring HYC2314SR01
06 1 Adjustment bushing HYC2314AB01
07 1 Protection ring HYC2314PR01
08 1 Seal kit complete HYC2314SK01
8.1 3 Back up ring 10x15x2 Y21015PS030
8.2 3 Rod seal C1-1005-V3664
8.3 3 O-ring seal VIOR20.29X2.62FPM80
8.4 3 Piston seal
(Compact sealing ring consist of
an O-ring and a sealing element).
2G0-23X17X2.85
8.5 3 Guiding element FB2.3-1.5L33
09 13 Sealing plug MB600060
10 2 Hexagon socket cap screw DIN912-M4X16-12.9
11 2 Hexagon socket cap screw DIN912-M4X25-12.9
12 3 Set screw DIN915-M4X6-45H
13 3 Parallel pin DIN6325-4M6X28
