H O T R U N N E R T E C H N O L O G Y
Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

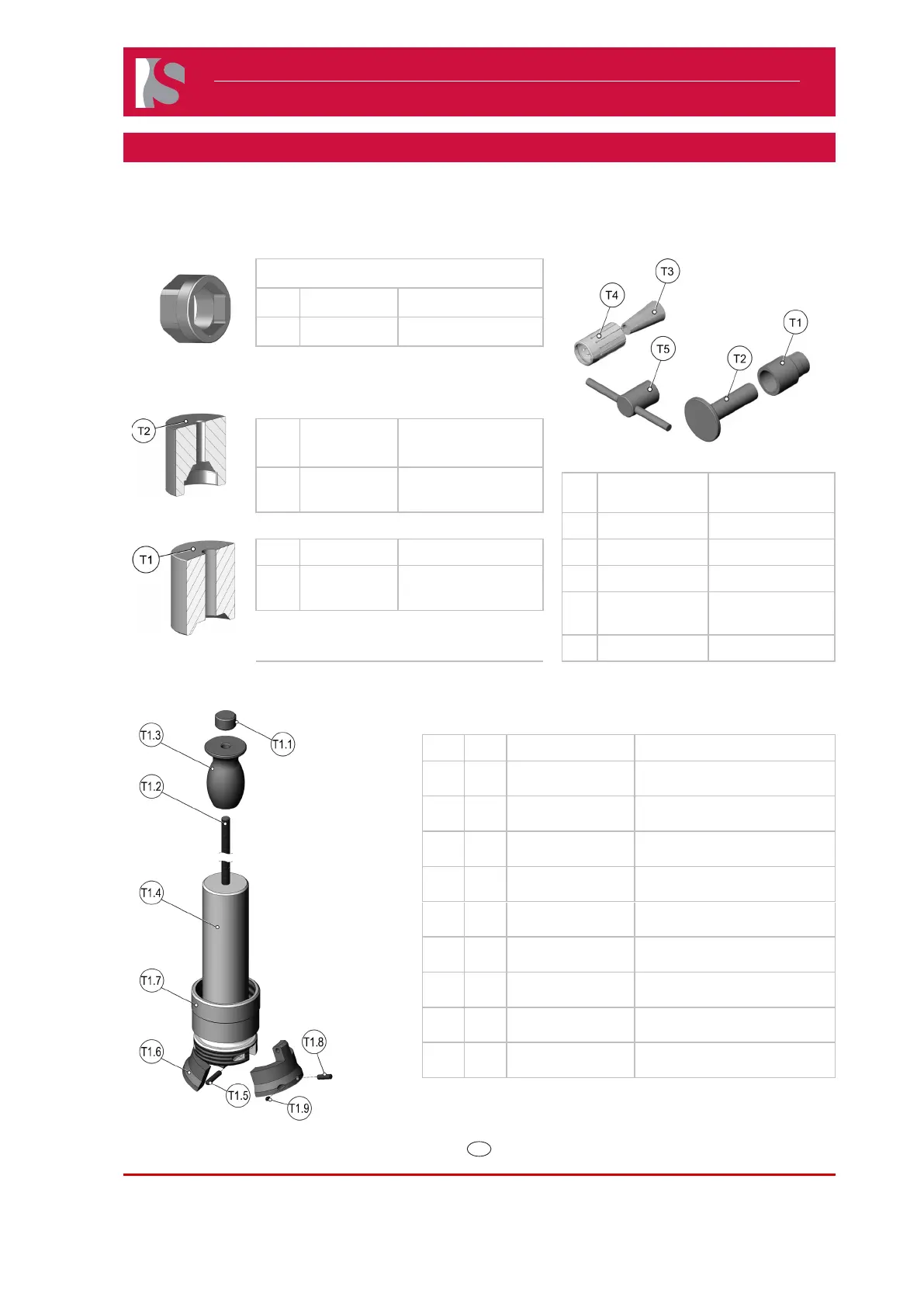

Assembly Tools
In this section the Stripping and Mounting Tool parts are identied with the numbers indicated in the following gure.
Nozzle Disassembly Tool
Pos. Part No. Description
T1 AT16S-01 Adapter
Pos. Part No. Description
Montagewerkzeuge für Kolbendichtungen
T2 AT-16-040102 Assemble Tool for
Seal Cap VSW
Pos. Part No. Description
T1 ATCYL1101 Calibration sleeve
Pos. Part No. Description
T2 ATCYL1002 Mounting tool
T1 AT-16-040101 Assemble Tool for
Seal Cap VSW
T3 ATCYL1103 Installation cone
T4 ATCYL1104 Spread tube
T5 ATCYL1005 Wrench complete
Heater Disassembly Tool Compl. AT16E-0102
Heater Stripping Tool for 16E / 16S Nozzle AT16E0102
Pos. Qty. Part No. Description
T1.1 1 ATCYL0104 Stop bolt
T1.2 1 ATCYL0102 Guide
T1.3 1 ATCYL0101 Slide Hammer
T1.4 1 AT16E010201 Disassembly tube 16E
T1.5 2 DIN6325-6M6X30 Parallel pin
T1.6 2 AT16E010202 Clamping jaws
T1.7 1 AT16E010203 Clamping ring
T1.8 2 DIN6325-6M6X20 Parallel pin
T1.9 2 DIN916-M4X6-45H Set screw
