Video input & output expansion

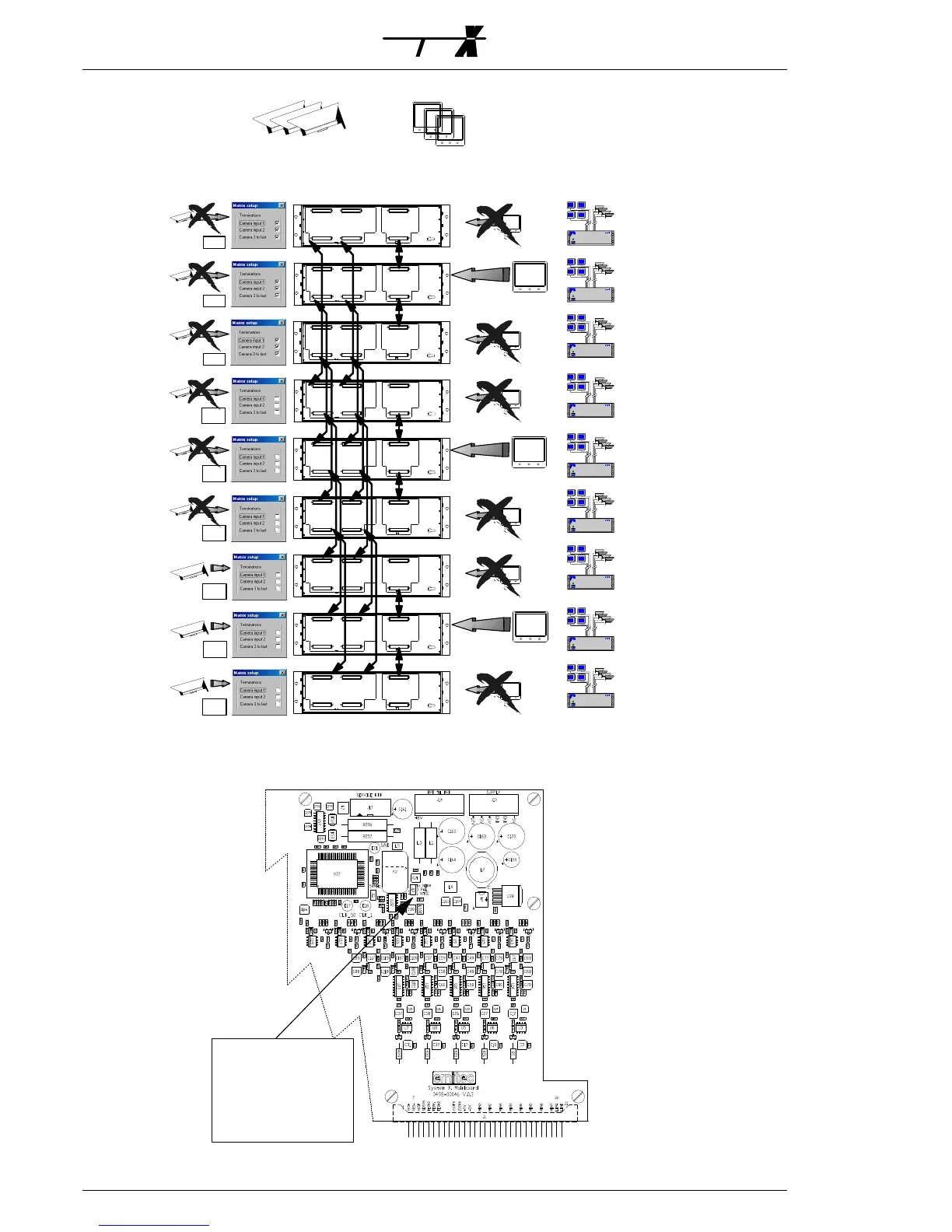

Example: 96 input / 48 output matrix
+
75
Ω
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
XLOOP350
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
LOOP CAM. 1-16
LOOP CAM. 1-16 LOOP CAM. 17-32
LOOP CAM. 17-32
LOOP MON.
LOOP MON.
M3216AX: 17-32
M3208AX: 9-16
75
Ω
75
Ω
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Hi-Z
1-32
33-64
65-96
XLOOP675
C1-32, M1-16
C33-64, M1-16
M3216AX: 1-16
M3208AX: 1-8
C65-96, M1-16
C1-32, M17-32
C33-64, M17-32
C65-96, M17-32
C1-32, M33-48
M3216AX: 33-48
M3208AX: 17-24
C33-64, M33-48
C65-96, M33-48
JP 12 Video Standard
Selection:
Disabled: PAL/CCIR.
Enabled: NTSC/RS-170.
Note:
Reboot after changes.
Note:
On M3216AX set on
both top and bottom PCB.
Video Standard Selection
