SystemAir EC Series

| 83
206268 | A024

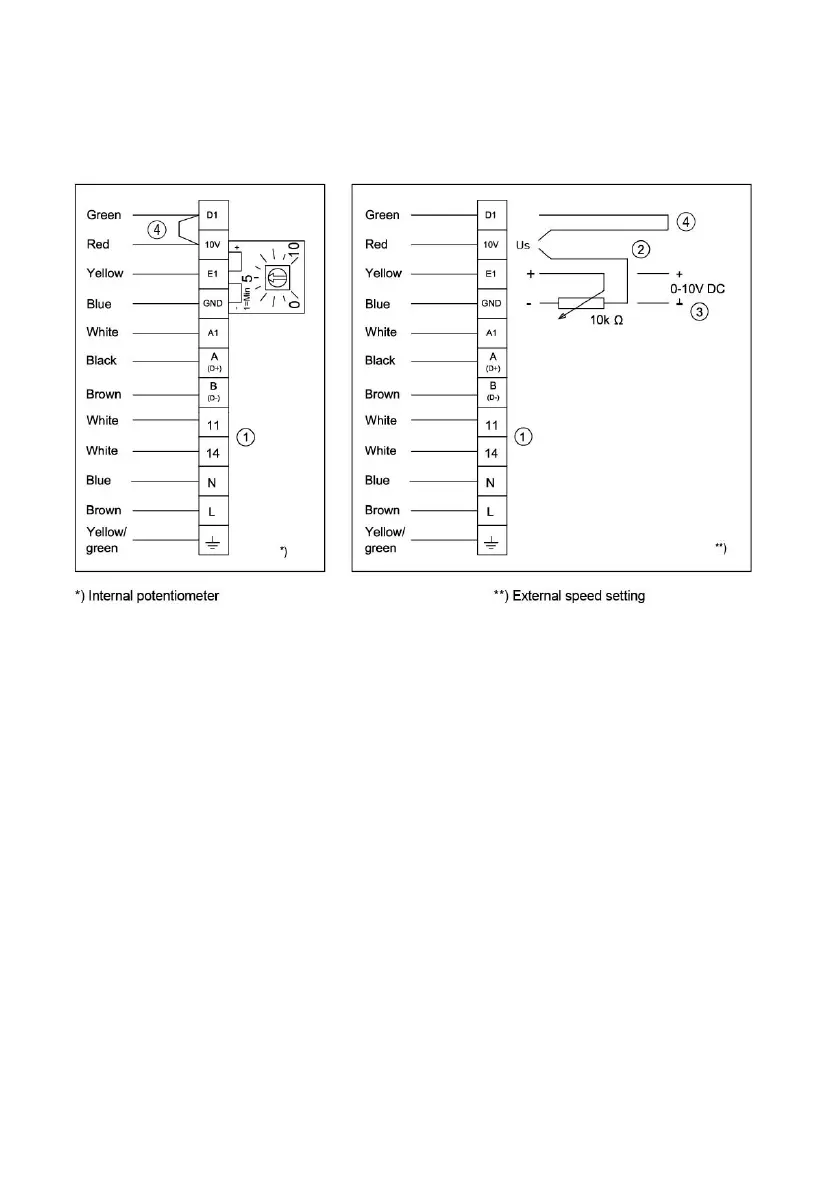

KD EC, RS EC, RSI EC
For KD 315EC, 355EC
1 11 & 14 = Alarm
For operation the relay is energized, connections “11” and “14” are bridged.
For fault the relay is de-energized (Diagnostics/faults).
Contact rating max. AC 250V 2A.
2 External potentiometer
3 External input DC 0…10V
4 Exterbal ON / OFF control via potential free contact
