Introduction
Systemline E50 is an installed Bluetooth Hi-Fi system that is easy to fit into your room.
It is particularly suited to kitchens or bedrooms but could equally be used in any other
room in the house except for bathrooms or wetrooms.
The following instructions assume that you are competent in general electrical
installation skills. You will need to mount a touch panel into a double gang back box
and route cables from this box to the speakers and mains. If you are not confident in
doing this you should seek professional assistance from a qualified electrician.
It is possible to connect TV sound or another device into the rear or front line input.
This is shown on the system schematic.

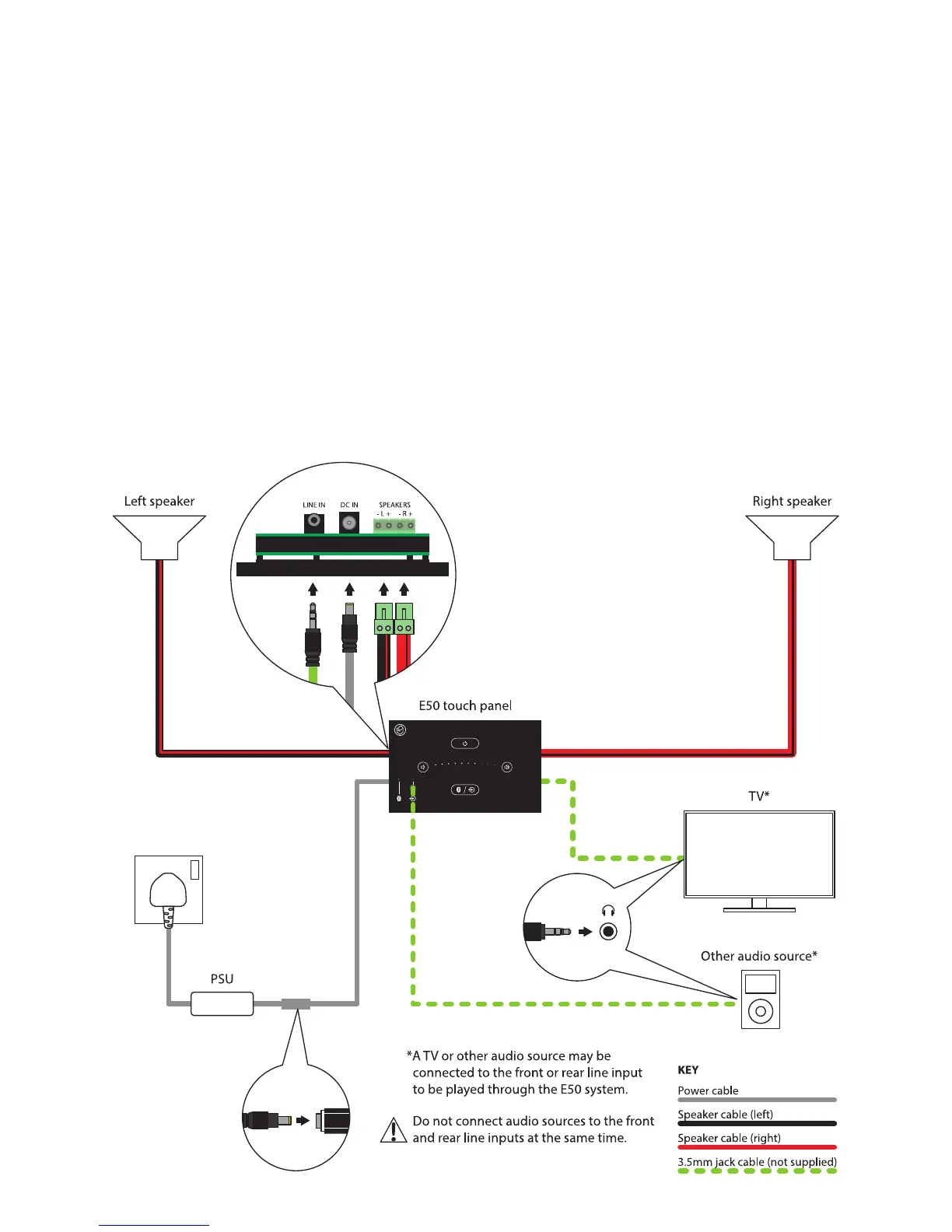

E50 System Schematic
The system is designed to be connected together as shown below:
