Systemline E50 - Page 6

6

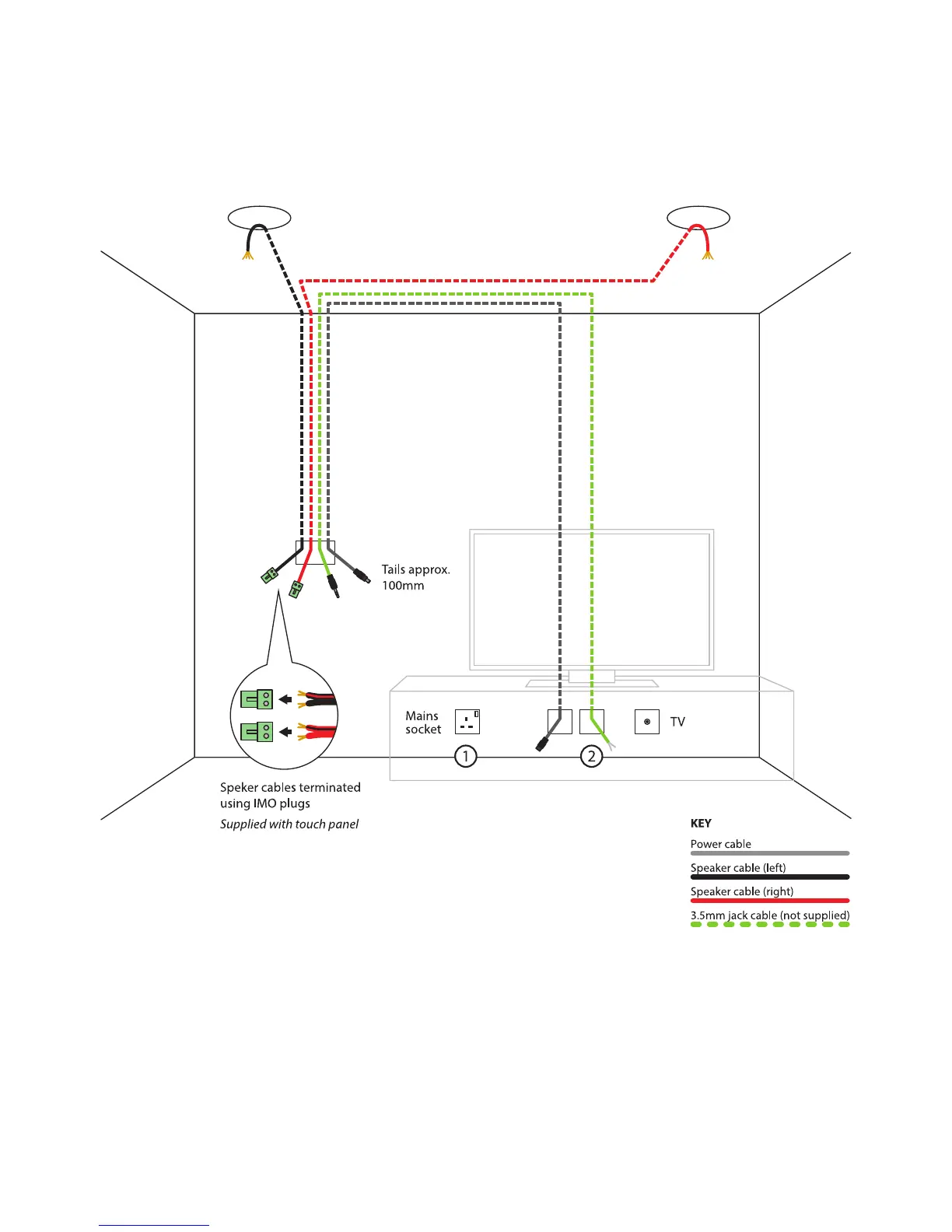

First Fix Wiring
Cut holes for required back boxes and speakers. Run speaker cables and power cable as
shown, leaving the tails accessible for second fix. Optional line-in cable may be run at
this point.
Notes
1. Switched mains socket required next to cable break-out box.
2. Single gang back-box required next to TV aerial point for optional TV sound / AUX
input.
