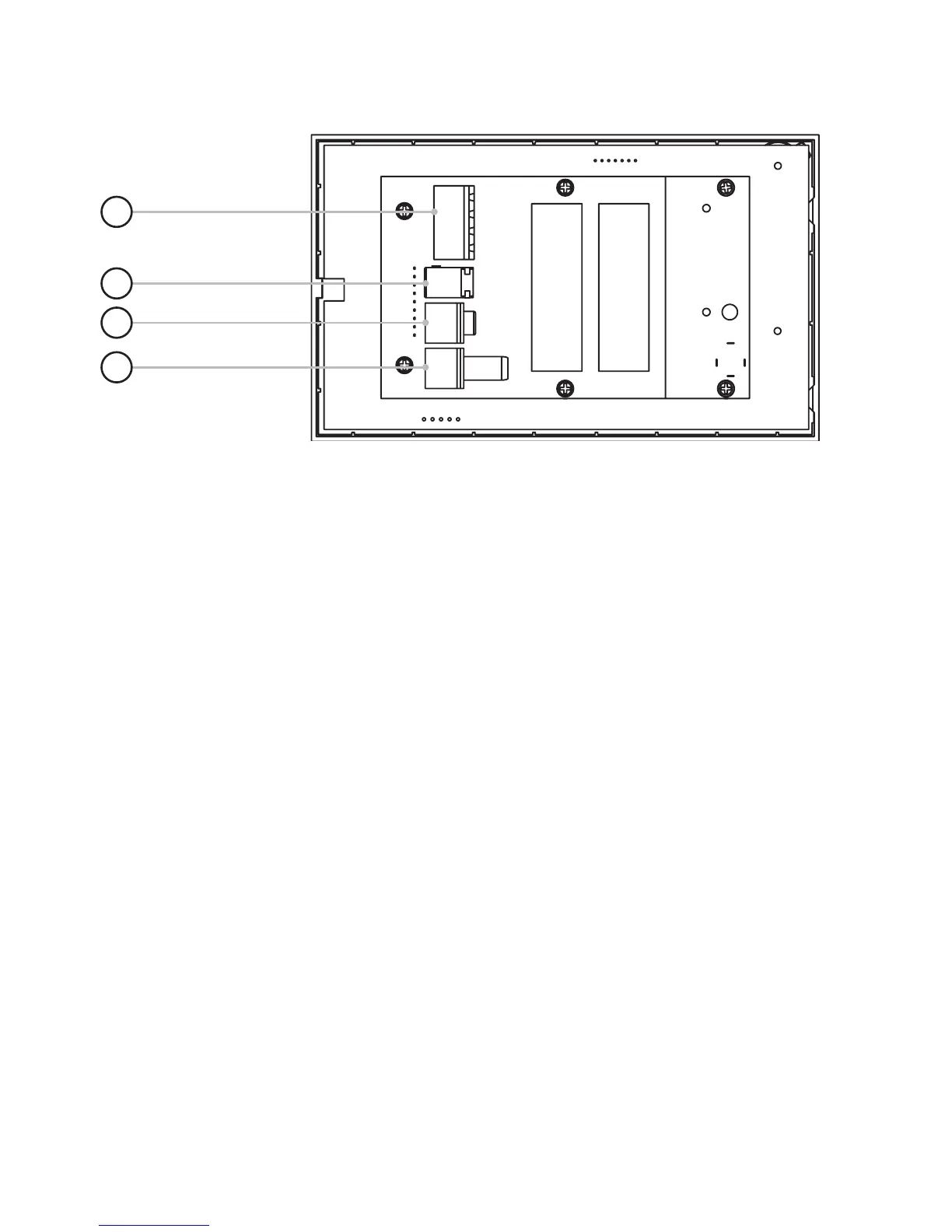

14.0 Rear panel connections
1. Power input
Use ONLY the power supply provided with the unit. Failure to do so may cause
irreparable damage to the E100.
2. Analogue auxiliary input
An analogue input can be connected using a suitable stereo audio cable available
separately.
3. Speaker outputs
Use the green terminal blocks provided to attach the speakers – take care to ensure
that the polarity is correct.
4. DAB/FM Aerial connection
Use the supplied cable.
Note: Please refer to the supplied 1st & 2nd fix instruction documents for further information.
