t.a.c. Satchwell Climatronic CSC5252 User Manual

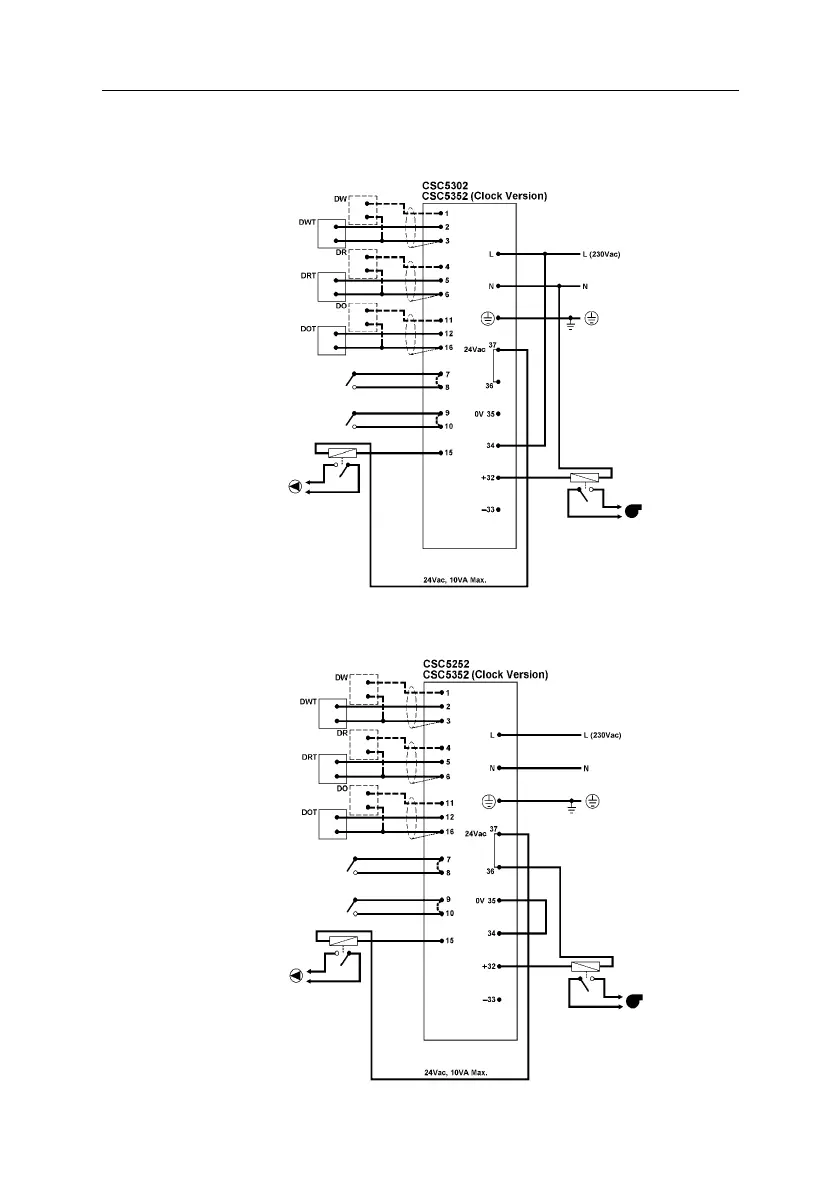

3.2.1. Basic Wiring Diagram for Compensated Boiler Control
Fig.5
Fig.6
Links 7-8 and/or 9-10 must
be removed if Set-up
and/or Night Set Back is
used.
Set-Up/Boost
Night Set-Back
Pump
Time-switch
version only
230Vac Boiler Output
Boiler
Links 7-8 and/or 9-10 must
be removed if Set-up
and/or Night Set Back is
used.
Set-Up/Boost
Night Set-Back
Pump
Time-switch
version only
24Vac Boiler Output
Boiler
CSC USER GUIDE October, 03
15 of 42
