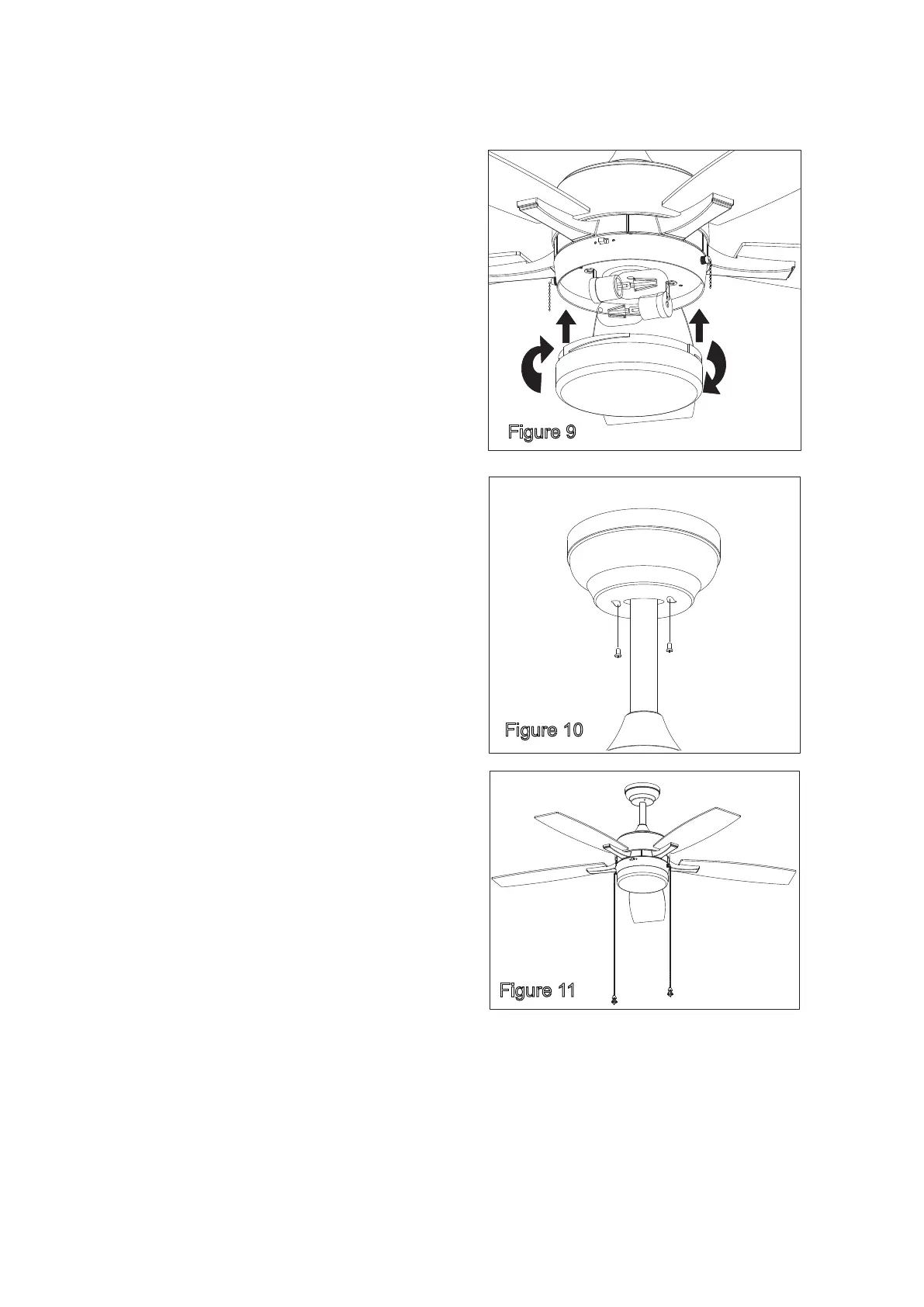

10. Mount the canopy by tightening the two screws.
(Figure 10)
Figure 10
9. Install the Facing Cover into the motor axis.
(Figure 9)
HOW T O INST ALL THE FAN-WITH LIGHT
Figure 9
11.Attach the to the Chain Bead And Pendant
ceiling fan.(Figure 11)
Figure 11
OPERATION
• The direction switch on the fan body controls air flow:
• Winter function: press the switch To the right for the blades to move warm air near the
ceiling around.
• Summer function: press the switch DOWN for blades to create breeze and improve air
circulation.
WARNING: Before using the direction switch, turn the fan off and make sure the fan has
stopped rotating in order to prevent possible injuries and motor damage.
Change direction by pushing the switch up or down when the fan is off.
DRAWSTRING SWITCH
Use the Drawstring switch to turn the fan on and off and to change speed.
