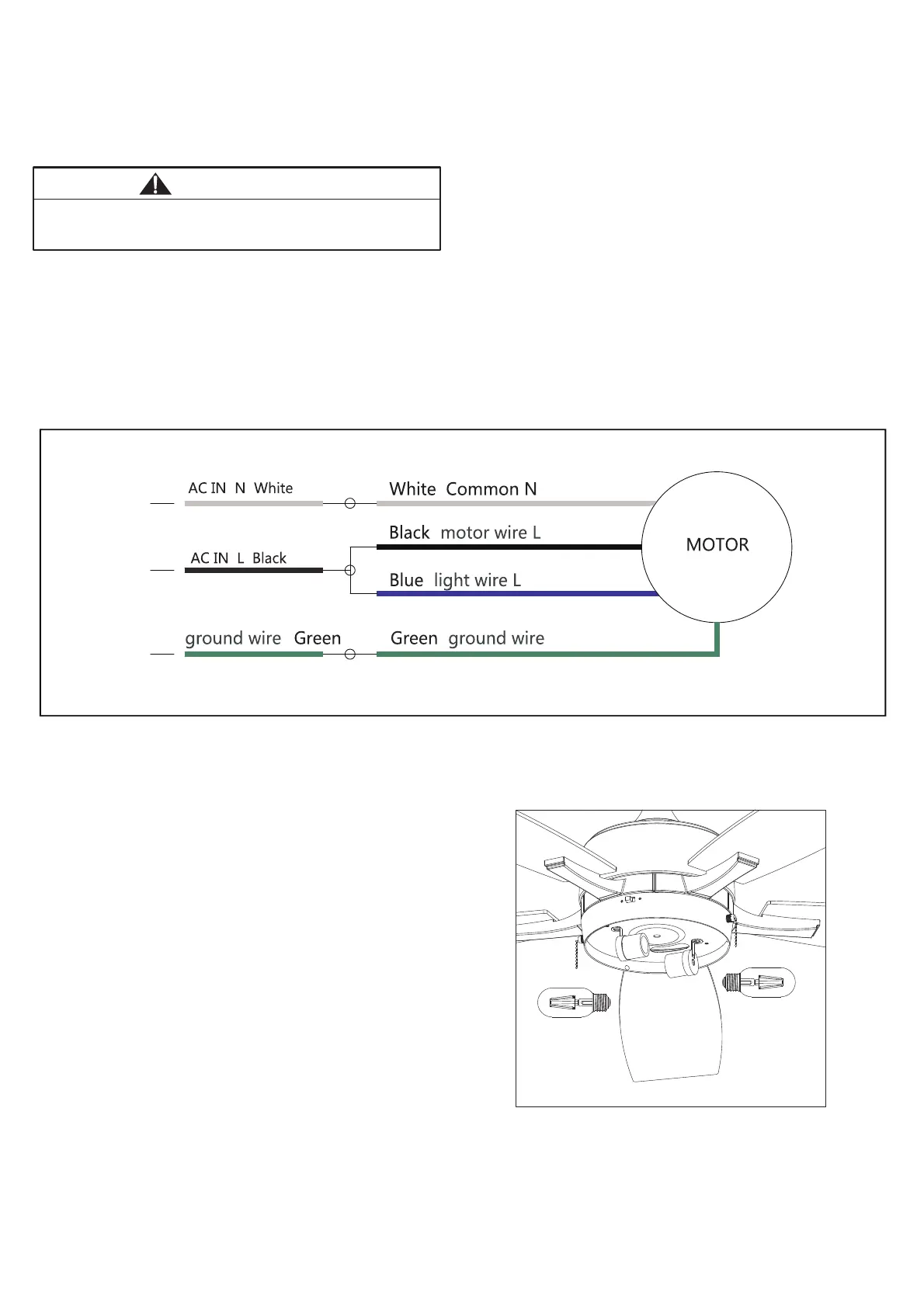

7.W iring instruction:
Connect 120V main power (dwelling) to the ceiling fan.
- Insert the AC IN N to the white N of the motor assembly.
- Insert the AC IN L to the black motor wire L of the motor assembly.
- Connect the green ground wire to the of the motor assembly. green ground wire
(Figure 7)
WARNING
To avoid possible electrica lshock, be sure electricity
is turned off at the main fuse box before wiring
Figure 7
5
HOW T O INST ALL THE FAN-WITH LIGHT
- Insert the AC IN L to the blue light wire L of the motor assembly.
mounted on lamps.
8.Insert-2-E27 LED T45 MAX.10W light bulb
Figure 8
(Figure 8)
