Taco SR503-EXP User Manual

77

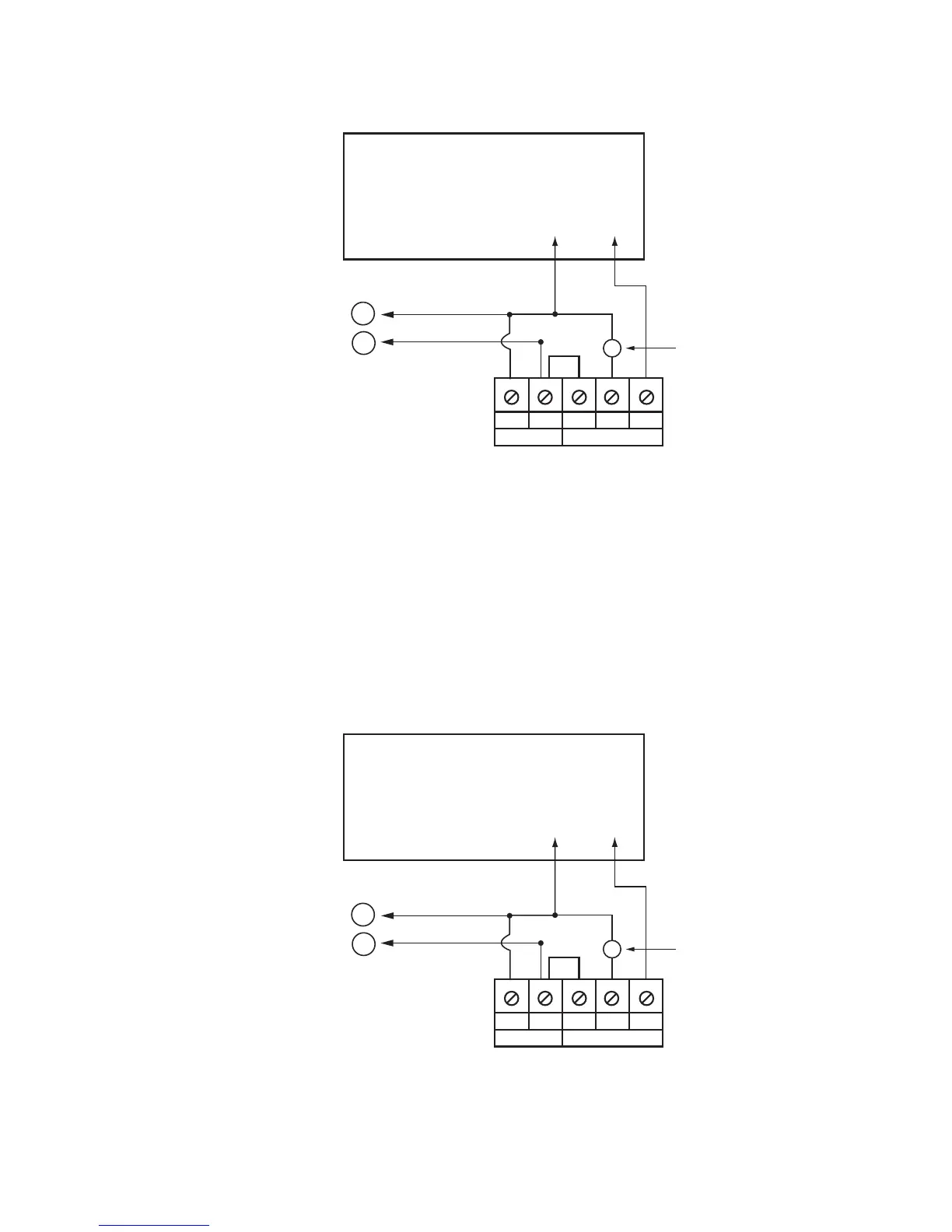

Wiring TACO LF Series 24VAC Low Water Cutoff to
Hydrolevel VXT-24 Water Feeder (Non-Display Model)
SAFGARD VXT-24
WATER FEEDER
24VAC
SUPPLY
50/60 Hz
H
N
NH
COM
NC NO
AC POWER
OUTPUT CONTACTS
BURNER
Set Safgard as desired.
WHITE BLACK
Remove jumper between H and COM if using
power source other than burner circuit
or when using mixed voltages.
Do not connect feeder to a manual reset LWCO.
Wiring TACO LF Series 120VAC Low Water Cutoff to
Hydrolevel VXT-120 Water Feeder (Non-Display Model)
SAFGARD VXT-120
WATER FEEDER
120VAC
SUPPLY
50/60 Hz
H
N
NH
COM
NC NO
AC POWER
OUTPUT CONTACTS
BURNER
Set Safgard as desired.
WHITE BLACK
24 VAC LWCO Using Burner Circuit Power Source
Remove jumper between H and COM if using
power source other than burner circuit
or when using mixed voltages.
Do not connect feeder to a manual reset LWCO.
120 VAC LWCO Using Burner Circuit Power Source
