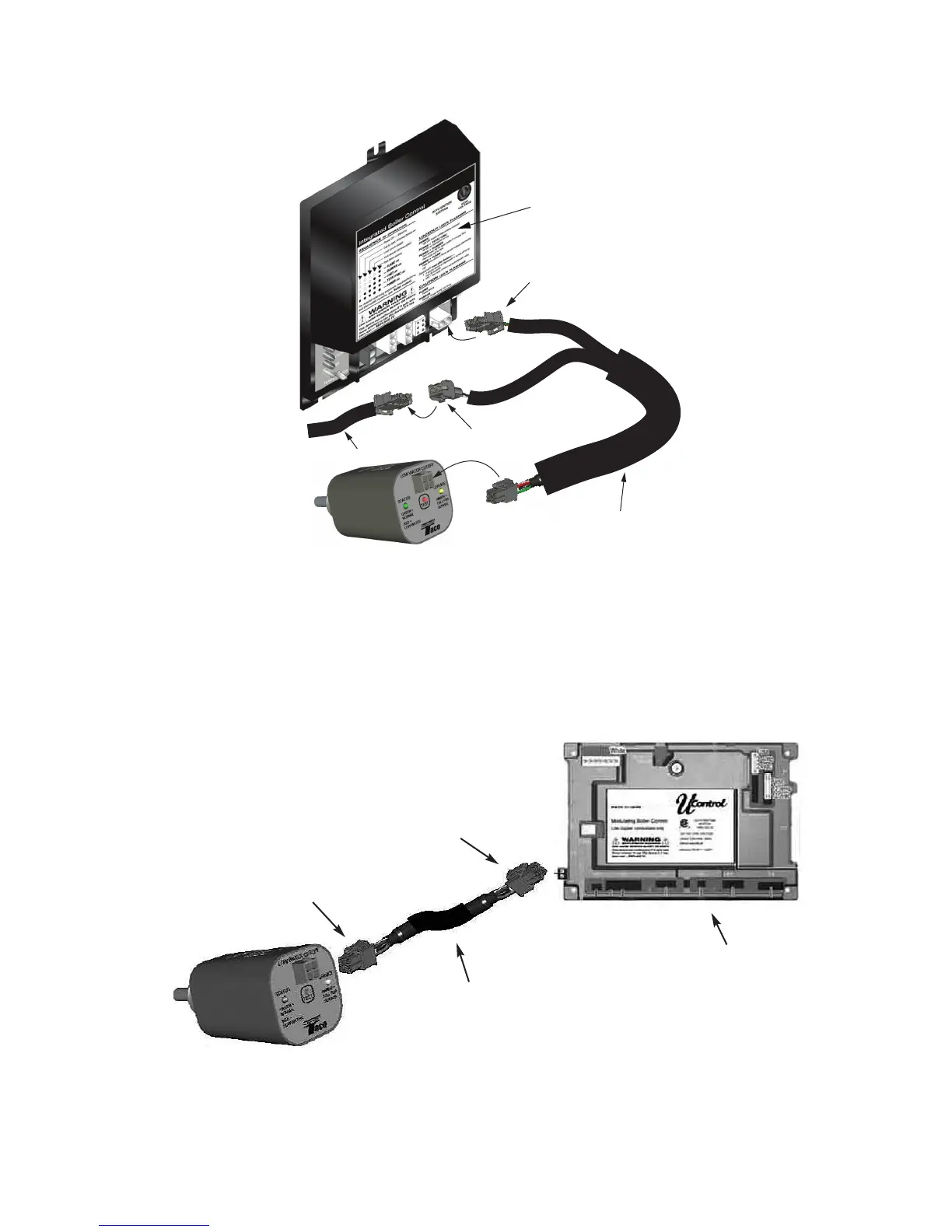

Wiring Boilers with a United Technologies Integrated Control Module and a Taco LTR0243U-1
Wiring Boilers with a United Technologies Ucontrol or other Integrated Control Modules
which accept a 4-pin harness and a Taco LTR0243L-1
4-PIN CONNECTOR (#2)
4-PIN CONNECTOR (#1)
WIRING HARNESS
INTEGRATED
CONTROL
MODULE
Wiring Instructions
1. Plug the 4-pin connector on the wiring harness (#1 as
shown) into the integrated control module.
2. Plug the 4-pin connector on the wiring harness (#2 as
shown) into the LTR.
