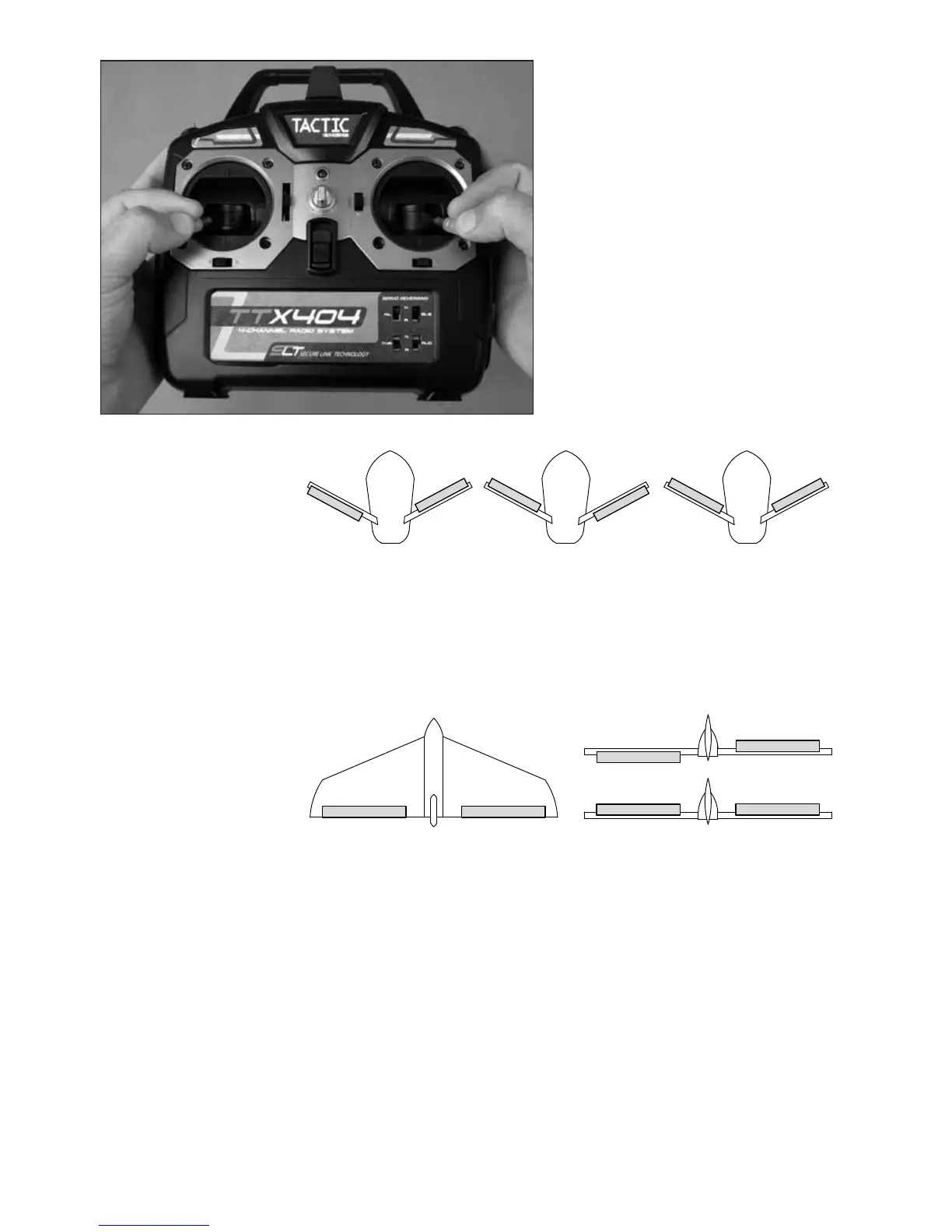

7
1. With the Tx power switch off,
move the right stick to the
bottom-right corner, and the left
stick to the bottom-left corner.
2. While holding the sticks in these
positions, turn the Tx power
switch ON.
3. The LED should fl ash, and if
accompanied by two audible
tones the V-tail mixing function will
now be turned ON. If you do not
wish to again change this setting,
proceed to the next section.
V-Tail Mixing
Left Rudder
ch2 ch4 ch2 ch4 ch2 ch4
Right Rudder Up Elevator
4. To cancel V-tail mixing and activate elevon mixing, turn off the transmitter and
repeat the above procedure. When the fl ashing LED is accompanied by three
audible tones the elevon mixing will be active.
Elevon Mixing
Elevator Function
Aileron
Function
5. To cancel all mixes, repeat this procedure again. When the fl ashing LED is
accompanied by a single audible tone, all mixes will be off.
Each time the mix setting is changed, be sure to check that all controls move in
the proper direction for the model. It may be necessary to change the setting of the
aileron, elevator, or rudder reversing switch to achieve the proper throw directions for
the model. If the elevator and aileron functions or the rudder and elevator functions
appear reversed at the control surfaces, it may be necessary to swap the channel
1 and 2 servo plug positions for the elevon mix or the channel 2 and 4 servo plug
positions for the V-tail mix.
