8

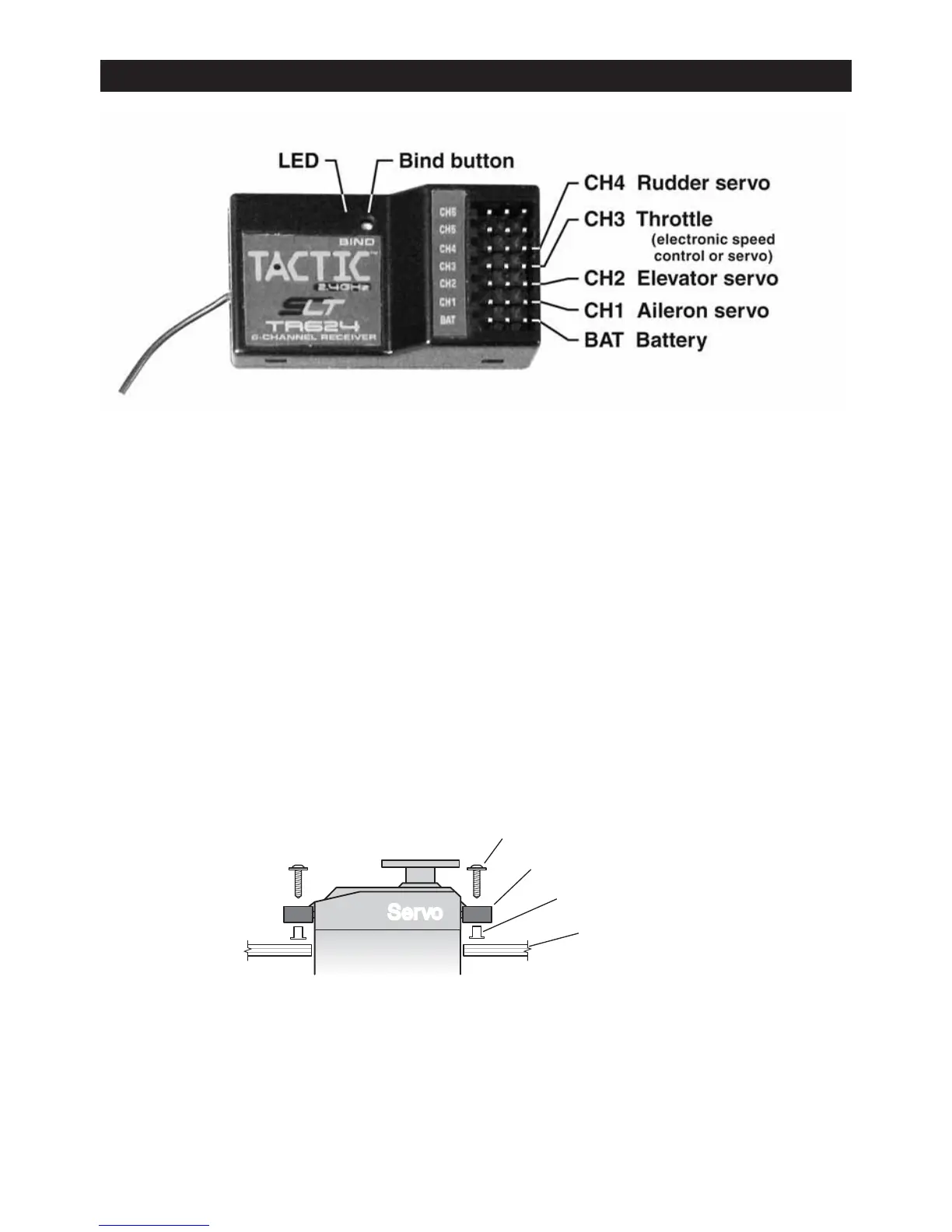

TR624 RECEIVER & FLIGHT EQUIPMENT INSTALLATION (if applicable)
RECEIVER (Rx)
Mount the receiver as specifi ed in the model’s instructions. It’s important to keep the
Rx as far away from the engine/motor, servos, and ESC and other electronic items
as possible. To prevent the Rx from becoming damaged, it might be acceptable
to mount it inside certain models using Velcro
®
. In certain cases, wrapping the Rx
with foam rubber can help to prevent damage from occurring due to vibration, but
foam rubber can prevent adequate airfl ow from passing over the receiver in warm
environments which might not be recommended. Additional Tactic TR624 receivers
can be purchased from your local retailer (part number TACL0624) to work with this
TTX404 transmitter.
SERVOS
Center the trims on the Tx. Mount the servos inside the model, and connect the
linkages to the servo using an appropriate length servo arm.
Rubber Grommet
Brass Eyelet
S
ervoServoServo
Screw
Servo Tray
All servos should be mounted as shown in the model’s instructions. Use rubber
grommets, screws and brass eyelets supplied (where applicable) when mounting
your servos (see above). Do NOT over-tighten the mounting screws, as the servos
should be able to move slightly to compensate for engine vibration. Use a servo
horn long enough to accommodate the entire range of movement for that particular
control. When mounting the servos, make sure the pushrods are not too loose or
