Tactix 326600 - Drawer and Slide Operation

OPERATION:

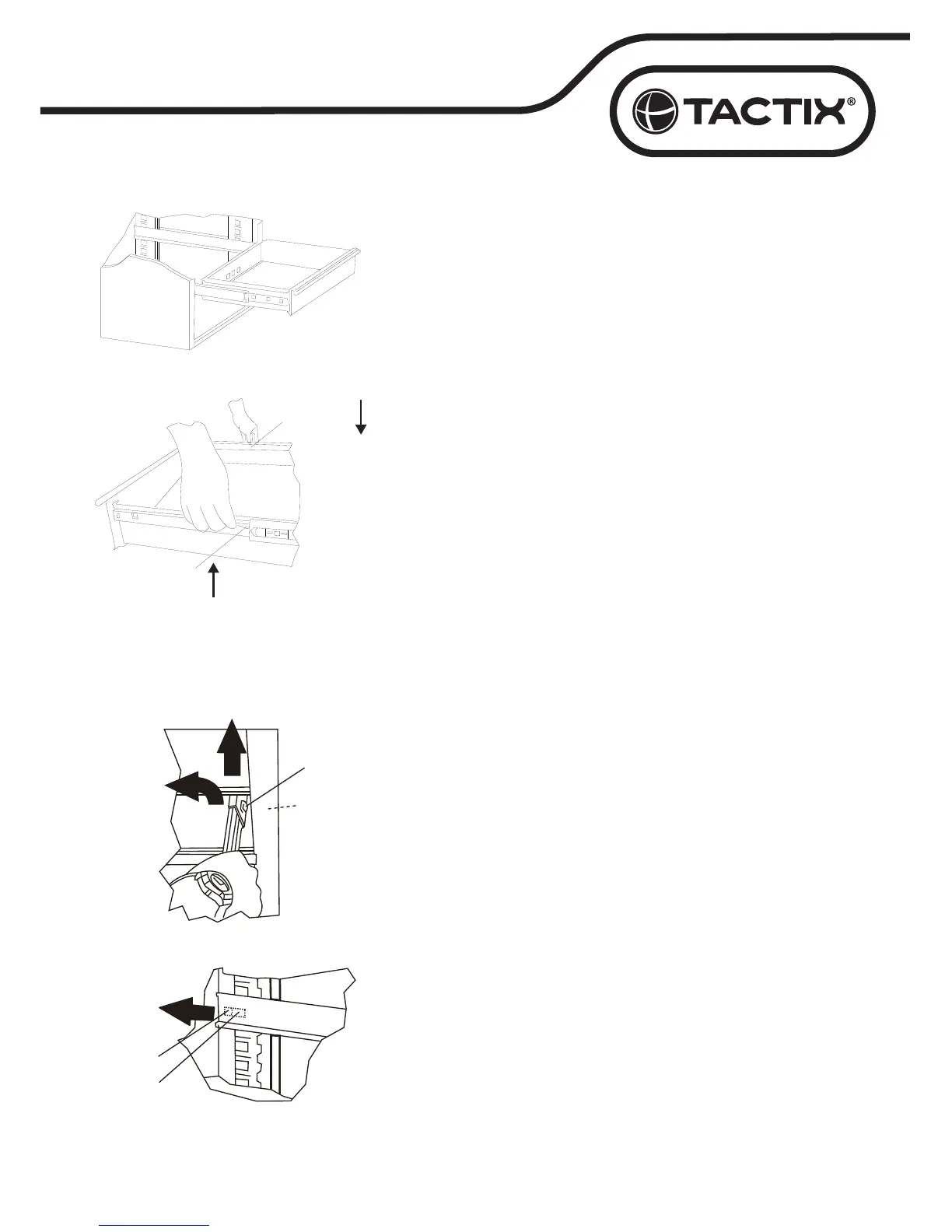

REMOVE THE DRAWER OF THE CHEST AND
CABINET.
Empty the drawer.
Fully extend drawer.
Left side: push the locking tab down and hold.
Right side: pull the locking tab up and hold.
Pull out the drawer to remove.
RE-INSTALL THE DRAWER OF THE CHEST AND
CABINET.
To re-install, extend the drawer slides and bearings in
the cabinet to the fully opened position. Align the
drawer slides with the extended cabinet slides and push
the drawer into the slides until it stops.
REMOVE THE SLIDE OF THE CHEST AND CABINET.
To remove the slide from the unit, rst remove the
drawer (follow the drawer removal procedure). Turn the
slide to left (right) and hold. Push the slide up to
disengage Tab “A” from Slot “A”. Push the slide to release
Tab “B” from Slot “B”. The slide may now be removed.
RE-INSTALL THE SLIDE OF THE CHEST AND CABINET.
To re-install the slide, place the slide in the appropriate
position, push the slide and engage Tab “B” into Slot “B”,
then push the slide down to lock Tab
“A” into Slot “A”.
Right lever
Left lever
Step 2
Step 1
Tab A
Slot A
Step 3
Slot B
Tab B
