4. Wire the Wireless Receiver
Caution!
Turn OFF the power
before wiring!
Always use the included strain
reliefs and position them on the
outer insulation layer of the cable.
Check the boiler manual before
Potential Free Relay
RTRT
230V Relay
LSL
Manufacturer Config.
Menu ID
Hot Water
control
Control Interface
Various
Various
The factory default configuration is Relay. If the Wireless Receiver is wired via Relay, step 6 (configuration) can be
skipped.
R01
R01
RT
L
RT
SL

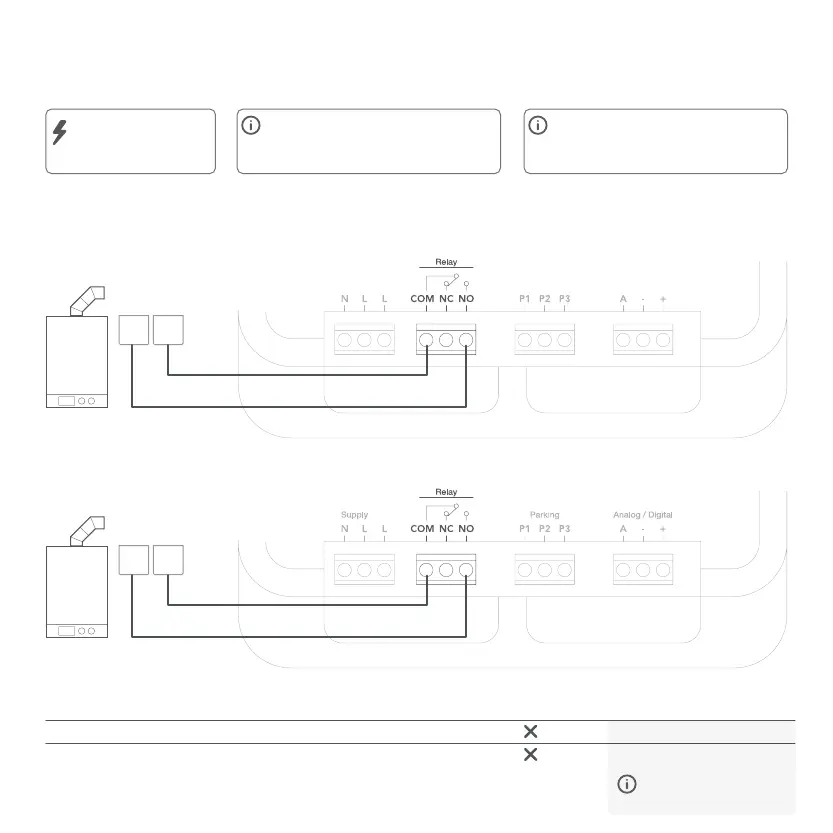

Potential Free Relay
230V Relay
tado˚ terminals
COM NO
Common terminal
labels on the boiler.
wiring. Identify the control interface and
check if it is supported by tado .
