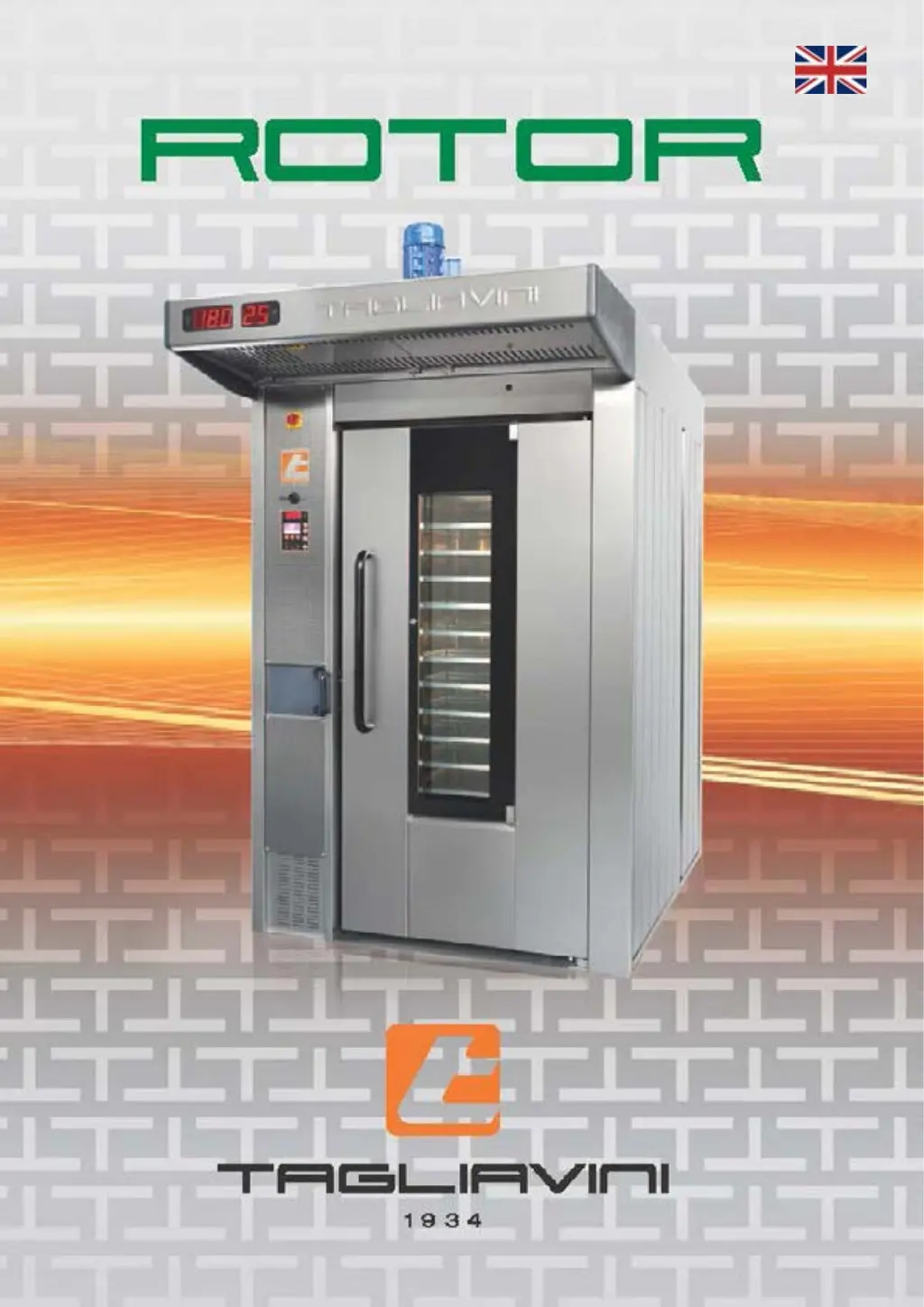

TAGLIAVINI ROTOR RT 68

Questions and Answers

N
njacobsonAug 11, 2025
How to fix uneven cooking in my TAGLIAVINI Oven?
- R
  Robert WatsonAug 11, 2025
  To address uneven cooking in your TAGLIAVINI oven, start by checking if the recirculating air fan is working and rotating in the correct direction. Next, verify that the carriage rotation geared motor is operational and rotating as indicated by the arrow. Ensure the outgoing air louvres comply with the dimensions specified. Lastly, inspect the temperature probe for any faults and replace it if necessary.
B
beverly70Aug 15, 2025
What causes water on the platform of my TAGLIAVINI ROTOR RT 68 and how to fix it?
- R
  Robert CooperAug 16, 2025
  If you find water on the platform of your TAGLIAVINI oven, it could be due to several reasons. First, check for a clogged non-vaporized water pipe drain and clean or replace the pipes. Next, inspect the condensate collection tray for blockages and clean the tray and its drain thoroughly. If the condensate collection tray is pierced, it will need to be replaced. Finally, examine the hydraulic system for leaks in the fittings, hose clamps, pipes, and solenoid valves, and replace any defective parts.
W
Wendy ReedAug 20, 2025
Why does my TAGLIAVINI ROTOR RT 68 steam have traces of red rust?
- R
  richardchenAug 20, 2025
  The presence of red rust in your TAGLIAVINI oven's steam could be due to oxides in the water. In this case, install a water softener upstream of the oven's hydraulic system. It may also be caused by aggressive, acidic water. Check the steamer's supply water quality, as uncontrolled water softeners can lead to acidic water. Eliminate water acidity to resolve this issue.
W
William RodriguezAug 25, 2025
Why does the vapour aspirator not work in my TAGLIAVINI Oven?
- R
  Randy ElliottAug 25, 2025
  If the vapor aspirator in your TAGLIAVINI oven isn't working, check if the vapor aspirator circuit breaker has been tampered with or is faulty. If faulty, replace it; if tampered with, determine the cause before resetting. Verify if the vapor aspirator contactor receives input signals, and if not, replace it. If the vapor aspirator electric motor has failed, replace it. Finally, check the continuity of all electrical connections.
A
Abigail BuckleyAug 29, 2025
How to troubleshoot oven lighting failure in TAGLIAVINI Oven?
- M
  Matthew ClayAug 29, 2025
  To troubleshoot a lighting failure in your TAGLIAVINI oven: * Replace any burned-out lamps. * If the lamps aren't the issue, the transformer may have failed and need replacement. * Check for interrupted electrical connections and light power supply cables. * A faulty control unit or power unit could also be the cause; check their operation and replace if necessary.
H
Heather WolfNov 2, 2025
Why is my TAGLIAVINI ROTOR RT 68 Oven not getting hot enough?
- C
  calebowensNov 2, 2025
  There are several possible reasons why your TAGLIAVINI oven isn't heating properly. It could be due to the main switch or residual current device not being properly plugged in, or the power supply cables not connected to the oven. Check the main protection fuse continuity and replace if faulty. Also, one or more transformer protection fuses might be interrupted; in this case, check the cause and replace the blown fuses, or reset the tripped circuit breaker. Ensure the circuit breakers are in the operational position ('I'). The power supply unit might not be working, so check the connections and cables, replacing them or the card if needed. A control unit fuse could be interrupted, requiring replacement. The control unit may be set to a programmed start-up; disable this setting. Alarm signa...
M
Michael SchultzNov 6, 2025
What to do if my TAGLIAVINI Oven does not emit steam?
- L
  leslierogersNov 6, 2025
  If your TAGLIAVINI oven isn't emitting steam, first check if the steamer operation has been disabled from the control panel. Ensure there is water reaching the steamer's solenoid valves and that the water valve is open. Inspect the filter on the water manifold for dirt and clean it if necessary. Verify the solenoid valve's operation and replace it if faulty. Check the steamer for limestone deposits and clean or replace it if needed. Examine the steamer's spray tube for clogs and clean it. Also, clean the steamer's non-vaporized water drain. Make sure the steam drain valve is closed when dispersing steam and check its functioning. Check the control unit and power unit for correct operation and replace if faulty. Finally, determine the cause and replace the 220Vac electric system's protectio...
И
ИванNov 15, 2025
Здравствуйте Подскажите выдает ошибку locked rack
- И
  ИванNov 17, 2025
  Все не актуально сам справился, и вам не скажу тогда что было.

Summary

General Documentation and Safety

Furnace Identification Plate

Details on the oven's identification plate.

Declaration CE of Conformity

Information regarding the CE declaration of conformity.

Equipment Label and Markings

Technical data and markings displayed on the serial number plate.

General Safety Warnings and Precautions

Important safety warnings and general precautions for oven use.

Intended Use and Regulations

Specifies the intended purpose, limitations, and general safety rules.

Transport Procedures

Instructions for transporting the oven (disassembled and assembled).

Furnace Decommissioning

Procedures for decommissioning the oven and prolonged inactivity.

Technical Characteristics and Installation

Oven Description

Detailed description of the oven's components and functionality.

Installation Standards

Requirements for electrical, water, fume exhaust, and ventilation connections.

Fuel Connection

Instructions and warnings for connecting the fuel supply.

Oven Identification and Assembly

Oven General Information

General technical characteristics and data for the oven.

Oven Model Technical Data

Detailed technical specifications and dimensions for different oven models.

Carriage Dimensions and Characteristics

Dimensions and characteristics of the oven carriage.

Oven Assembly Instructions

Step-by-step instructions for assembling the oven.

Oven Connection and Start-up

Connection Norms and Directives

Compliance with norms, regulations, and directives for oven connection.

Oven Connection Instructions

Procedures for connecting the oven to various utilities.

First Start-up Procedures

Steps for initial start-up or re-ignition after a long period of inactivity.

Oven Utilization and Shut-down

Daily power-up, component use, and safe shut-down procedures.

Routine Maintenance Procedures

Basic Safety Standards for Maintenance

Fundamental safety rules for performing maintenance.

Cleaning Procedures

Guidelines for cleaning various oven components and systems.

Carriage Lock-down Procedures

Procedures for releasing a locked carriage due to power or other issues.

Steamer Failure Troubleshooting

Troubleshooting and cleaning for steamer water supply issues.

Lamp Replacement

Instructions for replacing interior lighting lamps.

Electric Panel Access

How to access the main electrical panel safely.

Motorization Group Friction Adjustment

Adjusting the friction in the motorization group.

Security Thermostat Adjustment

Adjusting and resetting the safety thermostat.

Safety Information and Warnings

Safety Signs and Pictograms

Explanation of various safety signs and pictograms on the oven.

Thermal Hazards

Pictograms indicating thermal hazards and necessary precautions.

Personal Protective Equipment

Importance and use of heat-resistant gloves and appropriate clothing.

Residual Hazards Overview

Overview of residual hazards like burns, noise, and projections.

Troubleshooting Oven Issues

Heating and Cooking Problems

Troubleshooting common problems like no heat, slow heating, and uneven cooking.

Steam Emission Problems

Diagnosing and resolving issues with steam emission and red rust.

Aspirator and Fan Malfunctions

Troubleshooting vapour aspirator and fan noise, vibrations, or non-operation.

Other Component Failures

Addressing oven lighting failures, water leaks, and other minor issues.

Components and Adjustments

Motor Unit Hook;Platform Display

Diagram and list of components for the motor unit hook/platform.

Motor Unit Elevator Display

Exploded view of the motor unit elevator components.

Motorization Component List

Detailed list of parts for the motorization system.

Micro Door and Seals Components

Components related to the micro door and its seals.

Optional Fumes Extraction Hood

Components for the optional fumes extraction hood display.

Optional Water Connection Components

Optional components for water connection and flow measurement.

Door Lock Components

Components and assembly of the door locking mechanism.

Optional Steam Exhaust Valve

Components of the optional steam exhaust automatic valve.

Air Slot Adjustment Procedures

Procedures for adjusting air slots in different oven models.

Control Panel Operations

SMART Control Panel Description

Detailed description of the SMART control panel functions and buttons.

Manual and Automatic Operation

Operating the oven in manual mode and using programmed recipes for automatic operation.

Settings and Configuration

Instructions for setting date/time, programmed ignition, steam flow, and level 1 setup.

Controller Alarm List

List of controller alarms and their causes/solutions for heating, communication, and other issues.

Data Transfer and Software Updates

Using the USB slot and procedures to update the control unit software.

Spare Parts and Connections

How to Order Spare Parts

Form and guidelines for requesting spare parts.

SMART Unit Connection Diagrams

Diagrams showing how SMART units are connected.

IBAKE Unit Connection Diagrams

Diagrams illustrating the connection of IBAKE units.

Wiring Diagram Information

Standard 400 V 3-Phase Wiring Diagram

General wiring diagram standard for 400V 3-phase ovens.
