Attach Fast Release
Dropouts
Step Two
A

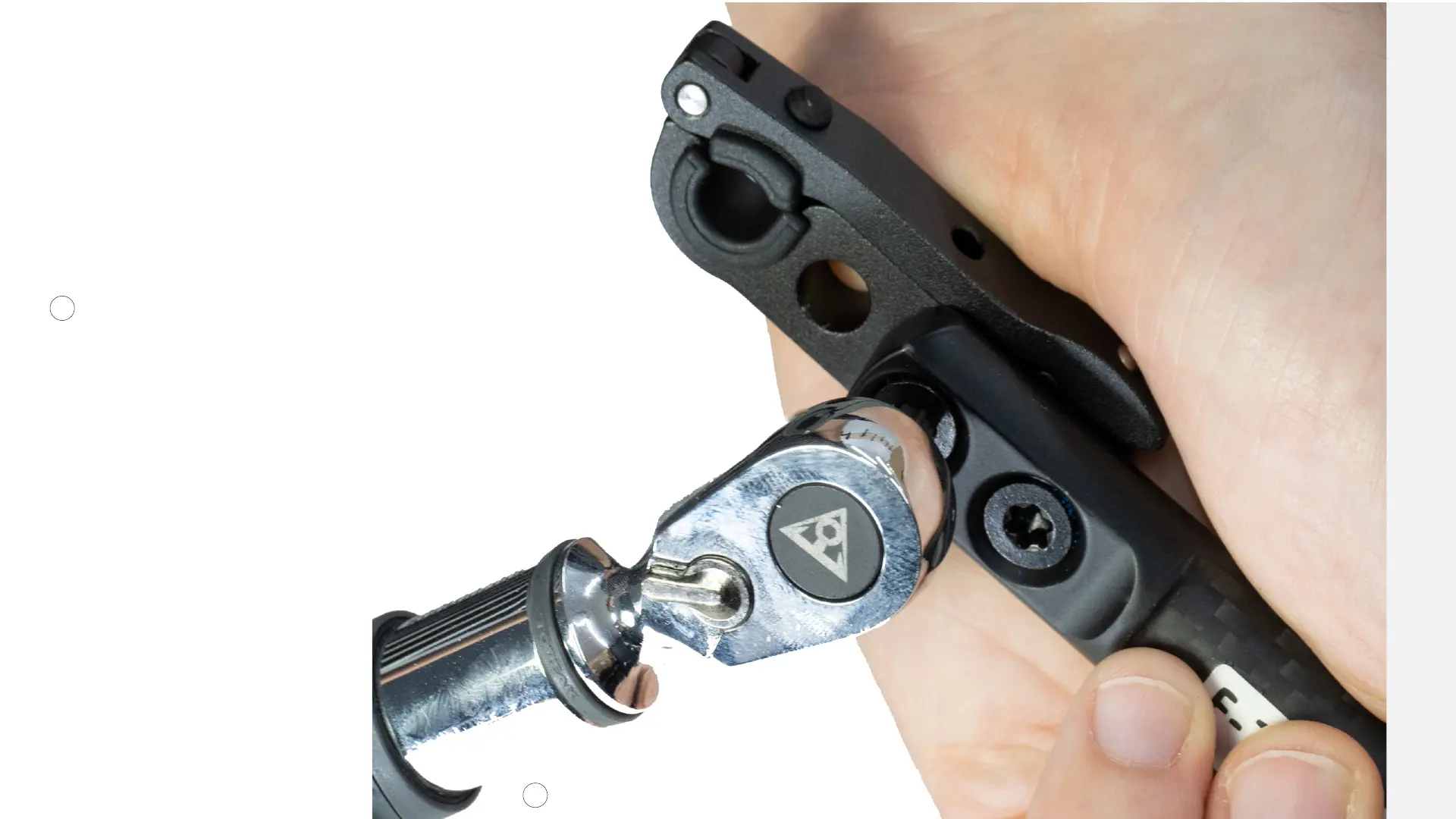

Attach Dropouts to the
Arch using the
countersunk screws
included.
Tighten screws in turn to
5Nm
A
