TAILWIND iQ3 USER MANUAL
STEP 4 - RUNNING THE TAILWIND DOOR SENSOR WIRE
USE THE INCLUDED WIRE TIES AND CLIPS TO SECURE
THE TAILWIND WIRE IN PLACE
IF THERE IS AN EXISTING WIRING HARNESS RUNNING BACK TO THE DOOR
OPENER UNIT ZIP TIE THE TAILWIND WIRE TO IT
2. IF NOT, SECURE THE TAILWIND WIRE IN PLACE BY ADHERING THE WIRE CLIPS TO
THE BACK SIDE OF THE RAIL. USE THE PROVIDED ALCOHOL WIPES TO CLEAN THE
RAIL WHERE THE CLIPS ARE GOING TO BE MOUNTED
3.
2 FOR DOOR 2, AND PORT 3 FOR DOOR 3
IMPORTANT: SECURE ALL WIRING ONLY IN LOCATIONS WHERE THE GARAGE DOOR
OR OTHER MOVING PARTS WILL NOT MAKE CONTACT DURING NORMAL OPENING
AND CLOSING

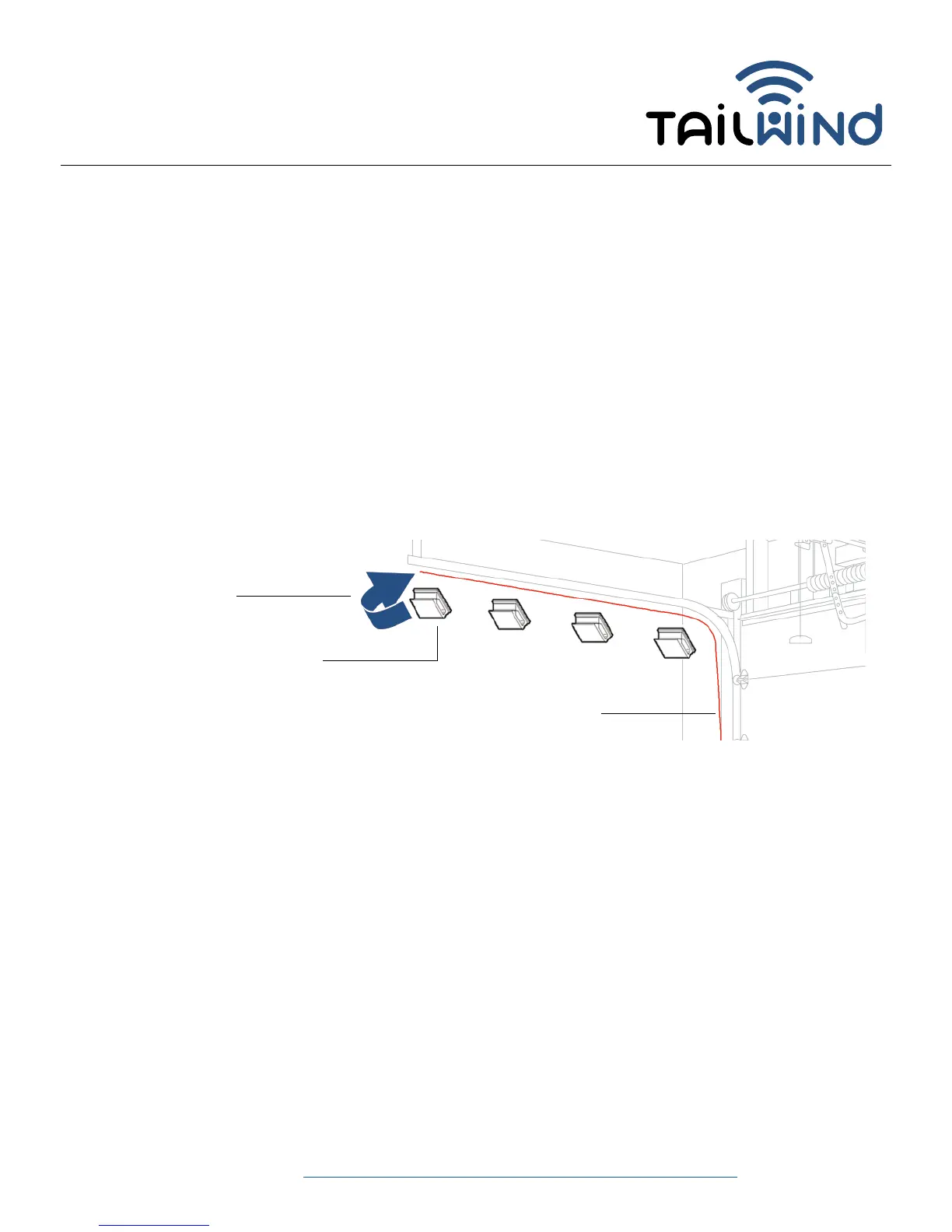

WIRE CLIPS
BACK OF RAIL
TAILWIND DOOR SENSOR WIRE
